Запчасти Case IH STEIGER 500 (10.414.AC[02]) - COOLING SYSTEM VISTRONIC FAN DRIVE - STEIGER 400-450 (10) - ENGINE

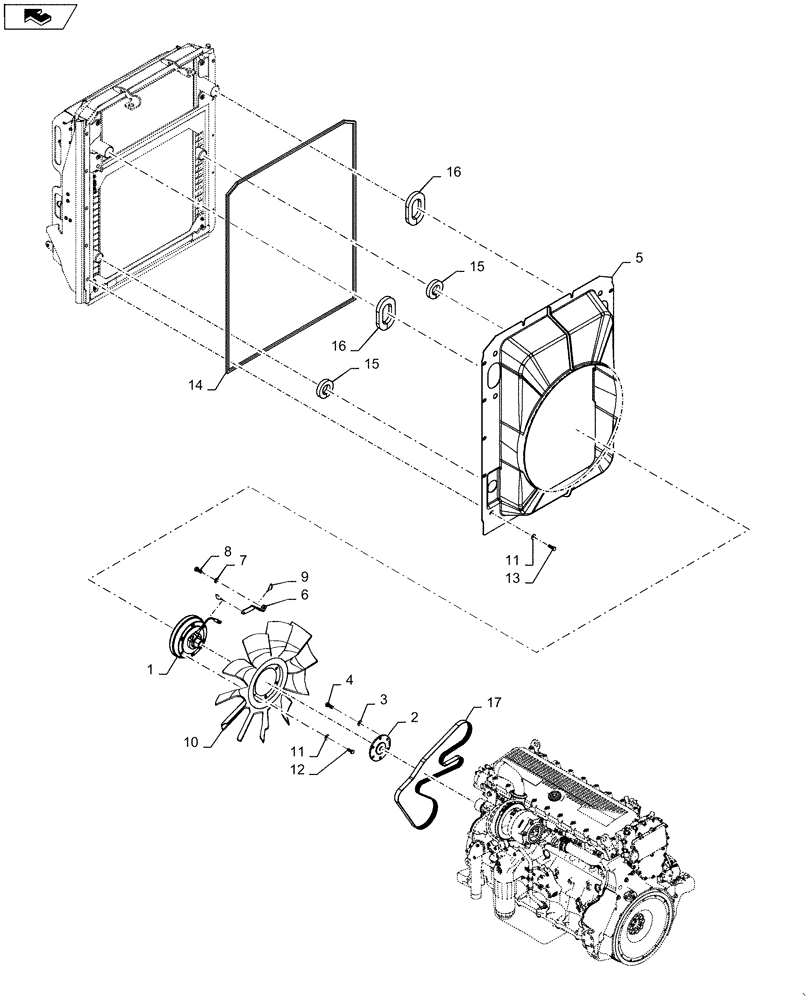

Схема запчастей Case IH STEIGER 500 - (10.414.AC[02]) - COOLING SYSTEM VISTRONIC FAN DRIVE - STEIGER 400-450 (10) - ENGINE
10
12
9
6
15
16
1
11
11
16
5
7
17
3
home
14
15
8
4
2
13

Артикул

Название

Примечание

Количество

1

84559831

DRIVE

Electronic Viscous fan

1шт.

2

84235327

SHAFT

Viscous Fan Driver

1шт.

3

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

6шт.

4

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

6шт.

5

84379542

SHROUD

13L RC Fan

1шт.

6

84495868

SUPPORT

Wire

1шт.

7

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

1шт.

8

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

1шт.

9

86566989

CABLE TIE,208mm L

2шт.

10

84258166

FAN,11 Blades, 813mm OD

FAN

1шт.

11

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

16шт.

12

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

6шт.

13

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

10шт.

14

84221537

RUBBER SEAL,4800mm L

Seal, Foam, Shroud

1шт.

15

84221540

SEAL

Seal, Foam, Radiator Outlet

2шт.

16

84379105

GASKET

Foam

2шт.

17

84406423

V-BELT

Poly - V

1шт.

Выбрано товаров: 17
