(88.090.08) - DIA KIT, ADDITIONAL PRODUCTS, - R/H WINDOW MONITOR MOUNT BAR

Запчасти Case IH STEIGER 500 (88.090.08) - DIA KIT, ADDITIONAL PRODUCTS, - R/H WINDOW MONITOR MOUNT BAR (88) - ACCESSORIES

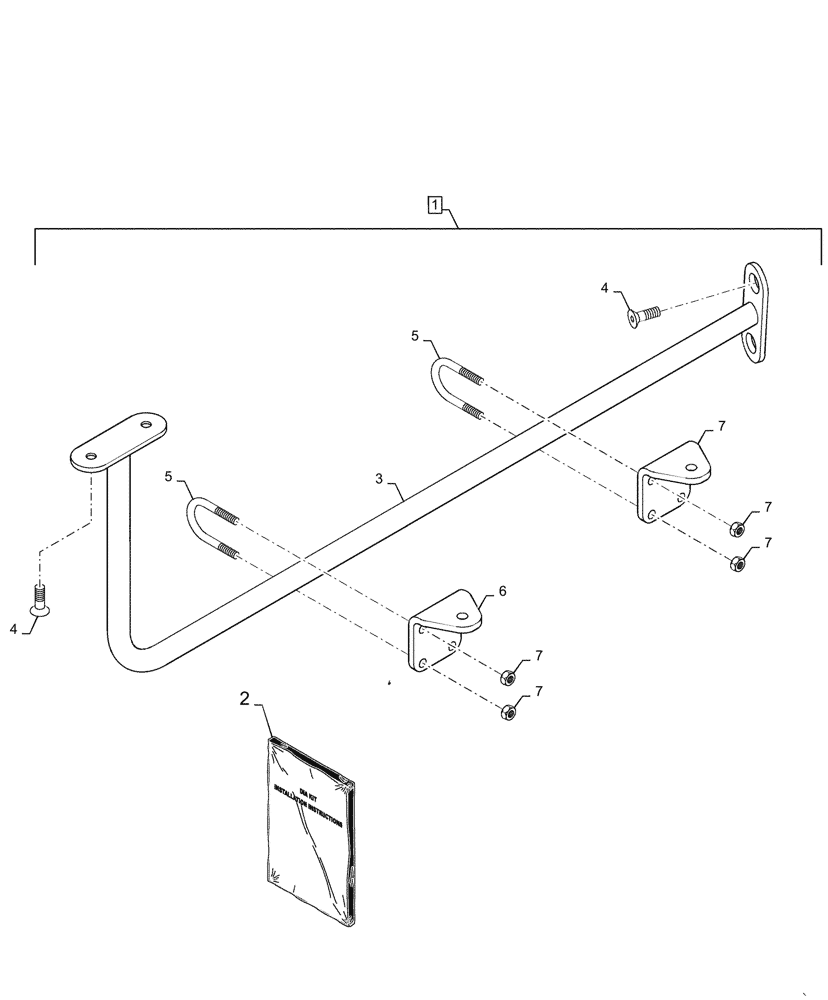

Схема запчастей Case IH STEIGER 500 - (88.090.08) - DIA KIT, ADDITIONAL PRODUCTS, - R/H WINDOW MONITOR MOUNT BAR (88) - ACCESSORIES
7
5
5
1
7
6
7
4
4
7
7
3
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84151011

KIT

Monitor Mount Bar, R/H Window

1шт.

2

84151015

INSTRUCTION

Installation

1шт.

3

84143874

BAR

Monitor Mounting

4шт.

4

906035R1

HEX SOC SCREW,Flat Hd, CSK, M8 x 25mm, Cl 10.9

4шт.

5

87526197

U-BOLT,1/4" - 20 x 1", Round, 1-1/8" W, 2" L

2шт.

6

87530660

BRACKET

Monitor Mount

8шт.

7

425-104

NUT,1/4"-20, Cl 5

1шт.
