(88.048.01) - DIA KIT, ADDITIONAL PRODUCTS - DRIVE WHEEL SCRAPER KIT

Запчасти Case IH STEIGER 500 (88.048.01) - DIA KIT, ADDITIONAL PRODUCTS - DRIVE WHEEL SCRAPER KIT (88) - ACCESSORIES

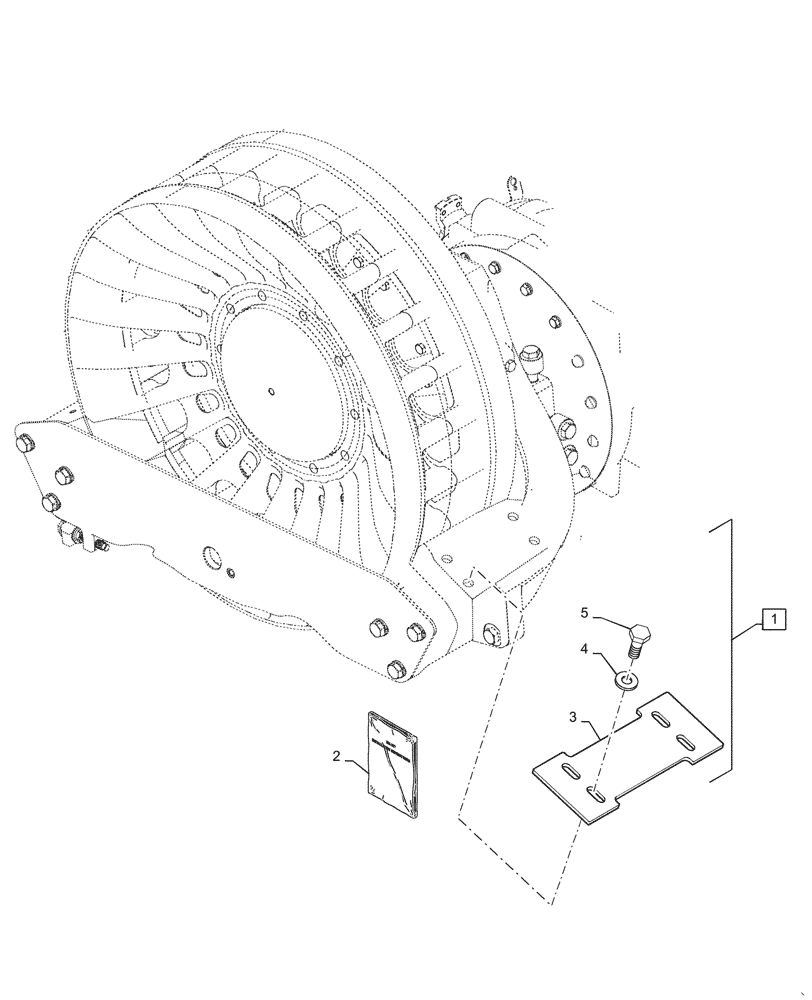

Схема запчастей Case IH STEIGER 500 - (88.048.01) - DIA KIT, ADDITIONAL PRODUCTS - DRIVE WHEEL SCRAPER KIT (88) - ACCESSORIES
2
1
3
5
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84600025

SERVICE KIT

DIA Kit - Drive Wheel Scraper - Incl 2 - 5

1шт.

2

84600538

INSTRUCTION

Installation

1шт.

3

84561886

PLATE

Drivewheel

4шт.

4

896-15016

WASHER,17.5mm ID x 34mm OD x 5mm Thk

8шт.

5

627-16035

BOLT,Hex, M16 x 2 x 35mm, Cl 10.9, Full Thd

8шт.
