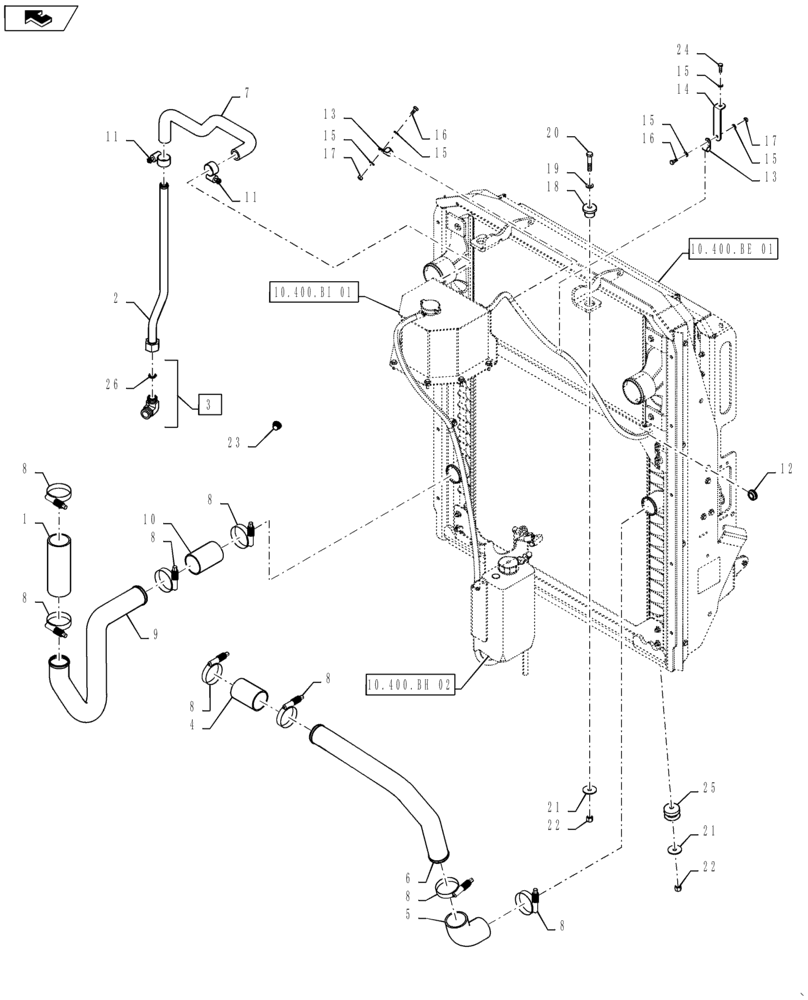

Запчасти Case IH STEIGER 500 (10.400.AY[02]) - COOLING SYSTEM - STEIGER 400-500 (10) - ENGINE

1

84565800

HOSE

Jumper, 63.5mm ID x 200mm L

1шт.

2

84212064

TUBE

Surge Tank Return

1шт.

3

47434575

FITTING,1-7/16 - 12 ORFS x M30 x 1.5

Elbow, 90 Degree - Incl 26

1шт.

4

84565782

FLEXIBLE HOSE,62mm ID x 100mm L

Cooler

1шт.

5

87745059

HOSE

Lower Radiator

1шт.

6

84293688

TUBE

Upper Radiator

1шт.

7

84212066

HOSE

Formed Rubber

1шт.

8

L115548

CLAMP,57.15mm - 79.38mm

Constant Torque

1шт.

9

84315495

TUBE

Lower Radiator

1шт.

10

84421039

RADIATOR HOSE

Cooler

1шт.

11

214-1520

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm, W/ Liner

2шт.

12

361191A1

GROMMET

ISO

1шт.

13

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

1шт.

14

84306773

BRACKET, SUPPORTING

Front Fuel Line Support

1шт.

15

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

16

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

3шт.

17

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

18

L13142

BUSHING

Engine Mount

2шт.

19

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

4шт.

20

827-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

2шт.

21

435433A1

WASHER,13.5mm ID x 44.5mm OD x 3mm Thick

13.5 x 44.5 x 3 CST ZND

4шт.

22

832-10412

NUT,M12 x 1.75, Cl 8

1шт.

23

87308399

PLUG

1/2 BSPP

1шт.

24

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

1шт.

25

435465A1

RUBBER MOUNTING

Isolator

2шт.

26

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Incl in 3

1шт.
