Запчасти Case IH STEIGER 500 (88.035.11) - DIA KIT, ADDITIONAL PRODUCTS - HYD. AUX. VALVE KIT, ADDITIONAL EH REMOTE (88) - ACCESSORIES

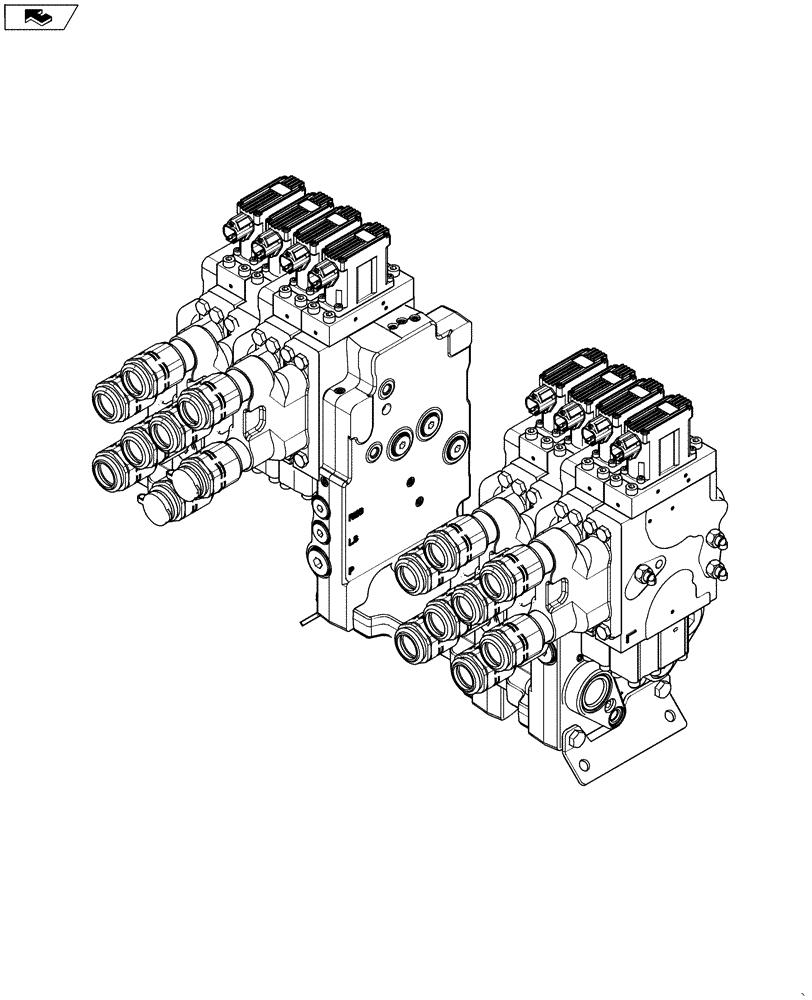

Схема запчастей Case IH STEIGER 500 - (88.035.11) - DIA KIT, ADDITIONAL PRODUCTS - HYD. AUX. VALVE KIT, ADDITIONAL EH REMOTE (88) - ACCESSORIES
home

Артикул

Название

Примечание

Количество

1

84317560

KIT

DIA Kit, Hyd. Aux. Valve - Incl 2 - 17

1шт.

2

84317561

INSTRUCTION

Installation

1шт.

3

87496186

HYD VALVE SECTION

Main Aux. Valve

1шт.

3

47434186R

REMAN-HYD VALVE

Reman For New PN 87496186

1шт.

3

47434186C

CORE-VALVE HYD

Return Number

1шт.

4

87713489

THREADED TIE-ROD

M12 x 1.75 x 300mm L

3шт.

5

87664023

STUD,M12 x 1.75 x 230mm

M12 x 1.75 x 230mm L

3шт.

6

87713488

THREADED TIE-ROD

M12 x 1.75 x 240mm L

3шт.

7

87604618

STUD,M12 x 1.75 x 185mm

M12 x 1.75 x 185mm L

3шт.

8

87604617

STUD,M12 x 1.75 x 235mm L

M12 x 1.75 x 235mm L

3шт.

9

435375A1

VALVE

1шт.

10

84203873

STUD

M12 x 1.75 x 245mm L

2шт.

11

87635379

O-RING,2.62mm Thk x 9.19mm ID, -110, 80 Duro

8шт.

12

87635382

O-RING,2.62mm Thk x 20.29mm ID, -117, 80 Duro

9шт.

13

87635376

O-RING,2.62mm Thk x 3.63mm ID, -105, 80 Duro

6шт.

14

628-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

4шт.

15

1289481C1

ELBOW,1/8" NPT x 1/4" Hose Barb

90 DEG, 1/8 NPT Barbed

1шт.

16

217-429

PLUG,Hex Soc, 1/8" - 27 NPTF

1шт.

17

320374A1

HOSE

925 mm ( 36 7/16 in.), Cut To Length From 31-1182 Bulk Hose

1шт.

Выбрано товаров: 19
