Запчасти Case IH STEIGER 500 (55.404.BM[03]) - WARNING LIGHT - EURO FRONT (55) - ELECTRICAL SYSTEMS

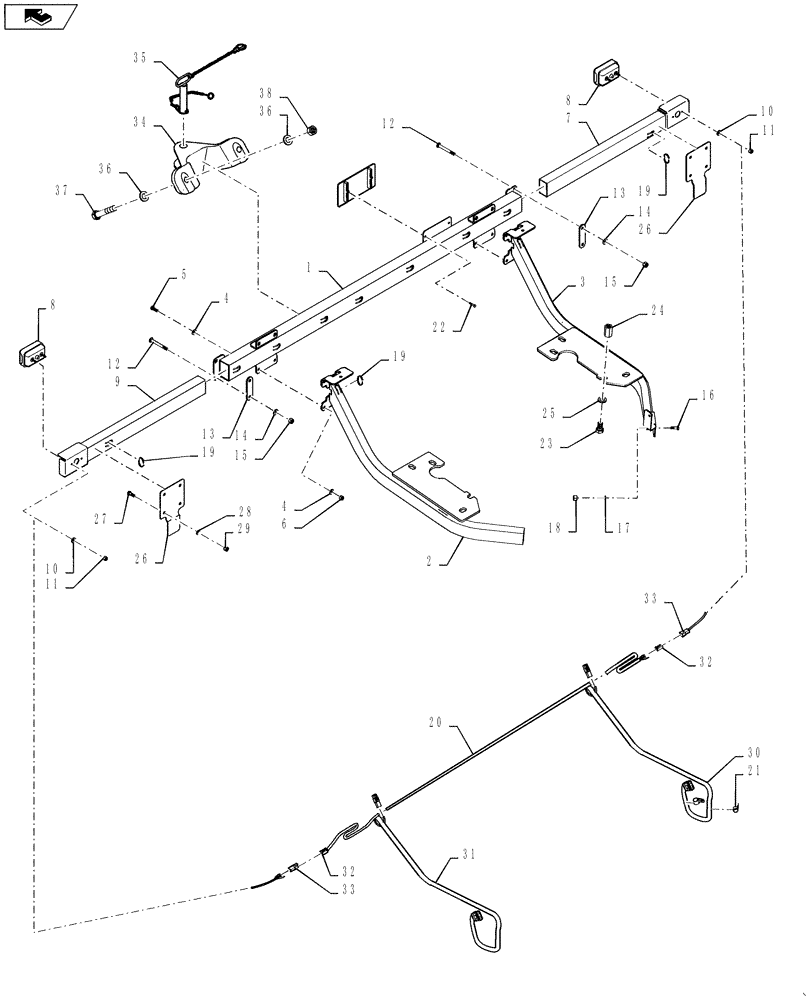

Схема запчастей Case IH STEIGER 500 - (55.404.BM[03]) - WARNING LIGHT - EURO FRONT (55) - ELECTRICAL SYSTEMS
20
36
36
14
home
19
28
26
10
38
34
2
27
19
8
29
14
12
32
23
1
6
24
7
12
16
8
26
11
21
32
11
17
33
35
31
19
25
5
22
10
4
15
37
3
13
9
15
13
30
33
18
4

Артикул

Название

Примечание

Количество

1

84353367

WARNING LIGHT

FRONT 4WD WELD

1шт.

2

84353371

SUPPORT

LH FRONT WELD

1шт.

3

84353373

SUPPORT

SUPPORT, RH FRONT WELD

1шт.

4

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

16шт.

5

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

8шт.

6

832-10410

NUT,M10 x 1.5, Cl 8

8шт.

7

84261893

TUBE

RH WELD

1шт.

8

87620727

WORK LAMP

FRONT TURN/POSITION

2шт.

9

84261892

TUBE

LH WELD

1шт.

10

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

4шт.

11

824-1405

NUT,M5, Cl 5

4шт.

12

811-10100

CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 100mm, Cl 8.8

4шт.

13

84186586

BASE PLATE

LIGHTBAR CLAMP

2шт.

14

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

4шт.

15

832-10412

NUT,M12 x 1.75, Cl 8

4шт.

16

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

1шт.

17

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

18

832-10408

NUT,M8 x 1.25, Cl 8.8

1шт.

19

435437A1

CABLE TIE,3/16" x 7 1/4"

11шт.

20

84367630

WIRE HARNESS

HARNESS, FRONT MARKER LIGHTS EURO

1шт.

21

515-22190

CLAMP,3/4", Insul, 5/16" Bolt

1шт.

22

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

2шт.

23

73172048

BOLT,Hex, M20 x 2.5 x 35mm, Cl 8.8, Full Thd

4шт.

24

84185977

SPACER

Stand Off

4шт.

25

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

4шт.

26

84607381

PLATE

Sign

2шт.

27

840-1516

SCREW,Pan, M5 x 16mm, Cl 4.8

8шт.

28

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

10шт.

29

832-10405

NUT,M5 x .8, Cl 8

9шт.

30

84367630

WIRE HARNESS

Harness, Front Marker Lights, EURO

1шт.

31

87698254

ELEC CONNECTOR

Connector, 10 Pin , C300F - to frnt. Frame Harness

1шт.

32

239451A1

MULTIPOLE CONNECTOR,Female, 4 Pin

4 Pin, C302 & C301 - Lft. & Rt. Marker Light

2шт.

33

225326C1

ELEC CONNECTOR,Male, 4 Pin

4 Pin, C303 & C304 - Left & Right Headlamp - EURO

2шт.

34

84180755

MOUNT

Tow Hook

1шт.

35

82012484

PIN,31.5mm OD x 197mm L

With Chain

1шт.

36

896-11024

WASHER,26mm ID x 44mm OD x 5mm Thk

4шт.

37

827-24140

BOLT,Hex, M24 x 3 x 140mm, Cl 10.9

2шт.

38

829-1424

NUT,M24, Cl 10

2шт.

Выбрано товаров: 38
