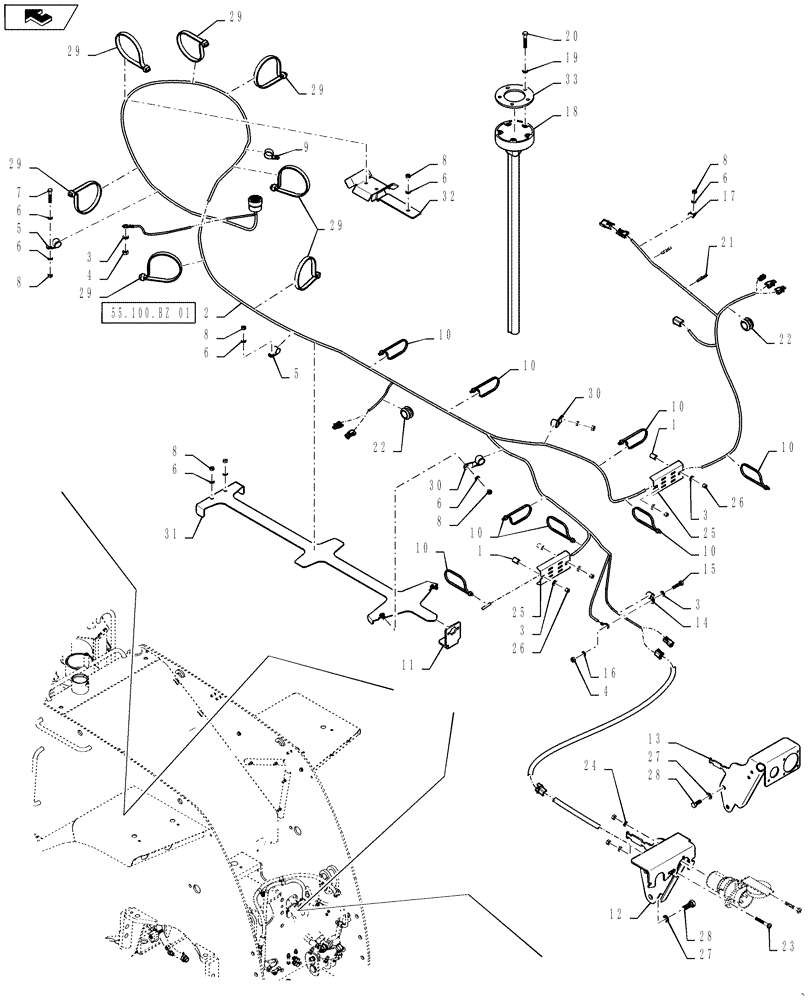

Запчасти Case IH STEIGER 500 (55.101.AC[03]) - REAR FRAM WIRE HARNESS LAYOUT - SUSPENDED CAB - N.A. (55) - ELECTRICAL SYSTEMS

1

47564256

SPACER,11mm ID x 15.9mm OD x 24mm L

16mm OD x 11mm ID x 24mm

4шт.

2

84427181

WIRE HARNESS

Rear Frame

1шт.

3

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

6шт.

4

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

5

515-23206

CLAMP,13/16", Insul, 3/8" Bolt

2шт.

6

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

9шт.

7

614-8040

BOLT,Hex, M8 x 1.25 x 40mm, Cl 8.8, Full Thd

1шт.

8

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

10шт.

9

515-22254

CLAMP,1", Insul, 5/16" Bolt

1шт.

10

L18331

CABLE TIE,375.9mm L, Nylon, Black

8шт.

11

84197692

BRACKET

L

1шт.

12

84474469

BRACKET

7 Pin & TPH Bulkhead

1шт.

13

84474454

BRACKET

AFS & ISO Bulkhead

1шт.

14

515-24190

CLAMP,3/4", Insul, 7/16" Bolt

1шт.

15

614-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

1шт.

16

892-11010

LOCK WASHER,M10

1шт.

17

515-2395

CLAMP,3/8", Insul, 3/8" Bolt

1шт.

18

84370298

SENSOR

Fuel Sender

1шт.

19

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

5шт.

20

814-5030

BOLT,Hex, M5 x 0.8 x 30mm, Cl 8.8

5шт.

21

435437A1

CABLE TIE,3/16" x 7 1/4"

2шт.

22

328265A1

GROMMET

2шт.

23

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

2шт.

24

892-11008

LOCK WASHER,8mm ID

2шт.

25

84345696

COVER

Rear Wiring Access

2шт.

26

832-10410

NUT,M10 x 1.5, Cl 8

4шт.

27

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

4шт.

28

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

4шт.

29

440567A1

CABLE TIE

Cable Tie

7шт.

30

R43926

CLAMP

90 Twist, 3/4 Clip, 3/8 Mounting

2шт.

31

84488090

MOUNTING PLATE

Center Link Electrical

1шт.

32

84379787

BRACKET

Cab Wiring Craddle

1шт.

33

87537695

GASKET

Fuel Sender

1шт.
