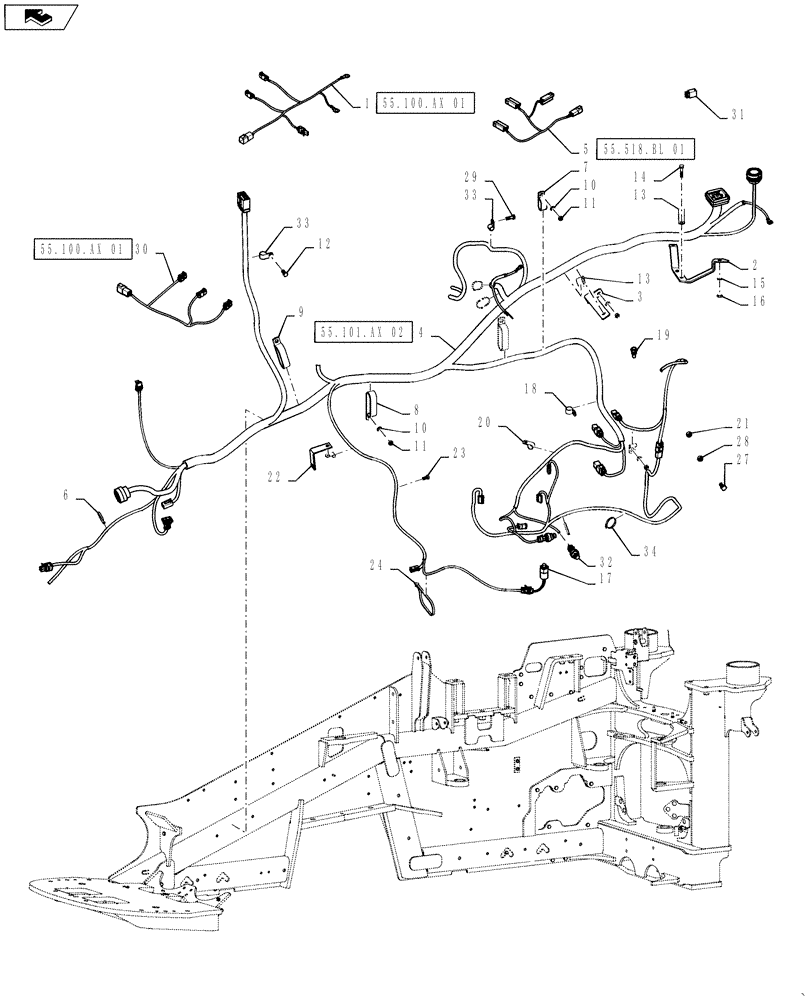

Запчасти Case IH STEIGER 500 (55.101.AC[02]) - FRONT MAIN WIRE HARNESS - SUSPENDED CAB - HOMOLOGATION - EUROPE ONLY (55) - ELECTRICAL SYSTEMS

1

84250841

HARNESS

Hydraulic Sub Assy.

1шт.

2

84427703

BRACKET

Rear Cab Wiring

1шт.

3

84383836

BRACKET

Harness

1шт.

4

84406518

WIRE HARNESS

Front Frame Row Crop, SC - Europe Only

1шт.

5

84297600

HARNESS

Washer Bottle

1шт.

6

435437A1

CABLE TIE,3/16" x 7 1/4"

7шт.

7

L101181

CLAMP,0.75" D Clamping pipes x 2

1шт.

8

87561071

CLAMP

4шт.

9

L111928

CLAMP

Double

1шт.

10

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

22шт.

11

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

16шт.

12

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

4шт.

13

515-23286

CLAMP,1-1/8", Insul, 3/8" Bolt

2шт.

14

814-8040

BOLT,Hex, M8 x 1.25 x 40mm, Cl 8.8

1шт.

15

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

16

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

17

84363710

DIFF PRESSURE SWITCH

Axle Lube

1шт.

18

515-22190

CLAMP,3/4", Insul, 5/16" Bolt

1шт.

19

87521424

TEMPERATURE SENDER

1шт.

20

515-22159

CLAMP,5/8", Insul, 5/16" Bolt

1шт.

21

515-2495

CLAMP,3/8", Insul, 7/16" Bolt

5шт.

22

416512A1

BRACKET

Plate, Axle

1шт.

23

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

2шт.

24

L18331

CABLE TIE,375.9mm L, Nylon, Black

Strap

1шт.

25

406965A1

VARNISH

Sealing

1шт.

26

W0

ORDER WHOLEGOODS

Paint,16 oz Gray - P/N 349-172

1шт.

27

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

1шт.

28

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

29

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

2шт.

30

84406520

WIRE HARNESS

Hydraulic Sub Assy.

1шт.

31

87655334

RELAY,12V, 35A, Micro

35A,

1шт.

32

375644A1

SENSOR

Pressure Transducer

2шт.

33

515-22127

CLAMP,1/2", Insul, 5/16" Bolt

1шт.

34

22-824

CABLE TIE,3/16" x 7 1/4"

2шт.
