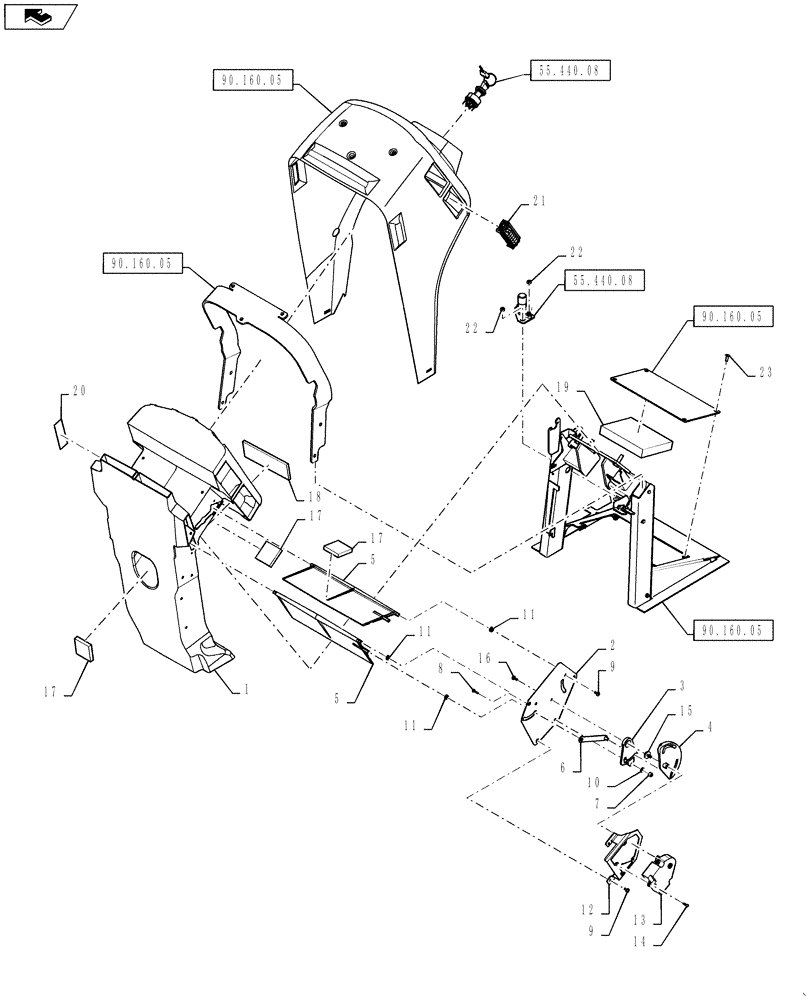

Запчасти Case IH STEIGER 500 (50.200.AA[05]) - AIR DUCTS & HOSES - FRONT CONSOLE HVAC (50) - CAB CLIMATE CONTROL

1

87433098

AIR DUCT

HVAC, Front Console

1шт.

2

257059A2

PLATE

Support

1шт.

3

281138A2

GUIDE

Plate

1шт.

4

281139A1

GUIDE

Plate

1шт.

5

47631897

LOUVER

Air Plenum

2шт.

6

275601A1

LINK

Assembly

1шт.

7

832-10404

NUT,M4 x 0.7, Cl 8.8

1шт.

8

840-1416

SCREW,Pan, M4 x 16mm, Cl 4.8

1шт.

9

840-148

SCREW,Pan, M4 x 8mm, Cl 4.8

3шт.

10

895-11004

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

1шт.

11

60-2416T1

NYLON BEARING,0.251" ID x 0.437" OD x 0.03, 0.14, 0.015"

3шт.

12

277438A1

BRACKET

Bracket

1шт.

13

275602A1

ACTUATOR

Motor

1шт.

14

760-14316

SELF-TAP SCREW,Pan Hd, M4.2 x 16

3шт.

15

281140A1

WASHER

Shoulder

1шт.

16

840-1410

SCREW,Pan, M4 x 10mm, Cl 4.8

1шт.

17

446687A1

FOAM

Louver Dampner

3шт.

18

356717A1

TAPE

Foam

1шт.

19

87688791

FOAM

Block

1шт.

20

357563A1

FASTENER

Velcro Loop, Bulk

1шт.

21

363882A1

VENT

Louvers

10шт.
