(50.104.AH[01]) - FRONT CONSOLE HVAC - AIR DUCT, LOUVERS, AND INSULATION

Запчасти Case IH STEIGER 500 (50.104.AH[01]) - FRONT CONSOLE HVAC - AIR DUCT, LOUVERS, AND INSULATION (50) - CAB CLIMATE CONTROL

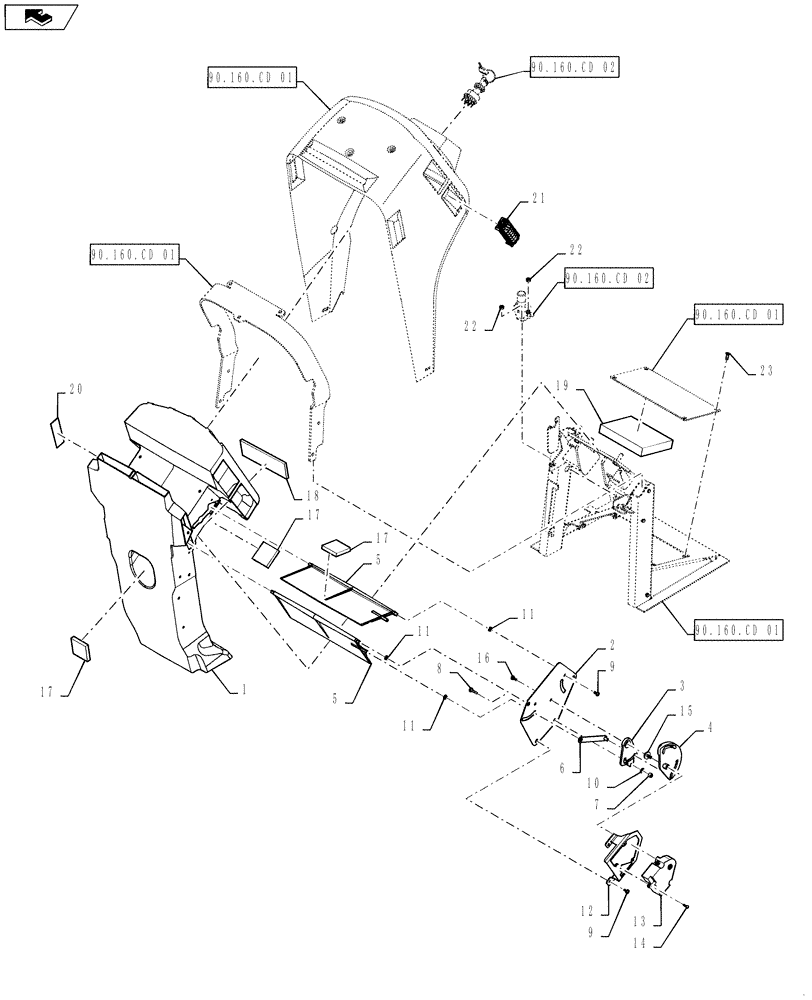

Схема запчастей Case IH STEIGER 500 - (50.104.AH[01]) - FRONT CONSOLE HVAC - AIR DUCT, LOUVERS, AND INSULATION (50) - CAB CLIMATE CONTROL
4
11
14
11
1
17
11
19
8
9
15
17
16
90.160.cd 01
3
9
12
90.160.cd 02
5
22
17
20
23
13
6
90.160.cd 01
90.160.cd 01
7
90.160.cd 01
5
18
2
21
home
90.160.cd 02
22
10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87433098

AIR DUCT

HVAC, Front Console

1шт.

2

257059A2

PLATE

Support

1шт.

3

281138A2

GUIDE

Plate

1шт.

4

281139A1

GUIDE

Plate

1шт.

5

47631897

LOUVER

Air Plenum

2шт.

6

275601A1

LINK

Assembly

1шт.

7

832-10404

NUT,M4 x 0.7, Cl 8.8

1шт.

8

840-1416

SCREW,Pan, M4 x 16mm, Cl 4.8

1шт.

9

840-148

SCREW,Pan, M4 x 8mm, Cl 4.8

3шт.

10

895-11004

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

1шт.

11

60-2416T1

NYLON BEARING,0.251" ID x 0.437" OD x 0.03, 0.14, 0.015"

3шт.

12

277438A1

BRACKET

Bracket

1шт.

13

275602A1

ACTUATOR

Motor

1шт.

14

760-14316

SELF-TAP SCREW,Pan Hd, M4.2 x 16

3шт.

15

281140A1

WASHER

Shoulder

1шт.

16

840-1410

SCREW,Pan, M4 x 10mm, Cl 4.8

1шт.

17

446687A1

FOAM

Louver Dampner

3шт.

18

356717A1

TAPE

Foam

1шт.

19

87688791

FOAM

Block

1шт.

20

357563A1

FASTENER

Velcro Loop, Bulk

1шт.

21

363882A1

VENT

Louvers

10шт.
