(48.130.AN[04]) - TRACK ASSY - UNDERCARRIAGE ASSY - 24" THRU 30" WIDE WHEEL

Запчасти Case IH STEIGER 500 (48.130.AN[04]) - TRACK ASSY - UNDERCARRIAGE ASSY - 24" THRU 30" WIDE WHEEL (48) - TRACKS & TRACK SUSPENSION

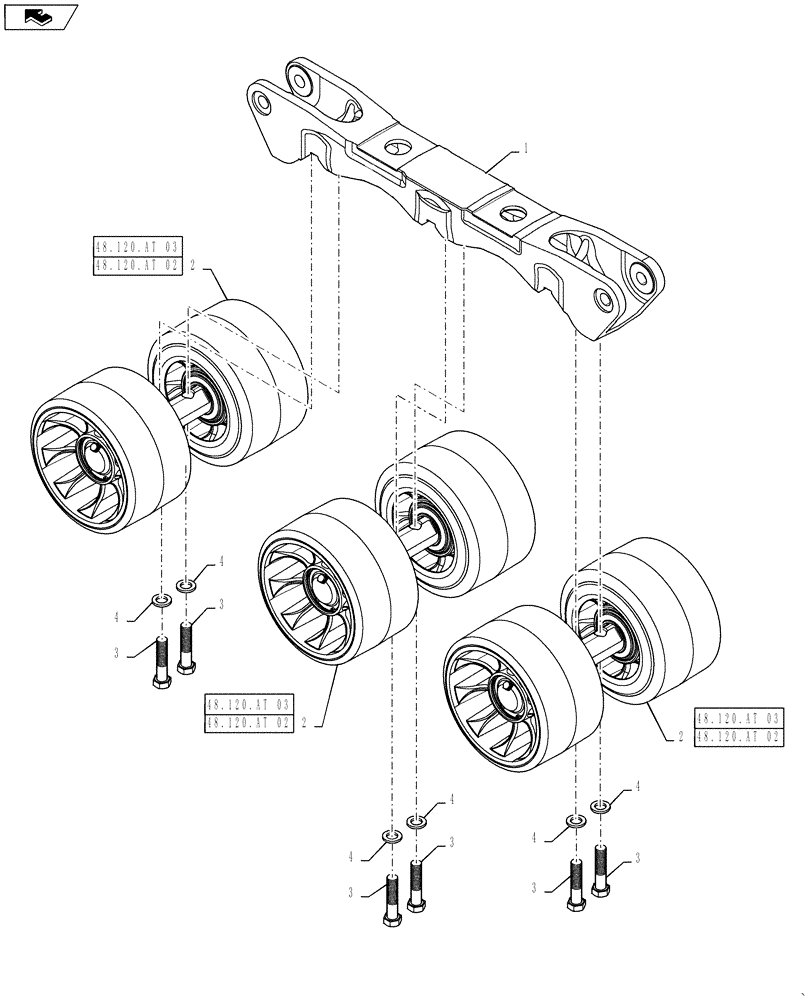

Схема запчастей Case IH STEIGER 500 - (48.130.AN[04]) - TRACK ASSY - UNDERCARRIAGE ASSY - 24" THRU 30" WIDE WHEEL (48) - TRACKS & TRACK SUSPENSION
3
4
4
3
2
48.120.at 02
48.120.at 03
48.120.at 02
2
2
4
4
4
3
home
48.120.at 02
3
3
4
3
1
48.120.at 03
48.120.at 03
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84491618

MOUNT

Roller Beam

1шт.

2

NSS

NOT SOLD SEPARAT

Roller Assy - Ref. Figure 48.120.AT(02)03)

3шт.

3

827-24110

BOLT,Hex, M24 x 3 x 110mm, Cl 10.9

6шт.

4

896-11024

WASHER,26mm ID x 44mm OD x 5mm Thk

6шт.

Выбрано товаров: 4
