Запчасти Case IH STEIGER 500 (48.130.AN[03]) - TRACK ASSY - UNDERCARRIAGE ASSY. - 24" THRU 30" WIDE WHEEL (48) - TRACKS & TRACK SUSPENSION

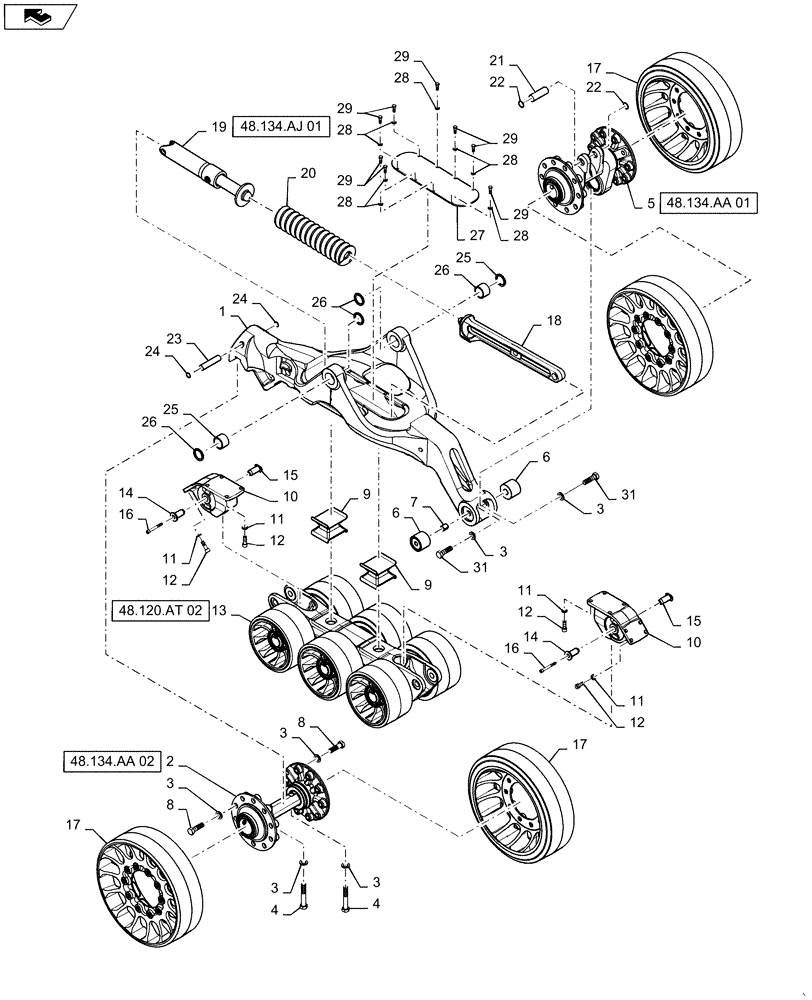

Схема запчастей Case IH STEIGER 500 - (48.130.AN[03]) - TRACK ASSY - UNDERCARRIAGE ASSY. - 24" THRU 30" WIDE WHEEL (48) - TRACKS & TRACK SUSPENSION
48.134.aa 01
31
3
14
7
11
22
28
3
13
2
21
14
10
25
16
24
29
11
3
12
4
3
6
31
3
24
20
17
28
29
11
17
26
12
10
28
12
4
19
11
29
22
9
1
29
9
8
26
15
26
29
12
6
home
3
28
23
16
18
8
27
15
5
17
25
28
48.134.aa 02
48.134.aj 01
48.120.at 02

Артикул

Название

Примечание

Количество

1

84478711

UNDERCARRIAGE

Main Beam

1шт.

2

NSS

NOT SOLD SEPARAT

Axle Assy - Rear Idler - Ref. Figure 48.134.AA(02)

1шт.

3

896-11024

WASHER,26mm ID x 44mm OD x 5mm Thk

44шт.

4

827-24140

BOLT,Hex, M24 x 3 x 140mm, Cl 10.9

2шт.

5

NSS

NOT SOLD SEPARAT

Axle Assy - Front Idler - Ref. Figure 48.134.AA(01)

1шт.

6

84523426

SHAFT

Idelr Pivot

2шт.

7

84523427

SPACER

Idler Alignment

1шт.

8

827-24090

BOLT,Hex, M24 x 3 x 90mm, Cl 10.9

42шт.

9

84491621

MOUNT

Track Suspension

2шт.

10

84491620

MOUNT

Roller Suspension

2шт.

11

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

16шт.

12

87524538

SCREW

SHCS, M16 x 50 mm

16шт.

13

NSS

NOT SOLD SEPARAT

Roller Assy, Wide - Ref. Figure 48.120.AT(02)

1шт.

14

84531941

PIN

Suspension Mount - Inboard

2шт.

15

84531942

PIN

Suspension Mount - Outboard

2шт.

16

47535788

HEX SOC SCREW

2шт.

17

84585561

IDLER WHEEL

24 IN

4шт.

17

84585561R

REMAN-WHEEL IDLER

24 IN

4шт.

17

84585561C

CORE-WHEEL IDLER

Return Number

4шт.

18

84491615

LINK

Tension Link

1шт.

19

84491609

CYLINDER,Double Acting, 60mm Rod, 228mm Stroke

Undercarriage - Ref. Figure 48.134.AJ(01)

1шт.

20

255729A1

SPRING

Undercarriage

1шт.

21

329647A1

PIN,38.1mm OD x 113mm L

Front Idler

1шт.

22

87038806

SNAP RING,M38, Internal

38mm

2шт.

23

84531271

PIN

Cylinder

1шт.

24

800-6130

SNAP RING,M30, Int, Hvy

2шт.

25

87423204

BUSHING,57.25mm ID x 69.97mm OD x 47mm L

2шт.

26

87423203

SEAL

Undercarriage Oscillation

4шт.

27

84530188

ACCESS COVER

Spring Cover

1шт.

28

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

8шт.

29

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

8шт.

30

84491617

PAD

Tensioner Link (Not Shown)

1шт.

31

47534762

BOLT,Hex, M24 x 3 x 95mm, Cl 10.9

20шт.

Выбрано товаров: 33
