(48.130.AN[02]) - TRACK ASSY - UNDERCARRIAGE ASSY - 16" THRU 24" NARROW WHEEL

Запчасти Case IH STEIGER 500 (48.130.AN[02]) - TRACK ASSY - UNDERCARRIAGE ASSY - 16" THRU 24" NARROW WHEEL (48) - TRACKS & TRACK SUSPENSION

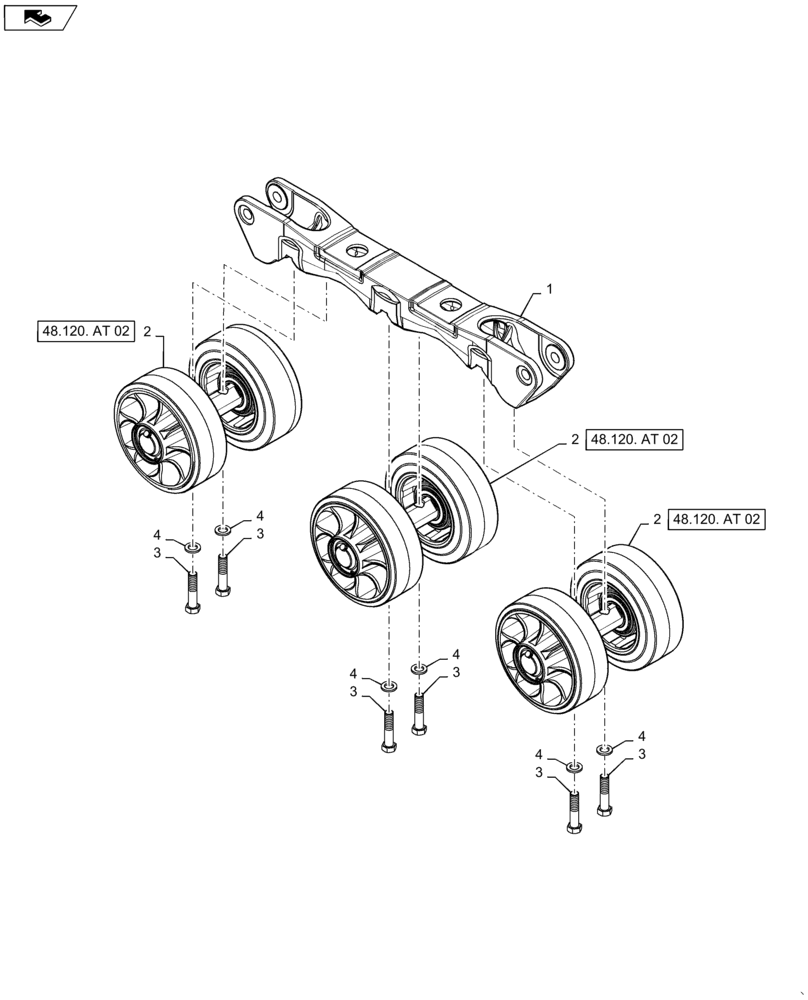

Схема запчастей Case IH STEIGER 500 - (48.130.AN[02]) - TRACK ASSY - UNDERCARRIAGE ASSY - 16" THRU 24" NARROW WHEEL (48) - TRACKS & TRACK SUSPENSION
2
3
3
4
1
2
3
4
48.120. at 02
48.120. at 02
2
4
48.120. at 02
4
3
4
3
4
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47447178

BEAM

Roller Beam

1шт.

2

NSS

NOT SOLD SEPARAT

Roller Assy & Shaft - Ref. Figure 48.120.AT(01)

3шт.

3

827-24110

BOLT,Hex, M24 x 3 x 110mm, Cl 10.9

6шт.

4

896-11024

WASHER,26mm ID x 44mm OD x 5mm Thk

6шт.

Выбрано товаров: 4
