Запчасти Case IH STEIGER 500 (48.120.AT[01]) - TRACK ASSY - ROLLER ASSY & SHAFT - 16" THRU 24" NARROW WHEEL (48) - TRACKS & TRACK SUSPENSION

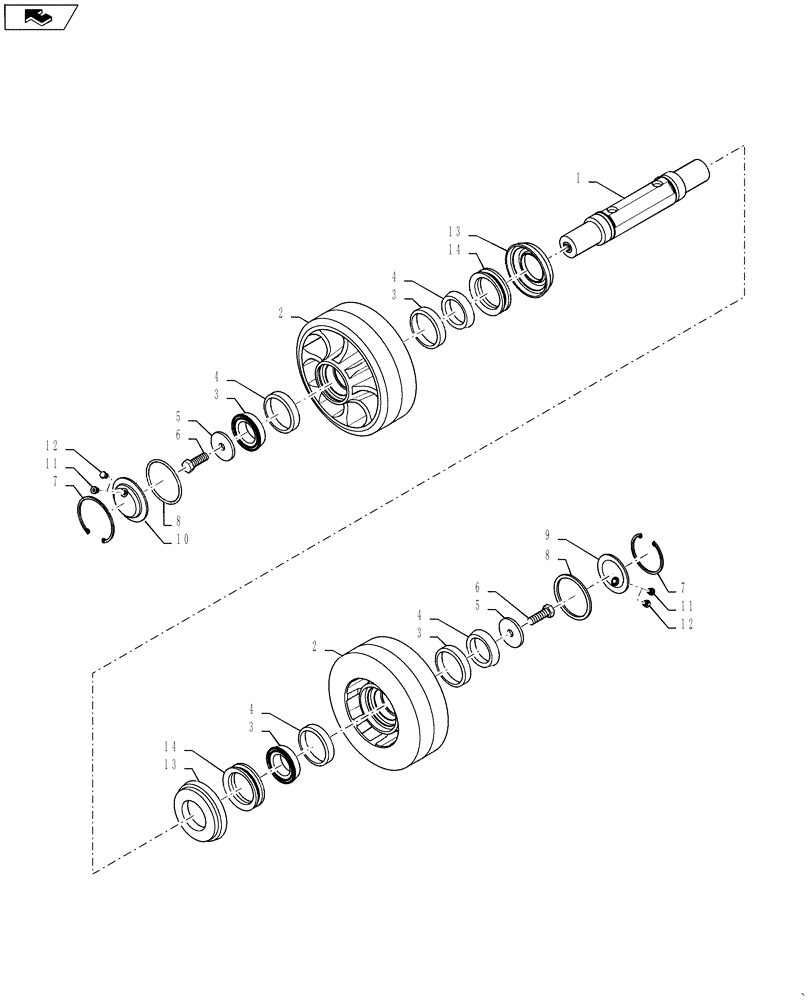

Схема запчастей Case IH STEIGER 500 - (48.120.AT[01]) - TRACK ASSY - ROLLER ASSY & SHAFT - 16" THRU 24" NARROW WHEEL (48) - TRACKS & TRACK SUSPENSION
11
home
3
1
2
5
2
5
12
10
11
3
13
4
3
8
3
6
8
7
14
4
12
4
9
7
13
6
4
14

Артикул

Название

Примечание

Количество

1

84478741

ROLLER SHAFT

1шт.

2

84514097

WHEEL ASSY,340mm OD x 94mm W

Roller, 16

2шт.

3

625743C1

BEARING CUP,90mm OD x 18.5mm W

Tapered Roller

4шт.

4

A61447

ROLLER BEARING,2.1651" ID x 0.9045" Thk

4шт.

5

87387720

RETAINER

Bearing

2шт.

6

84303553

BOLT,Hex, M20 x 2.5 x 60mm, Cl 10.9

M20 x 60mm

2шт.

7

301652

SNAP RING,M110 x 4mm, Internal

2шт.

8

86984140

O-RING,97mm ID x 6.99mm Thk

2шт.

9

87404689

CAP

Roller Hub

1шт.

10

84383306

CAP

Roller Hub - Clear

1шт.

11

246406A1

PLUG,M12 x 1.5 ORB

1шт.

12

86598043

PLUG,M12 x 1.5 ORB

1шт.

13

87304018

CUP,65.98mm ID x 124.7mm OD x 25mm Thk

Seal

2шт.

14

84573722

SEAL

Oil, Roller

2шт.

Выбрано товаров: 14
