Запчасти Case IH STEIGER 500 (48.120.AJ[02]) - TRACK ASSY - UNDERCARRIAGE - 24" THRU 30" WIDE WHEEL (48) - TRACKS & TRACK SUSPENSION

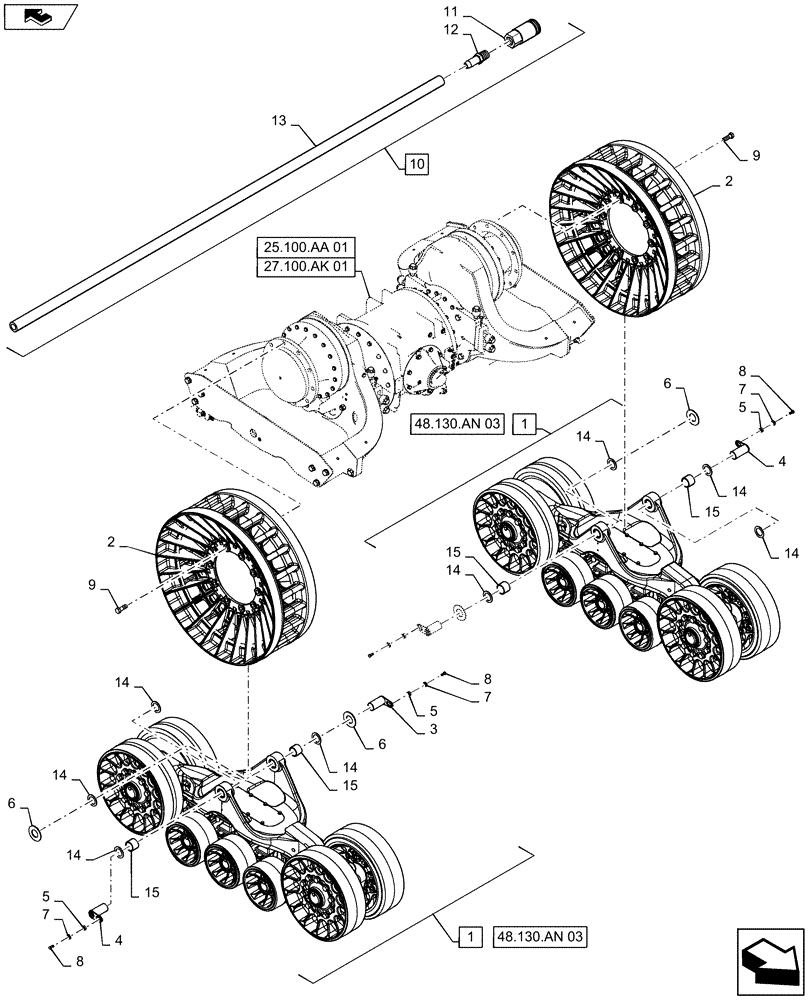

Схема запчастей Case IH STEIGER 500 - (48.120.AJ[02]) - TRACK ASSY - UNDERCARRIAGE - 24" THRU 30" WIDE WHEEL (48) - TRACKS & TRACK SUSPENSION
7
4
7
10
5
3
9
8
1
14
48.130.an 03
14
6
15
5
27.100.ak 01
7
48.130.an 03
15
8
11
6
14
9
1
2
8
6
14
25.100.aa 01
14
12
15
15
13
5
4
14
14
2
14

Артикул

Название

Примечание

Количество

1

NSS

NOT SOLD SEPARAT

Undercarriage Assy - Ref. Figure 48.130.AN(02), Incl 14, 15

4шт.

2

84598130

WHEEL ASSY,410mm ID x 1153mm OD x 406mm W

Drive Wheel

4шт.

3

84491592

PIN

Inner Pivot, Inboard

4шт.

4

84560026

PIN

Outer Pivot, Outboard

4шт.

5

84559566

SPACER

Pivot Pin

8шт.

6

87423202

THRUST BEARING,58mm ID x 115mm OD x 5mm Thk

8шт.

7

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

8шт.

8

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

8шт.

9

47435326

BOLT

40шт.

10

84489584

HOSE ASSY.

Drive Wheel Maintenance, Incl 11 - 13

1шт.

11

233303A1

COUPLING

Female

1шт.

12

217-125

FITTING,3/8" Hose Barb x 1/4" Male NPTF

1шт.

13

31-1079

HOSE

36", Order Bulk Hose 32-12

1шт.

14

87423203

SEAL

Pivot Pin, Incl in 1

16шт.

15

87423204

BUSHING,57.25mm ID x 69.97mm OD x 47mm L

Incl in 1

8шт.

Выбрано товаров: 15
