Запчасти Case IH STEIGER 500 (41.432.AB[03]) - STEERING PRIORITY VALVE (41) - STEERING

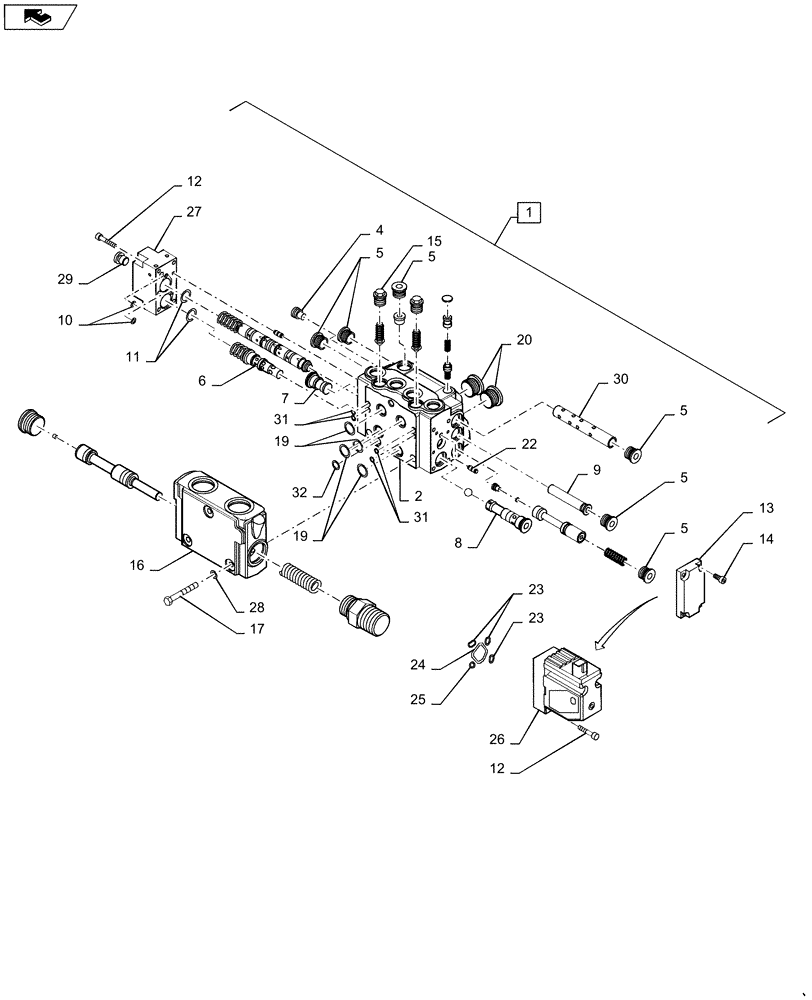

Схема запчастей Case IH STEIGER 500 - (41.432.AB[03]) - STEERING PRIORITY VALVE (41) - STEERING
4
30
2
11
19
15
24
31
29
23
20
22
10
5
14
home
28
26
25
6
8
16
19
7
1
13
9
5
12
5
27
5
17
31
12
23
32
5

Артикул

Название

Примечание

Количество

1

87585897

HYDRAULIC VALVE

Priority / EHPS Non-Autoguidance, Incl 2 - 20

1шт.

1

87585897R

REMAN-HYD VALVE

EHPS Non-Autoguidance

1шт.

1

87585897C

CORE-VALVE HYD

Return Number

1шт.

1

87585898

HYDRAULIC VALVE

Priority / EHPS Autoguidance, Incl 2 - 32

1шт.

Used with ACCUGUIDE Applications.

1шт.

1

87585898R

REMAN-HYD VALVE

EHPS Autoguidance

1шт.

1

87585898C

CORE-VALVE HYD

Return Number

1шт.

2

NSS

NOT SOLD SEPARAT

Housing, Steering Valve, Incl in 1

1шт.

3

87397327

SEAL KIT

EHPS

1шт.

4

NSS

NOT SOLD SEPARAT

Plug, w/ O-Ring, Incl in 1

1шт.

5

NSS

NOT SOLD SEPARAT

Plug, w/ O-Ring, Incl in 1

6шт.

6

NSS

NOT SOLD SEPARAT

Bushing, w/ O-Ring, Incl in 1

1шт.

7

NSS

NOT SOLD SEPARAT

Plug, w/ O-Ring, Incl in 1

1шт.

8

NSS

NOT SOLD SEPARAT

Plug, w/ O-Ring, Incl in 1

1шт.

9

NSS

NOT SOLD SEPARAT

Plug, w/ O-Ring, Incl in 1

1шт.

10

NSS

NOT SOLD SEPARAT

O-Ring, Incl in 1

5шт.

11

NSS

NOT SOLD SEPARAT

O-Ring, Incl in 1

4шт.

12

NSS

NOT SOLD SEPARAT

Screw, Incl in 1

1шт.

13

NSS

NOT SOLD SEPARAT

Cover, Incl in 1

1шт.

14

NSS

NOT SOLD SEPARAT

Screw, Incl in 1

4шт.

15

NSS

NOT SOLD SEPARAT

Plug, w/ O-Ring, Incl in 1

2шт.

16

NSS

NOT SOLD SEPARAT

Housing, Priority Valve, Incl in 1

1шт.

17

NSS

NOT SOLD SEPARAT

Bolt, Incl in 1

3шт.

18

87397328

SEAL KIT

OLS Priority Valve

1шт.

19

NSS

NOT SOLD SEPARAT

O-Ring, Incl in 1

4шт.

20

NSS

NOT SOLD SEPARAT

Plug, w/ O-Ring, Incl in 1

2шт.

21

87397329

SEAL KIT

PVE

1шт.

Used with ACCUGUIDE Applications.

1шт.

22

87540544

VALVE

Shuttle

2шт.

Used with ACCUGUIDE Applications.

1шт.

23

NSS

NOT SOLD SEPARAT

O-Ring, Incl in 1

3шт.

Used with ACCUGUIDE Applications.

1шт.

24

NSS

NOT SOLD SEPARAT

O-Ring, Incl in 1

1шт.

Used with ACCUGUIDE Applications.

1шт.

25

NSS

NOT SOLD SEPARAT

O-Ring, Incl in 1

1шт.

Used with ACCUGUIDE Applications.

1шт.

26

87540543

MODULE

Solenoid, PVEH

1шт.

Used with ACCUGUIDE Applications.

1шт.

27

NSS

NOT SOLD SEPARAT

Cover, Incl in 1

1шт.

28

NSS

NOT SOLD SEPARAT

Washer, Incl in 1

3шт.

29

NSS

NOT SOLD SEPARAT

Plug, w/ O-Ring, Incl in 1

1шт.

30

87397330

SEAL KIT

PVBZ Accusteer

1шт.

Used with ACCUGUIDE Applications.

1шт.

31

NSS

NOT SOLD SEPARAT

O-Ring, Incl in 1

4шт.

32

NSS

NOT SOLD SEPARAT

O-Ring, Incl in 1

1шт.

Выбрано товаров: 45
