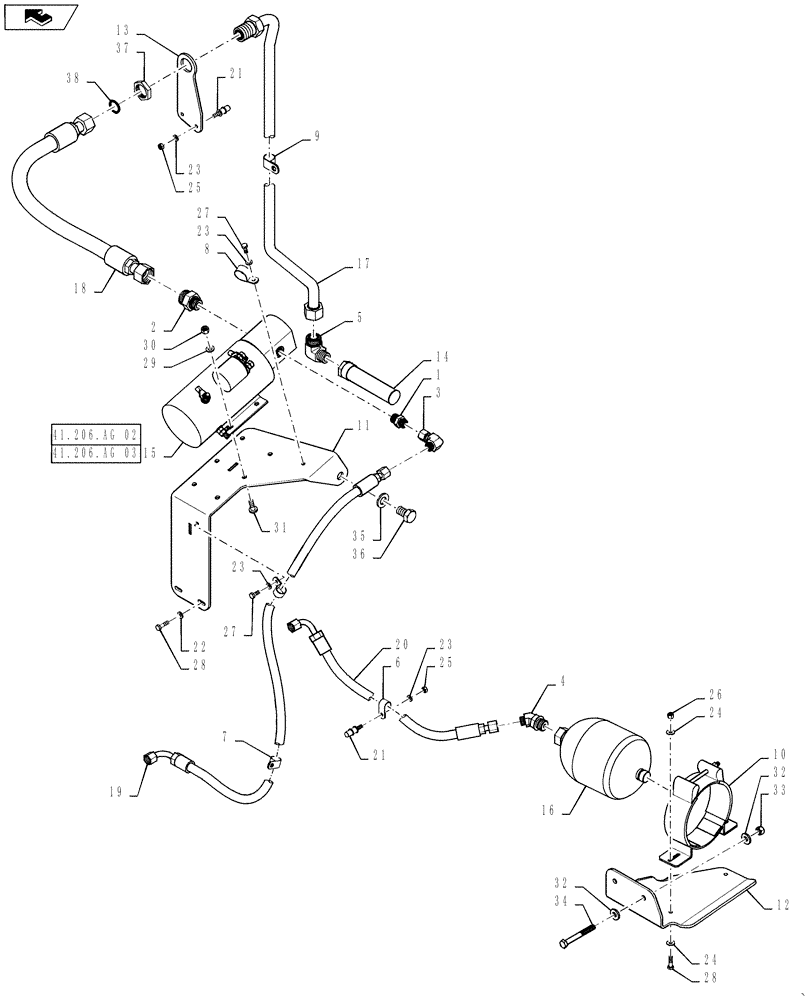

Запчасти Case IH STEIGER 500 (41.206.AG[01]) - STEERING ASSY - EMERGENCY STEERING SYSTEM (41) - STEERING

1

700-162

HYD CONNECTOR,13/16" - 16 Male ORFS x M22 x 1.5 Male ORB

1шт.

2

700-166

HYD CONNECTOR,1-7/16" - 12 Male ORFS x M27 x 2 Male ORB

1шт.

3

701-320

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

1шт.

4

86639057

ELBOW,45 Degree, 13/16"-16 ORFS x M27 x 2 ORB

1шт.

5

84383388

ADAPTER

1.00 In ORFS to 3/4 NPTF 90

1шт.

6

515-23206

CLAMP,13/16", Insul, 3/8" Bolt

1шт.

7

515-23238

CLAMP,15/16", Insul, 3/8" Bolt

2шт.

8

515-23317

CLAMP,31.75mm ID, 10.3mm Bolt Hole, P Type

1шт.

9

515-25254

CLAMP,1", Insul, 1/2" Bolt

1шт.

10

8501315

CLAMP,167mm - 175mm

Accumulator

1шт.

11

84383373

BRACKET

SEC Pump Support

1шт.

12

84383378

BRACKET

Accumulator support

1шт.

13

84383376

BRACKET

Pump Suction Tube Support

1шт.

14

L129303

FILTER SCREEN

Hyd. Tank

1шт.

15

87581480

ELECTRIC PUMP

Steering, Hyd. Motor

1шт.

16

84494558

ACCUMULATOR,2.8L

Service Brake

1шт.

17

84383385

HYD TUBE

SEC Pump Suction

1шт.

18

84383381

HYDRAULIC HOSE,25.4mm ID x 826mm L, SAE 100R1

SEC Pump Suction

1шт.

19

84383383

HYDRAULIC HOSE,12.7mm ID x 1416mm L, SAE 100R17

SEC Pump Pressure

1шт.

20

84383384

HYDRAULIC HOSE,12.7mm ID x 625mm L, SAE 100R17

Accumulator Pressure

1шт.

21

426285A1

STUD

Threaded Captive

3шт.

22

896-11008

WASHER,9mm ID x 17mm OD x 2mm Thk

2шт.

23

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

5шт.

24

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

4шт.

25

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

3шт.

26

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

27

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

2шт.

28

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

4шт.

29

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

30

832-10410

NUT,M10 x 1.5, Cl 8

4шт.

31

87610712

SCREW,Pan HD, M10 x 30mm, Cl 8.8

Pan Hex-Socket, M10 x 30

4шт.

32

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

4шт.

33

829-1412

NUT,M12, Cl 10.9

2шт.

34

827-12100

BOLT,Hex, M12 x 1.75 x 100mm, Cl 10.9

2шт.

35

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

1шт.

36

627-20030

BOLT,Hex, M20 x 2.5 x 30mm, Cl 10.9, Full Thd

1шт.

37

701-908

BHD LOCK NUT,1-7/16" - 12

1шт.

38

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.
