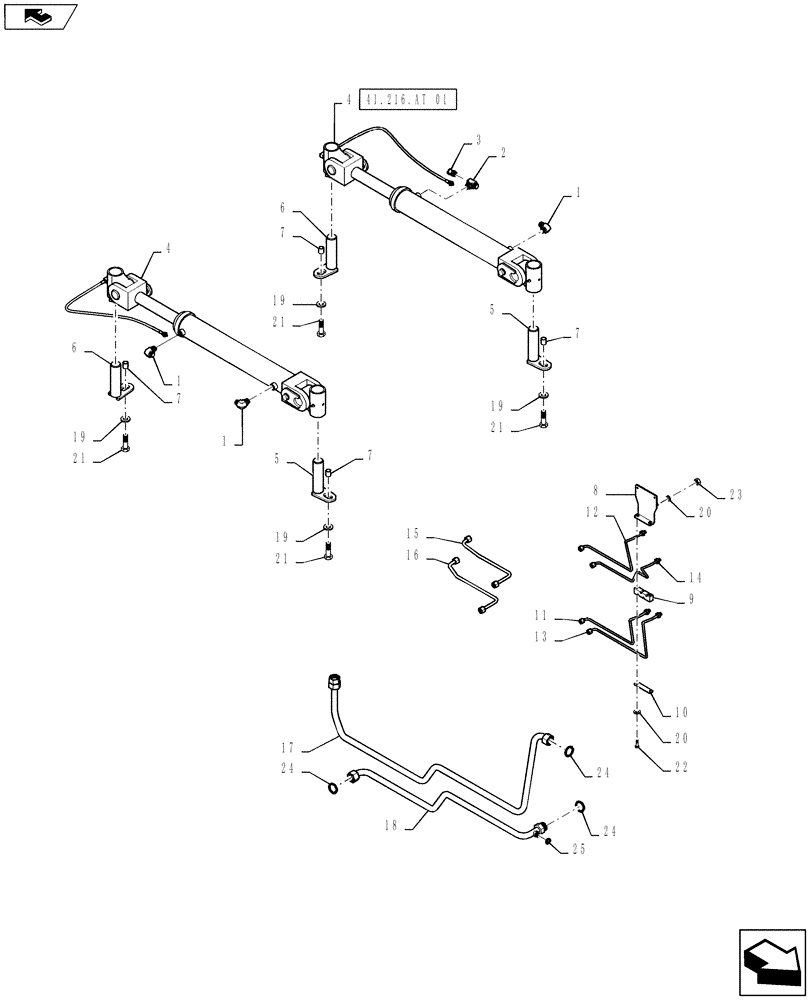

Запчасти Case IH STEIGER 500 (41.200.AA[02]) - STEERING ASSY - HYDR LINES (41) - STEERING

1

86579691

90 ELBOW,90 Degree, 13/16"-18 ORFS x M18 x 1.5 ORB

3шт.

2

364967A1

TEE,13/16" - 16 Male ORFS x M18 x 1.5 Male ORB x M14 x 1.5 Female ORB

1шт.

3

178889A1

DIAGNOSTIC COUPLER

1шт.

4

NSS

NOT SOLD SEPARAT

Cylinder Assy. - See Figure 41.216.AT(01)

2шт.

5

70-6085T2

PIN

2шт.

6

70-6076T3

PIN

2шт.

7

70-5967T1

SPACER,16.7mm ID x 22.2mm OD x 11.2mm

2шт.

8

84340158

BRACKET, SUPPORTING

Steering Support, Cab

1шт.

9

87403324

BRACKET

Hydraulic Tube Mounting

2шт.

10

87436024

MOUNTING PARTS

Hose Bar

2шт.

11

84378775

TUBE

Steering, Priority - Left

1шт.

12

84378782

TUBE

Steering, Priority - Right

1шт.

13

84378788

TUBE

Steering, Priority Pressure

1шт.

14

84378796

TUBE

Steering, Priority Tank

1шт.

15

84179121

HYD TUBE,12.70 mm OD

Steering Cylinder - Right

1шт.

16

87741808

HOSE ASSY.

Steering Pressure

1шт.

17

367244A1

HOSE,12.7mm ID x 550mm L

Steering Control

1шт.

18

84179133

HOSE ASSY.,9.53mm ID x 491mm L, SAE 100R1

Steering Control

1шт.

19

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

13/16, ORFS

12шт.

20

87563128

LOCK BOLT,Hex, M16 x 2 x 35mm, Cl 8.8, Full Thd

4шт.

21

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

2шт.

22

412250

NUT,M8 x 1.25, Cl 8

6шт.

23

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

24

84432614

O-RING,1.6mm Thk x 8.1mm ID, Cl 6, 90 Duro

1шт.
