(41.200.AA[01]) - STEERING ASSY - HYDR LINES

Запчасти Case IH STEIGER 500 (41.200.AA[01]) - STEERING ASSY - HYDR LINES (41) - STEERING

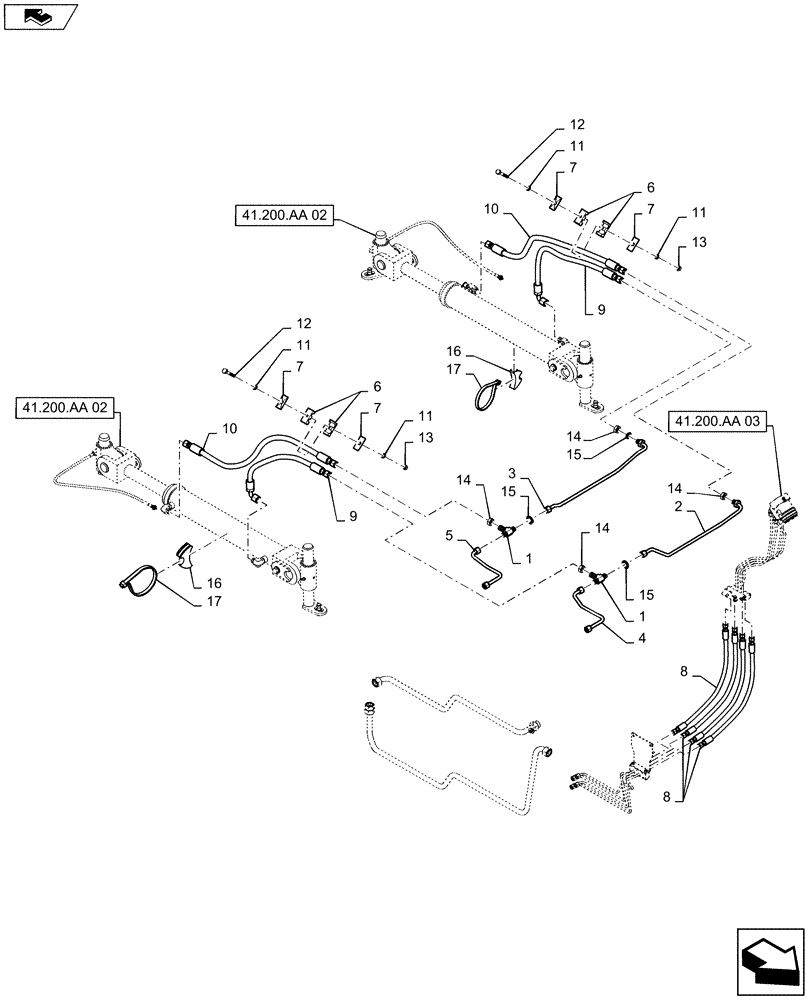

Схема запчастей Case IH STEIGER 500 - (41.200.AA[01]) - STEERING ASSY - HYDR LINES (41) - STEERING
13
14
3
15
5
13
7
11
17
11
17
15
12
16
41.200.aa 02
14
10
14
8
9
16
7
9
7
11
41.200.aa 02
41.200.aa 03
10
11
15
4
12
7
2
14
8
6
6
1
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

701-452

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS

2шт.

2

84162396

HYD TUBE,12.70 mm OD

Steering Pressure, Left

1шт.

3

84182434

HYD TUBE,12.70 mm OD

Steering Pressure, Right

1шт.

4

84208210

TUBE

Steering, Left

1шт.

5

84208212

TUBE

Steering, Right

1шт.

6

50-2551T1

CLAMP

Tube

4шт.

7

50-2533T1

PLATE

Cover

4шт.

8

84378798

HOSE ASSY.,9.53mm ID x 766mm L, SAE 100R1

Steering Control

4шт.

9

47498735

HOSE ASSY.,12.7mm ID x 550mm L

Assembly

2шт.

10

47498734

HOSE ASSY.,12.7mm ID x 940mm L

Steering Pressure

2шт.

11

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

16шт.

12

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

2шт.

13

832-10408

NUT,M8 x 1.25, Cl 8.8

6шт.

14

701-903

NUT,13/16" - 16

3шт.

15

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

4шт.

16

391133A1

CLAMP

2шт.

17

440567A1

CABLE TIE

2шт.
