Запчасти Case IH STEIGER 500 (35.204.BQ[14]) - AUXILIARY CONTROL VALVE - THREE POINT HITCH (35) - HYDRAULIC SYSTEMS

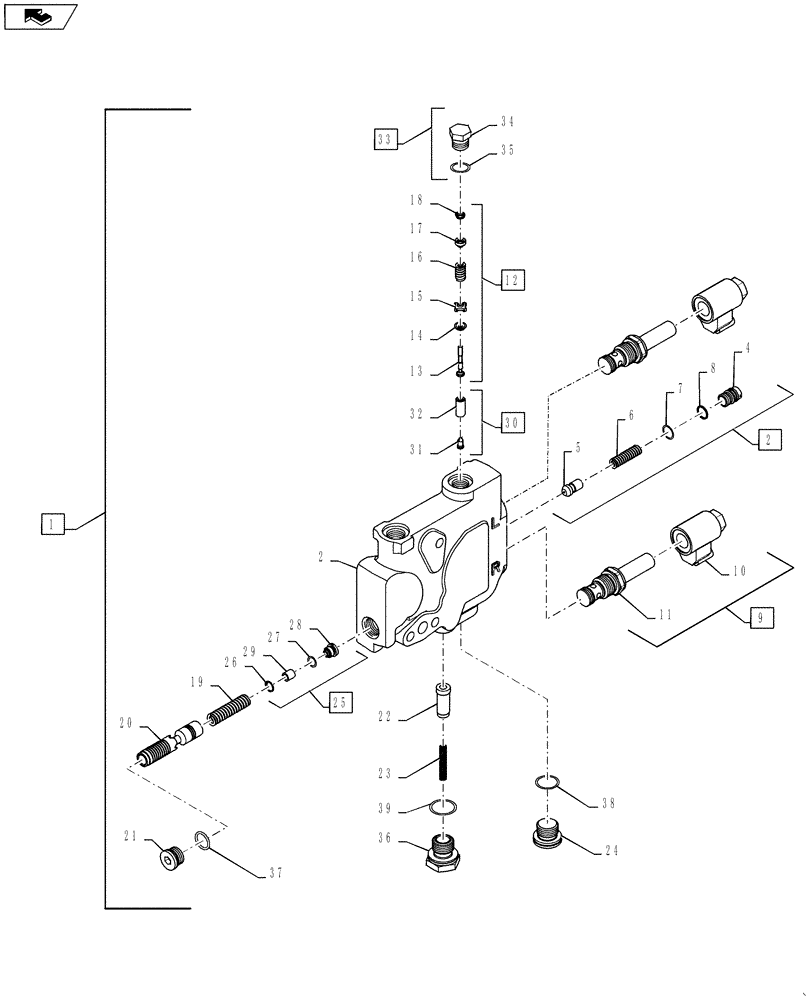

Схема запчастей Case IH STEIGER 500 - (35.204.BQ[14]) - AUXILIARY CONTROL VALVE - THREE POINT HITCH (35) - HYDRAULIC SYSTEMS
21
1
9
10
22
2
25
4
8
33
29
16
12
35
11
13
32
10
7
23
34
35
14
31
26
28
5
18
20
24
19
home
30
17
27
11
15
9
6
3

Артикул

Название

Примечание

Количество

1

47434192

HYD VALVE SECTION

Three Point Hitch, Incl 2 - 35

1шт.

2

NSS

NOT SOLD SEPARAT

VALVE BODY - Incl in 1

1шт.

3

1542563C1

KIT

Logic, Incl 4 - 8

1шт.

4

1994580C1

PLUG

Logic Check

1шт.

5

1543329C1

VALVE POPPET,7mm ID x 13.8mm OD x 27mm L

Logic Check

1шт.

6

1994581C1

SPRING,6.1mm OD x 31.1mm L

Logic Check

1шт.

7

238-6015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 6, 90 Duro

1шт.

8

G108723

RING,14.34mm ID x 16.94mm OD x 1.32mm Thk

Back-up

1шт.

9

47379783

SOLENOID,1.8 Ohm, 100 Hz

Solenoid Assy. Hitch - Incl 10, 35 - 36

2шт.

10

87608473

COIL

Solenoid, Hitch

2шт.

11

86637739

O-RING,0.116" Thk x 0.924" ID, -912, Cl 8, 90 Duro

Cartridge

2шт.

12

337425A3

VALVE, PRESSURE RELI

Incl 13 - 18

1шт.

13

337427A1

VALVE POPPET,2.93/3.5mm ID x 4.17/8mm OD x 37.25mm L

Relief

1шт.

14

337428A1

SEAT

Relief

1шт.

15

337430A1

GUIDE

Spring

1шт.

16

NSS

NOT SOLD SEPARAT

Spring, Relief - Incl in 1

1шт.

17

NSS

NOT SOLD SEPARAT

Stop, Spring Adj. - Incl in 1

1шт.

18

337433A1

COMPRESSION SPRING,Compression, 13.21mm OD x 12.289mm L

Anti-Cav, Conical

1шт.

19

436854A1

SPRING,15.11mm OD x 63.35mm L

Compression, Long

1шт.

20

84187247

SPOOL,15.9mm ID x 19.32mm OD x 96mm L

Pressure Comp., Hitch

1шт.

21

218-5211

PLUG,Hex Soc, 7/8"-14 ORB

Incl 37

1шт.

22

87648631

PIN,8mm OD x 19mm L

Load Sense

1шт.

23

87648596

SPRING,3.81mm OD x 23.19mm L

Aux. Signal Check

1шт.

24

221578A1

PLUG,M18 x 1.5 ORB

Incl 38

1шт.

25

87619813

CHECK VALVE,1/2" - 20

Incl 26 - 29

1шт.

26

100-2125

SNAP RING,M25, Int

1шт.

27

237-6005

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

1шт.

28

NSS

NOT SOLD SEPARAT

Valve, Check - Incl in 1

1шт.

29

NSS

NOT SOLD SEPARAT

Poppet, Orifice - Incl in 1

1шт.

30

87518992

PLUG

Orifice, Incl 31 - 32

1шт.

31

385520A1

PLUG,Hex, 13.05mm ID x 22.23mm OD x 23.5mm L

Check Valve - Incl 32

1шт.

32

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Incl in 31

1шт.

33

87648607

PLUG,M12 x 1.5 ORB

Plug, Load Sense

1шт.

34

637-63093

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

Check Valve

1шт.

35

47379782

SOLENOID,M19 x 1 x 115mm L

Hitch cartridge

1шт.

36

86637739

O-RING,0.116" Thk x 0.924" ID, -912, Cl 8, 90 Duro

1шт.

Выбрано товаров: 36
