Запчасти Case IH STEIGER 500 (35.204.BQ[10]) - AUXILIARY CONTROL VALVE - 8 SPOOL, W/ TRAILER BRAKES (35) - HYDRAULIC SYSTEMS

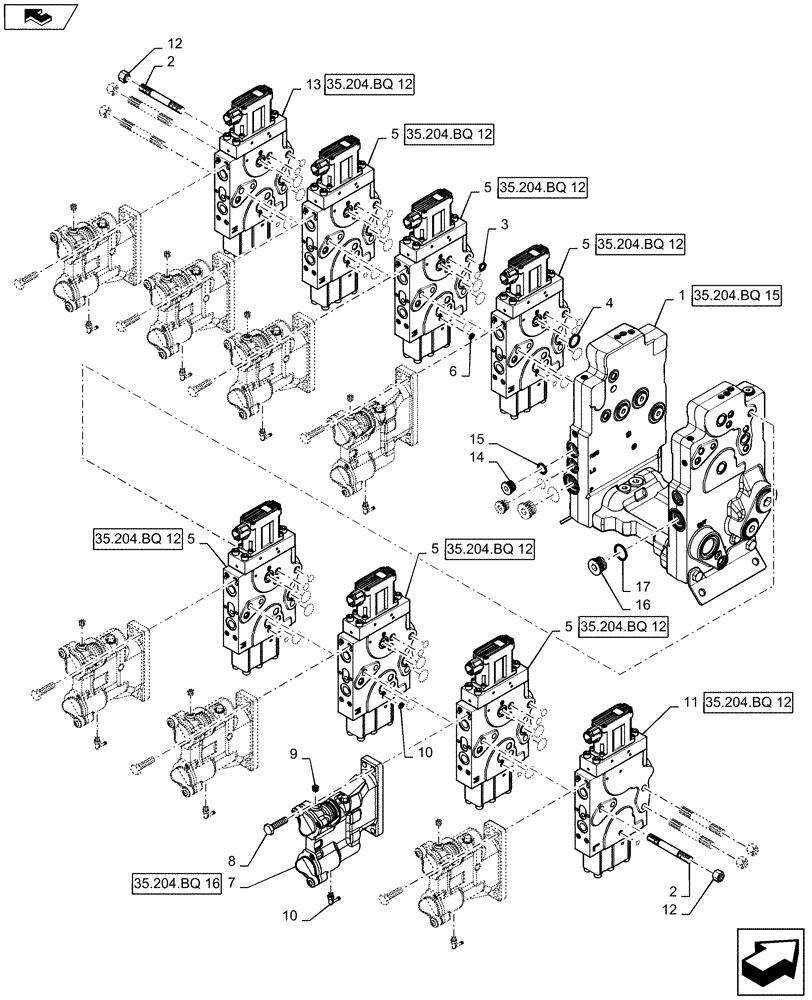

Схема запчастей Case IH STEIGER 500 - (35.204.BQ[10]) - AUXILIARY CONTROL VALVE - 8 SPOOL, W/ TRAILER BRAKES (35) - HYDRAULIC SYSTEMS
12
1
8
5
2
10
3
35.204.bq 12
35.204.bq 16
35.204.bq 12
5
4
5
5
14
17
35.204.bq 15
12
home
35.204.bq 12
35.204.bq 12
35.204.bq 12
7
5
35.204.bq 12
11
15
10
9
16
6
35.204.bq 12
13
2
5
35.204.bq 12

Артикул

Название

Примечание

Количество

1

47434164

HYDRAULIC MANIFOLD

Connector Assembly

1шт.

2

87664023

STUD,M12 x 1.75 x 230mm

Stud, M12 x 1.75 x 230 mm L

3шт.

3

87635379

O-RING,2.62mm Thk x 9.19mm ID, -110, 80 Duro

36шт.

4

87635382

O-RING,2.62mm Thk x 20.29mm ID, -117, 80 Duro

51шт.

5

47434186

HYD VALVE SECTION

Aux., Main

7шт.

5

47434186R

REMAN-HYD VALVE

Reman For New PN 47434186

7шт.

5

47434186C

CORE-VALVE HYD

Return Number

7шт.

6

87635376

O-RING,2.62mm Thk x 3.63mm ID, -105, 80 Duro

24шт.

7

435375A1

VALVE

8шт.

8

628-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

32шт.

9

217-429

PLUG,Hex Soc, 1/8" - 27 NPTF

8шт.

10

1289481C1

ELBOW,1/8" NPT x 1/4" Hose Barb

90 DEG 1/8 NPT BARBED

8шт.

11

47434187

HYD VALVE SECTION

Aux. Valve - Right

1шт.

11

47434187R

REMAN-HYD VALVE

Reman For New PN 47434187

1шт.

11

47434187C

CORE-VALVE HYD

Return Number

1шт.

12

829-1312

NUT,M12 x 1.75, Cl 10

6шт.

13

47434188

HYD VALVE SECTION

Aux. valve - Left

1шт.

13

47434188R

REMAN-HYD VALVE

Reman For New PN 47434188

1шт.

13

47434188C

CORE-VALVE HYD

Return Number

1шт.

14

221578A1

PLUG,M18 x 1.5 ORB

Incl 16

2шт.

15

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

2шт.

16

221580A1

PLUG,M27 x 2 ORB

Incl 18

2шт.

17

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

2шт.

Выбрано товаров: 23
