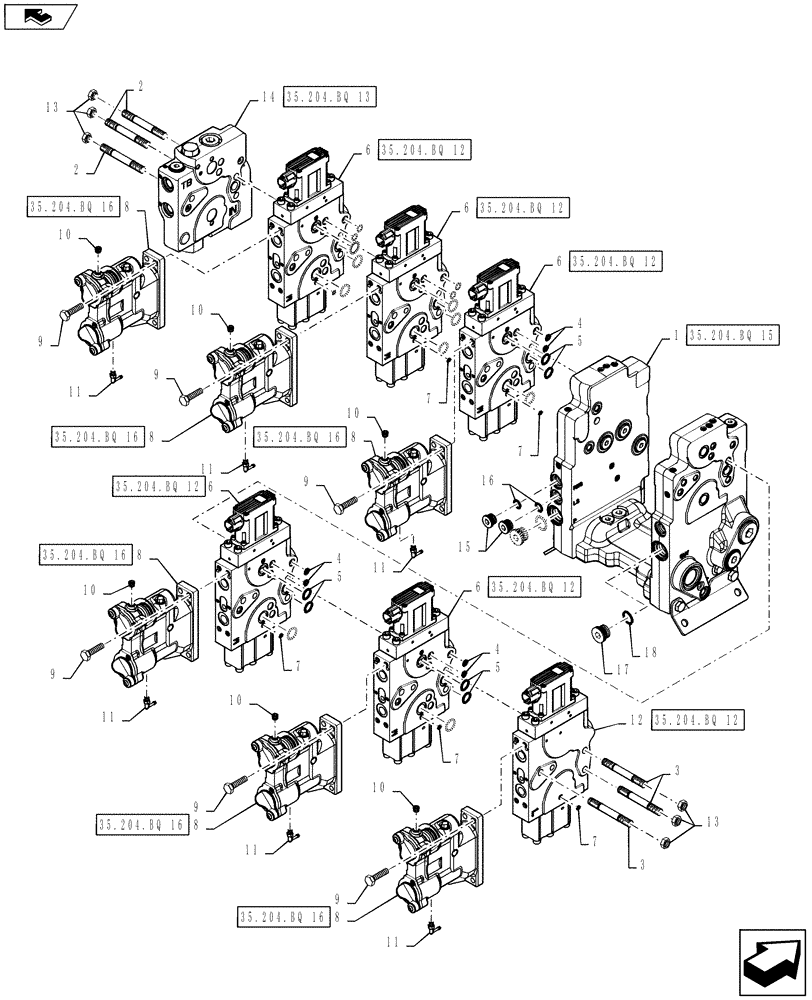

Запчасти Case IH STEIGER 500 (35.204.BQ[09]) - AUXILIARY CONTROL VALVE - 6 SPOOL, W/ TRAILER BRAKES (35) - HYDRAULIC SYSTEMS

1

47434164

HYDRAULIC MANIFOLD

Connector Assembly

1шт.

2

87604618

STUD,M12 x 1.75 x 185mm

Stud, M12 x 1.75 x 185 mm L

3шт.

3

87713488

THREADED TIE-ROD

Tie, M12 X 1.75 x 240 mm L

3шт.

4

87635379

O-RING,2.62mm Thk x 9.19mm ID, -110, 80 Duro

28шт.

5

87635382

O-RING,2.62mm Thk x 20.29mm ID, -117, 80 Duro

39шт.

6

47434186

HYD VALVE SECTION

Aux., Main

5шт.

6

47434186R

REMAN-HYD VALVE

Reman For New PN 47434186

5шт.

6

47434186C

CORE-VALVE HYD

Return Number

5шт.

7

87635376

O-RING,2.62mm Thk x 3.63mm ID, -105, 80 Duro

18шт.

8

435375A1

VALVE

6шт.

9

628-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

24шт.

10

217-429

PLUG,Hex Soc, 1/8" - 27 NPTF

6шт.

11

1289481C1

ELBOW,1/8" NPT x 1/4" Hose Barb

90 DEG 1/8 NPT BARBED

6шт.

12

47434188

HYD VALVE SECTION

Aux. Valve - Left

1шт.

12

47434188R

REMAN-HYD VALVE

Reman For New PN 47434188

1шт.

12

47434188C

CORE-VALVE HYD

Return Number

1шт.

13

829-1312

NUT,M12 x 1.75, Cl 10

6шт.

14

84305371

VALVE

Trailer Brake

1шт.

15

221578A1

PLUG,M18 x 1.5 ORB

Incl 16

2шт.

16

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

2шт.

17

221580A1

PLUG,M27 x 2 ORB

Incl 18

2шт.

18

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

2шт.
