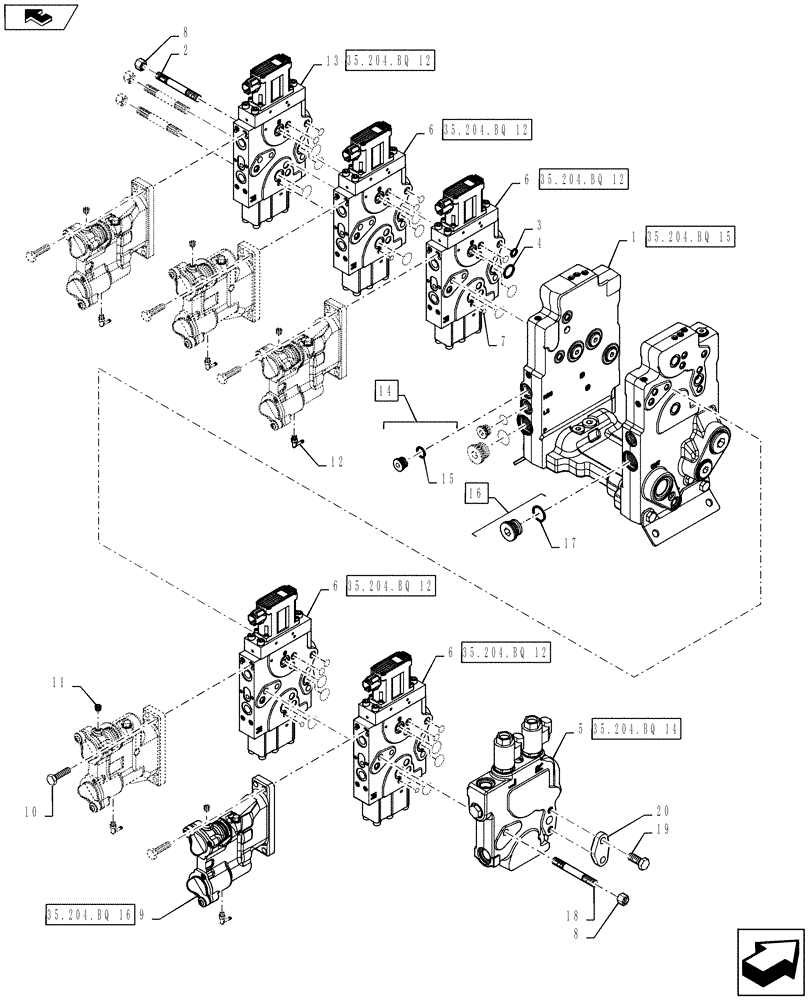

Запчасти Case IH STEIGER 500 (35.204.BQ[07]) - AUXILIARY CONTROL VALVE - 5 SPOOL W/ THREE POINT HITCH (35) - HYDRAULIC SYSTEMS

1

47434164

HYDRAULIC MANIFOLD

Connector Assembly

1шт.

2

87604618

STUD,M12 x 1.75 x 185mm

Stud, Tie, M12 x 1.75 x 185mm L

3шт.

3

87635379

O-RING,2.62mm Thk x 9.19mm ID, -110, 80 Duro

24шт.

4

87635382

O-RING,2.62mm Thk x 20.29mm ID, -117, 80 Duro

34шт.

5

84203467

HYD VALVE SECTION

Three Point Hitch

1шт.

6

47434186

HYD VALVE SECTION

Auxiliary, Main

3шт.

6

47434186R

REMAN-HYD VALVE

Reman For New PN 47434186

3шт.

6

47434186C

CORE-VALVE HYD

Return Number

3шт.

7

87635376

O-RING,2.62mm Thk x 3.63mm ID, -105, 80 Duro

15шт.

8

829-1312

NUT,M12 x 1.75, Cl 10

4шт.

9

435375A1

VALVE

5шт.

10

628-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

20шт.

11

217-429

PLUG,Hex Soc, 1/8" - 27 NPTF

5шт.

12

1289481C1

ELBOW,1/8" NPT x 1/4" Hose Barb

90 DEG, 1/8 NPT Barbed

5шт.

13

47434187

HYD VALVE SECTION

Auxiliary Valve, Left

1шт.

13

47434187R

REMAN-HYD VALVE

Reman For New PN 47434187

1шт.

13

47434187C

CORE-VALVE HYD

Return Number

1шт.

14

221578A1

PLUG,M18 x 1.5 ORB

2шт.

15

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

2шт.

16

221580A1

PLUG,M27 x 2 ORB

2шт.

17

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

2шт.

18

87687049

STUD

Tie, M12 x 1.75 x 195mm L

1шт.

19

87026184

BOLT,Hex, M12 x 170mm, Cl 10.9

2шт.

20

84203478

COVER

Hitch Inlet

1шт.
