Запчасти Case IH STEIGER 500 (35.204.AJ[01]) - AUXILIARY CONTROL VALVE - DRAIN HOSES - 4, 6, & 8 SPOOL (35) - HYDRAULIC SYSTEMS

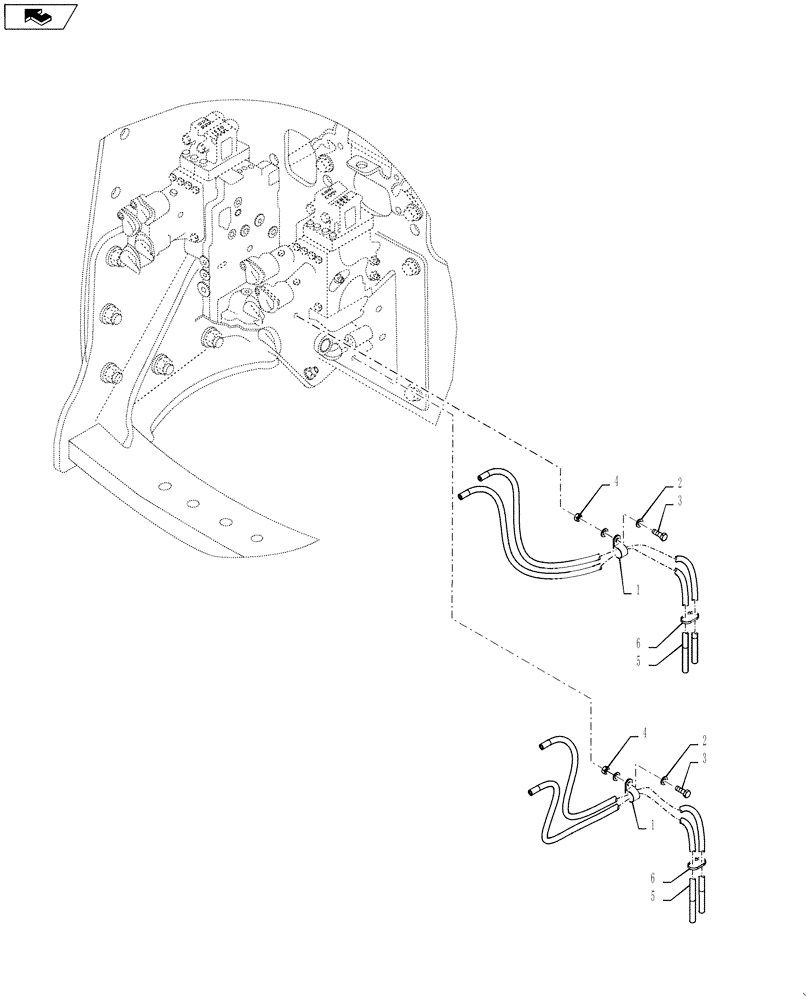

Схема запчастей Case IH STEIGER 500 - (35.204.AJ[01]) - AUXILIARY CONTROL VALVE - DRAIN HOSES - 4, 6, & 8 SPOOL (35) - HYDRAULIC SYSTEMS
2
5
2
5
6
4
1
3
home
5

Артикул

Название

Примечание

Количество

1

515-23254

CLAMP,1", Insul, 3/8" Bolt

2шт.

2

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

3

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

2шт.

4

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

5

31-1182

HOSE,6.35mm ID x 925mm L, SAE 30R2

Bulk, .25 I.D., Cut to Length; 925mm (36.50 IN)

1шт.

6

435437A1

CABLE TIE,3/16" x 7 1/4"

175 - 200mm

2шт.

Выбрано товаров: 6
