Запчасти Case IH STEIGER 500 (33.110.BK [02]) - PARKING BRAKE - VALVE ASSEMBLY AND FITTINGS, TOW/PARK BRAKE - NA (33) - BRAKES & CONTROLS

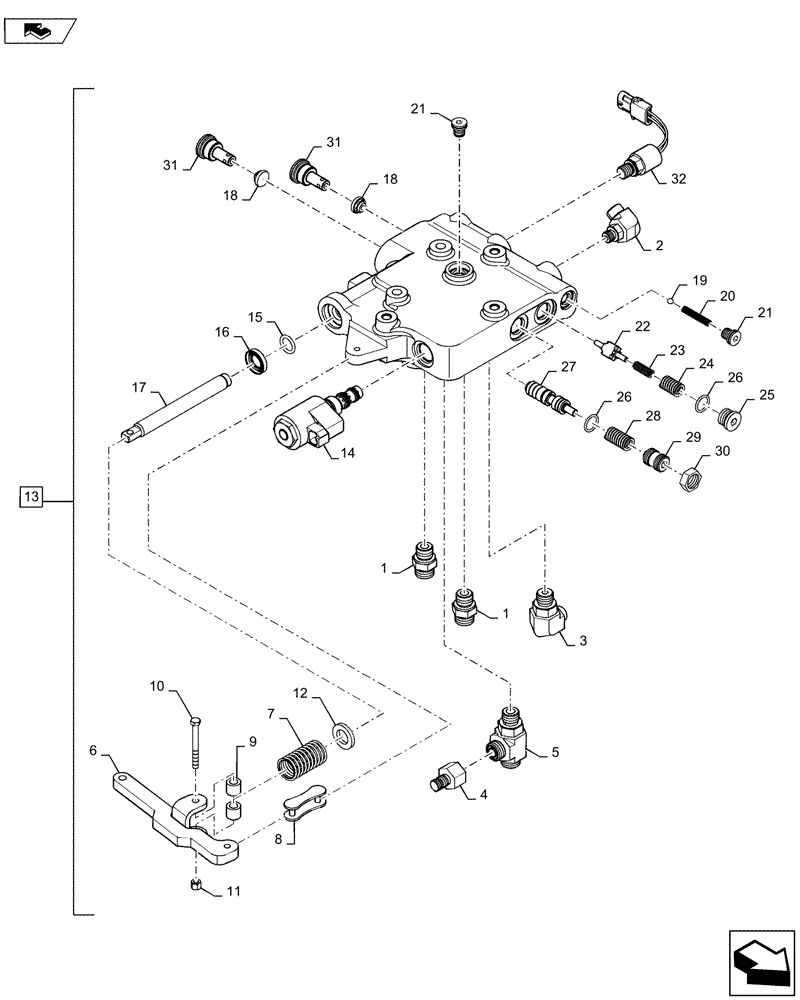

Схема запчастей Case IH STEIGER 500 - (33.110.BK [02]) - PARKING BRAKE - VALVE ASSEMBLY AND FITTINGS, TOW/PARK BRAKE - NA (33) - BRAKES & CONTROLS
22
18
12
3
14
26
2
30
5
24
10
7
23
9
16
26
20
11
15
17
6
32
home
31
4
28
21
19
31
18
27
29
8
25
13
21
1

Артикул

Название

Примечание

Количество

1

700-102

HYD CONNECTOR,13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

2шт.

2

84495761

BRAKE VALVE

1шт.

3

700-345

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x M18 x 1.5 Male ORB

3шт.

4

190316A1

COUPLING

Coupler Assembly, Diagnostic

1шт.

5

700-412

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

1шт.

6

47401716

ARM

Tow Valve Manual Pump, Wheeled

1шт.

6

84212527

ARM

Tow Valve Manual Pump, QuadTrac

1шт.

7

361897A1

SPRING

Compression

1шт.

8

242-4412

CHAIN LINK

#2060H Double Pitch Connecting

1шт.

9

392748A1

SPACER

Tube

2шт.

10

827-6060

BOLT,Hex, M6 x 60mm, Cl 10.9

Wheeled

1шт.

10

827-6050

BOLT,Hex, M6 x 50mm, Cl 10.9

QuadTrac

1шт.

11

832-10406

NUT,M6 x 1, Cl 8

Wheeled

1шт.

12

896-12016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

1шт.

13

84176122

BRAKE VALVE

Valve Assembly, Tow/Park Brake, Incl 14-32

1шт.

14

87675608

SOLENOID

Check

1шт.

15

238-5208

O-RING,0.139" Thk x 0.609" ID, -208, Cl 5, 75 Duro

1шт.

16

A63399

OIL SEAL,15.87mm ID x 28.73mm OD x 6.35mm Thk

Spool

1шт.

17

84187368

SPOOL

Manual Pump

1шт.

18

1994615C2

VALVE, CHECK

Cage Assembly

2шт.

19

511-1060

BALL,6mm Dia

1шт.

20

352025A1

SPRING

Brake Overpressure Relief

1шт.

21

221573A1

PLUG,Hex Soc, M12 x 1.5, ORB

2шт.

22

84178571

VALVE

Spool, Regulator Relief

1шт.

23

84184300

SPRING

Regulator Relief, Inner

1шт.

24

84181936

SPRING

Regulator Relief, Outer

1шт.

25

218-5210

PLUG,Hex, 3/4"-16 ORB

1шт.

26

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

27

84178572

VALVE

Spool, Regulator

1шт.

28

84181935

SPRING

Regulator

1шт.

29

84184229

PLUG

Adjusting

1шт.

30

218-1278

BHD LOCK NUT,Blkhd, 3/4"-16

1шт.

31

84181937

PLUG

Check Retainer

2шт.

32

339529A1

PRESSURE SWITCH

Park Brake

1шт.

Выбрано товаров: 34
