(27.106.AC[01]) - REAR AXLE ASSY - CARRIER ASSY. - LH DIFF. BEARING

Запчасти Case IH STEIGER 500 (27.106.AC[01]) - REAR AXLE ASSY - CARRIER ASSY. - LH DIFF. BEARING (27) - REAR AXLE SYSTEM

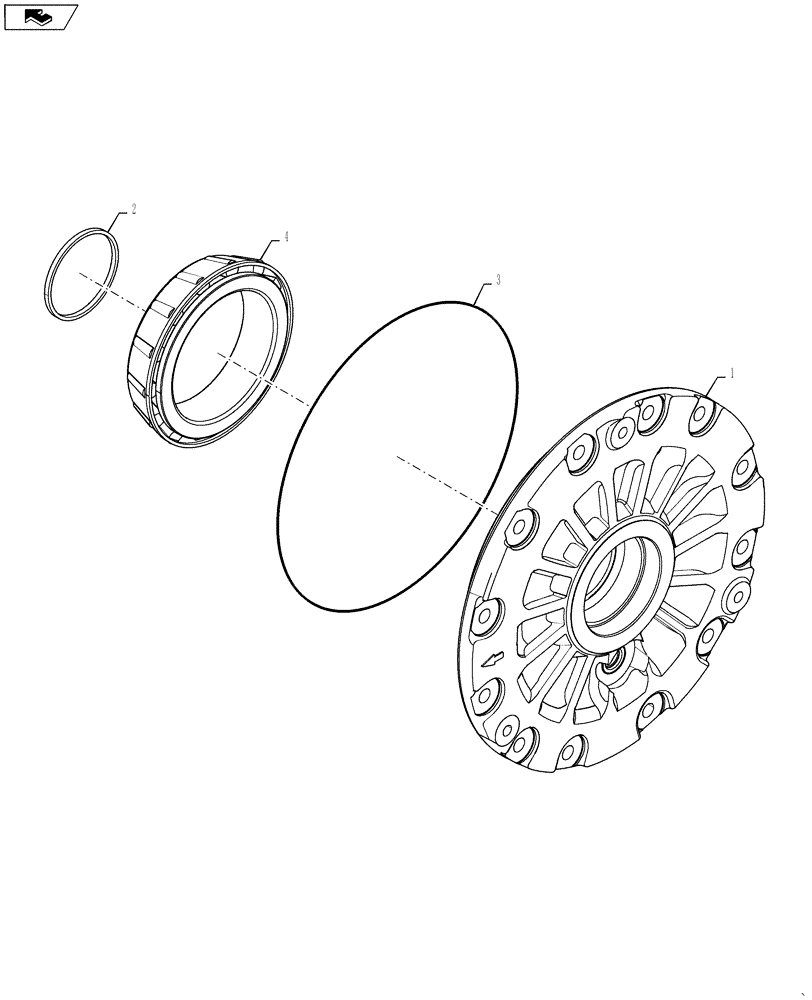

Схема запчастей Case IH STEIGER 500 - (27.106.AC[01]) - REAR AXLE ASSY - CARRIER ASSY. - LH DIFF. BEARING (27) - REAR AXLE SYSTEM
4
home
2
1
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47497743

BEARING CARRIER

LH Diff. Bearing

1шт.

2

139060C2

SEAL,82.6mm ID x 88.6mm OD x 4.5mm Thk

Bearing Seal

1шт.

3

70925498

O-RING,0.139" Thk x 10.484" ID, -275, Cl 5, 75 Duro

1шт.

4

253932A1

ROLLER BEARING,119.99mm ID x 37.98mm W

1шт.
