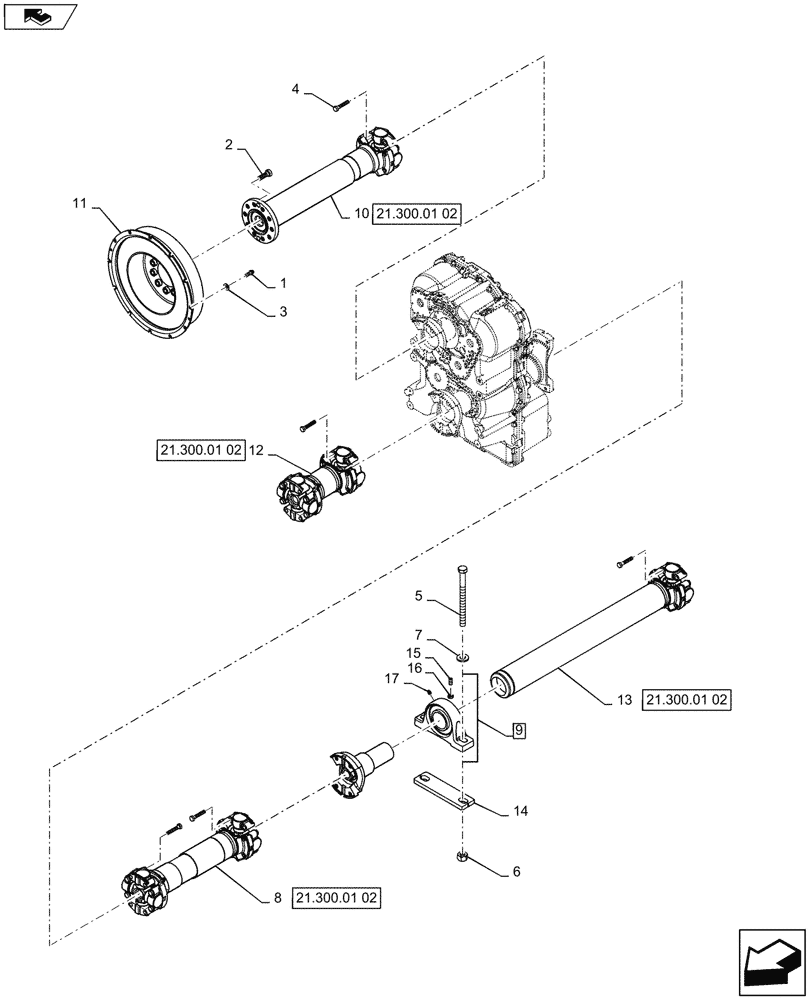

Запчасти Case IH STEIGER 500 (21.300.01[01]) - DRIVESHAFT MOUNTING - WITH 8C TRANSMISSION - STEIGER 500 (21) - TRANSMISSION

1

47379836

12 PT SCREW

12 PT SCREW (Replaces 80-1716 This Application)

12шт.

2

426-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 8

10шт.

3

86625244

WASHER,0.47" ID x 1" OD x 0.1" Thk

0.469X1X0.105 HTS ZND HDN

12шт.

4

827-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

24шт.

5

827-20250

BOLT,Hex, M20 x 2.5 x 250mm, Cl 10.9

2шт.

6

829-1420

NUT,M20, Cl 10

2шт.

7

896-15020

WASHER,22mm ID x 44mm OD x 5mm Thk

2шт.

8

84302366

DRIVE SHAFT

Rear Axle

1шт.

9

87385925

BEARING CARRIER,68.26mm ID

Pillow Block, Incl 15 - 17

1шт.

10

87440505

DRIVE SHAFT

Engine

1шт.

11

378758A2

DAMPER

Vibration

1шт.

12

402186A1

DRIVE SHAFT

Front Axle

1шт.

13

402187A1

DRIVE SHAFT

Articulation

1шт.

14

406056A1

SPACER

Pillow Block

1шт.

15

84-63812

SET SCREW,Hex Soc, 3/8"-24 x 3/4"

1шт.

16

425-146

JAM NUT,3/8" - 16, Gr 5

1шт.

17

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.
