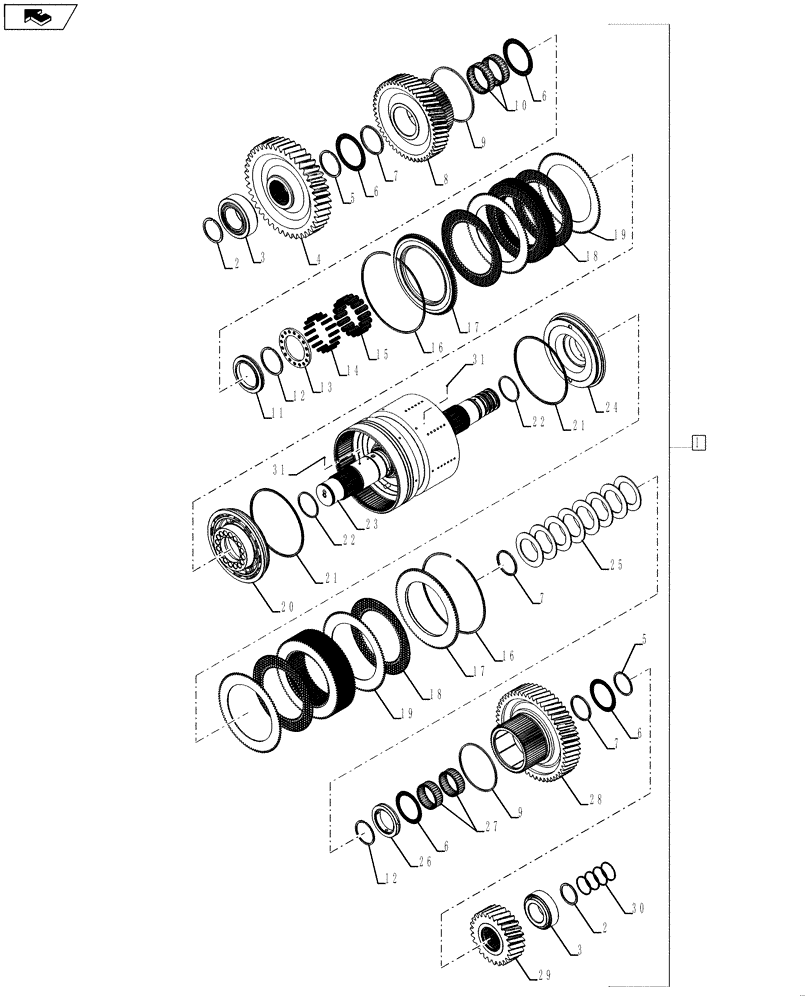

Запчасти Case IH STEIGER 500 (21.155.08) - POWER SHIFT TRANSMISSION - 4TH SHAFT, PS6, 9C (21) - TRANSMISSION

1

84314689

SHAFT

4th, 9" Clutch, 9C, Incl 2 - 31

1шт.

2

427674A1

SNAP RING

2.5mm, 0.098"

1шт.

2

427675A1

SNAP RING

2.6mm, 0.102"

1шт.

2

427676A1

SNAP RING

2.7mm, 0.106"

1шт.

2

427678A1

SNAP RING

2.8mm, 0.110"

1шт.

2

427679A1

SNAP RING

2.9mm, 0.114"

1шт.

2

427680A1

SNAP RING

3.0mm, 0.118"

1шт.

3

84314690

ROLLER BEARING

Taper

2шт.

4

84314709

GEAR

Drive, 4R

1шт.

5

428163A1

RING, SNAP

Retaining

4шт.

6

84314710

THRUST BEARING

4шт.

7

362611A1

SPACER

Needle Bearing

3шт.

8

84314730

DRIVEN GEAR

4R

1шт.

9

392073A1

SEALING RING

SEALRING

2шт.

10

84314731

NEEDLE BEARING

2шт.

11

87350321

THRUST WASHER

1шт.

12

S5040S00F

RING

Seal

2шт.

13

362615A1

PLATE

Spring

1шт.

14

84314631

SPRING

Return

16шт.

15

84314633

SPRING

Return

16шт.

16

359235A1

RING, SNAP

RING SNAP

2шт.

17

84314733

CLUTCH PLATE

Clutch End

2шт.

18

362618A1

CLUTCH DISC

Faced

26шт.

19

362628A1

CLUTCH DISC

Steel, 2.40mm

26шт.

19

362629A1

CLUTCH DISC

Steel, 2.60mm

26шт.

20

84314691

PISTON

9", RR Clutch

1шт.

21

87431400

RING

D-Ring

2шт.

22

S4410S00F

RING

Seal

2шт.

23

84314734

SHAFT

4th Drum Assy

1шт.

24

364825A1

PISTON

9", FR Clutch

1шт.

25

364826A1

PLATE

Spring

8шт.

26

87350331

THRUST WASHER

1шт.

27

S5070S00F

BEARING, NEEDLE,76.2mm ID x 85.5mm OD x 31.5mm W

2шт.

28

84314736

DRIVEN GEAR

4F

1шт.

29

84314737

GEAR

Drive, 4F

1шт.

30

87431401

RING

Seal

4шт.

31

S14701960

BALL,3.968mm OD

Steel

2шт.
