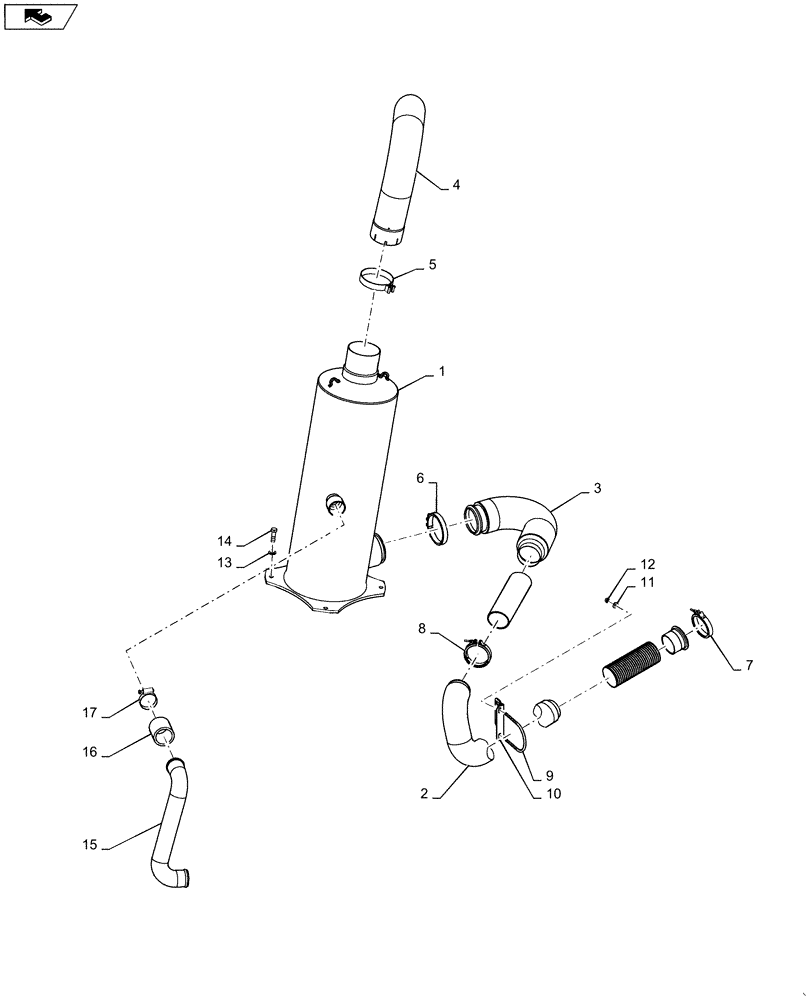

Запчасти Case IH STEIGER 500 (10.500.11[01]) - EXHAUST SYSTEM - TIER 2 (NO SCR) (10) - ENGINE

1

84286911

MUFFLER,Aspirated

Tier 2 Aspirating Exhaust, Steiger 550 - 600, QuadTrac 550 - 600

1шт.

1

84301142

MUFFLER

Tier 2 Aspirating Exhaust, Steiger 500, QuadTrac 450 - 500

1шт.

2

84301624

EXHAUST SYSTEM PIPE

Turbo Tube And Flexpipe

1шт.

3

84301212

EXHAUST SYSTEM PIPE

Exhaust

1шт.

4

84301167

ELBOW

Muffler Top

1шт.

5

87430634

CLAMP,159.5mm ID

Muffler/Elbow

1шт.

6

84224087

CLAMP,149.4mm

149mm OD

1шт.

7

84347357

CLAMP

Exhaust

1шт.

8

87487061

CLAMP,116.9mm - 118.2mm

122mm OD

1шт.

9

84354957

U-BOLT

Exhaust Support

1шт.

10

84290528

BRACKET, SUPPORTING

U-Bolt

1шт.

11

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

14шт.

12

832-46410

NUT,M10 x 1.5, Cl 8

10шт.

13

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

4шт.

14

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

4шт.

15

84311744

AIR INTAKE TUBE

Aspirator, Steiger 550 - 600, QuadTrac 550 - 600

1шт.

15

84311743

AIR INTAKE TUBE

Aspirator, Steiger 500, QuadTrac 450 - 500

1шт.

16

84157240

HOSE,50.80 mm ID x 65.00 mm, SAE 30R7, SAE J30

Jumper

1шт.

17

214-3240

HOSE CLAMP,1-3/4" - 2-5/8", HD Worm, W/ Liner

2шт.
