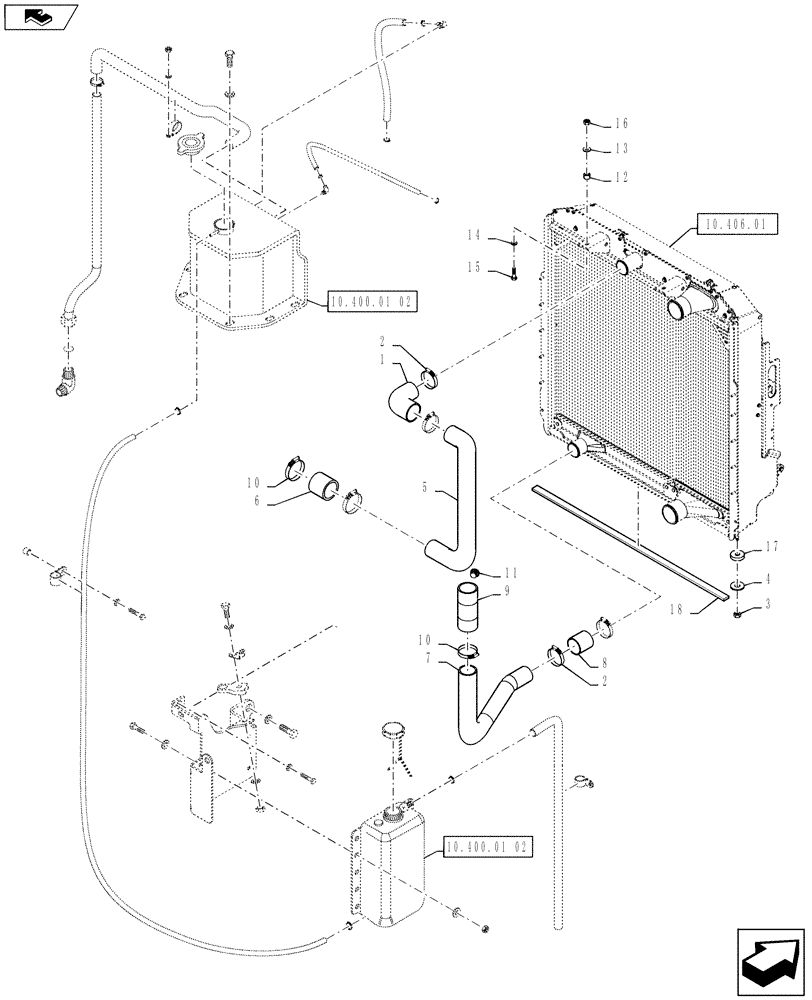

Запчасти Case IH STEIGER 500 (10.400.01[01]) - COOLING SYSTEM - ENGINE - STEIGER 500, QUADTRAC 450 & 500 (10) - ENGINE

1

84565815

RADIATOR HOSE

Upper

1шт.

2

L115549

CLAMP,69.85mm - 92.08mm

Hose, Constant Torque

4шт.

3

829-1416

NUT,M16, Cl 10

2шт.

4

6100024

WASHER,17mm ID x 50mm OD x 3mm Thk

17 X 50 X 3MM DIN 9021 CST ZND

2шт.

5

84499056

TUBE

Upper Radiator

1шт.

6

84565782

FLEXIBLE HOSE,62mm ID x 100mm L

Cooler

1шт.

7

84325507

TUBE

Lower Radiator

1шт.

8

84421036

RADIATOR HOSE,76.2mm ID x 139mm L

76.2mm ID 139mm Length

1шт.

9

84366416

RADIATOR HOSE

Connector

1шт.

10

L115548

CLAMP,57.15mm - 79.38mm

Constant Torque

4шт.

11

87308399

PLUG

1/2 IN.

3шт.

12

CASL13142

BUSHING

Rubber

2шт.

13

435433A1

WASHER,13.5mm ID x 44.5mm OD x 3mm Thick

13.5 X 44.5 X 3 CST ZNC

2шт.

14

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

15

827-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

2шт.

16

832-10412

NUT,M12 x 1.75, Cl 8

2шт.

17

86550698

INSULATOR

Radiator Mount

2шт.

18

47458712

SEALING STRIP

1шт.
