Запчасти Case IH STEIGER 500 (10.214.01[02]) - FUEL PUMP, SIGHTGLASS (10) - ENGINE

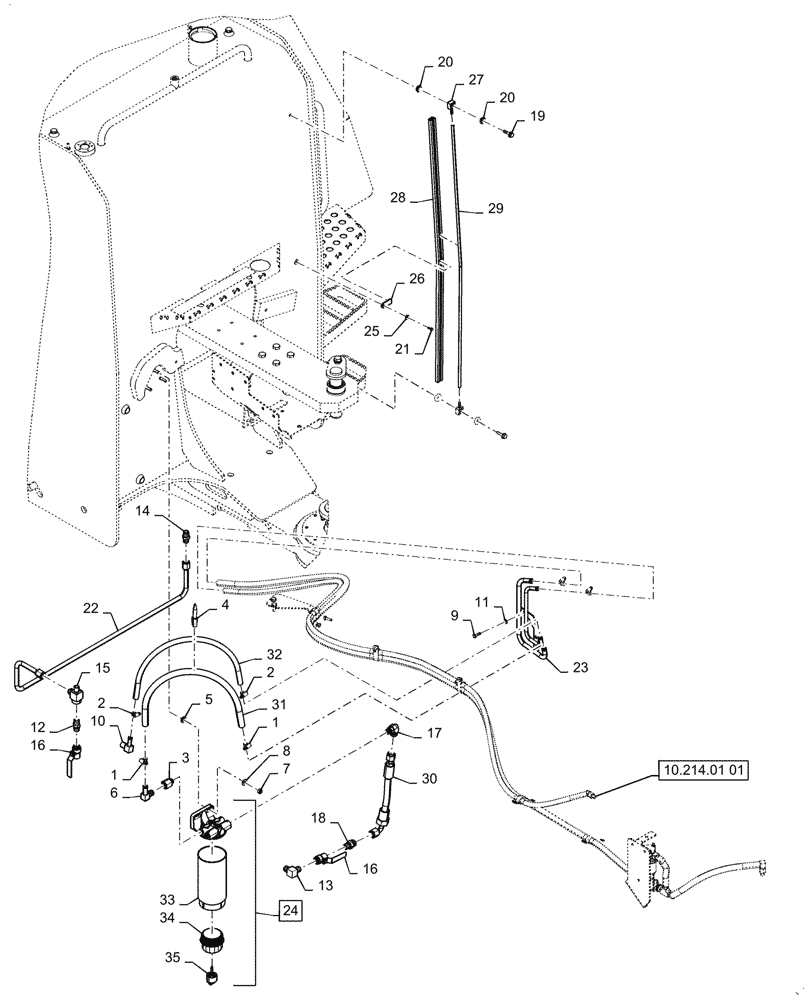

Схема запчастей Case IH STEIGER 500 - (10.214.01[02]) - FUEL PUMP, SIGHTGLASS (10) - ENGINE
10.214.01 01
19
14
20
5
32
29
6
10
23
12
24
22
25
8
28
3
18
26
11
33
4
35
34
16
16
31
2
17
7
9
20
21
2
13
1
1
27
30
15

Артикул

Название

Примечание

Количество

1

214-1408

HOSE CLAMP,11.2mm - 19.8mm

2шт.

2

214-1406

HOSE CLAMP,#06, 0.44" - 0.78", Type F Worm

2шт.

3

84322798

ADAPTER

M18 x 1/2" NPTF

1шт.

4

327144A1

STRAP,328mm L

1шт.

5

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

6

217-134

ELBOW,90 Degree Elbow, 5/8" Hose Barb x 1/2" Male NPTF

1шт.

7

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

8

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

2шт.

9

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

2шт.

10

217-335

FITTING,90 Degree Elbow, 1/2" Hose Barb x 1/2" Male NPTF

1шт.

11

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

12

217-1072

HYD CONNECTOR,1/2" - 14 NPTF

1шт.

13

217-1226

ELBOW,90 Degree, 1/2"-14 Male

1шт.

14

218-445

HYD CONNECTOR,7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

1шт.

15

31-1000

TEE

1/2" NPT x 1/2" NPTF x 3/4" - 14

1шт.

16

435446A1

SHUT-OFF VALVE,1/2"-14 NPTF, Ball Type

2шт.

17

84175924

FITTING

1" - 14 ORFS x M18 x 1.5

1шт.

18

84319917

HYD CONNECTOR,1/2"-14 NPTF x 1"-14 ORFS

1шт.

19

844-10035

BOLT,Hex, M10 x 35mm, Cl 8.8

2шт.

20

337248A1

O-RING,0.139" Thk x 0.484" ID, -206, Cl 5, 75 Duro

4шт.

21

627-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 10.9, Full Thd

1шт.

22

84142315

FUEL TUBE,15.88mm OD

Fuel Crossover

1шт.

23

84197933

FUEL TUBE

Fuel Lines Hinge

1шт.

24

84322789

FUEL FILTER

Assy, Incl 33 - 35

1шт.

25

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

26

402800A1

BRACKET

Fuel Sight Gauge

1шт.

27

352767A1

FITTING

Sight Gauge

2шт.

28

349868A1

CHANNEL

Fuel Sight Gauge

1шт.

29

337240A1

FUEL HOSE,6.35 mm ID x 1206.00 mm

Sight Gauge

1шт.

30

84330394

HOSE ASSY.,15.88mm ID x 360mm L, SAE 100R6

Fuel Supply

1шт.

31

84197929

FUEL HOSE,15.9mm ID x 723.9mm L

1шт.

32

8500164

HOSE

1/2" OD x 710mm L

1шт.

33

84394226

ELEMENT

Fuel Filter

1шт.

34

84417009

SENSOR

Water In Fuel

1шт.

35

84417002

FILTER BOWL

Water Collection

1шт.

Выбрано товаров: 35
