Запчасти Case IH STEIGER 500 (88.090.07) - DIA KIT - DECELERATOR PEDAL (88) - ACCESSORIES

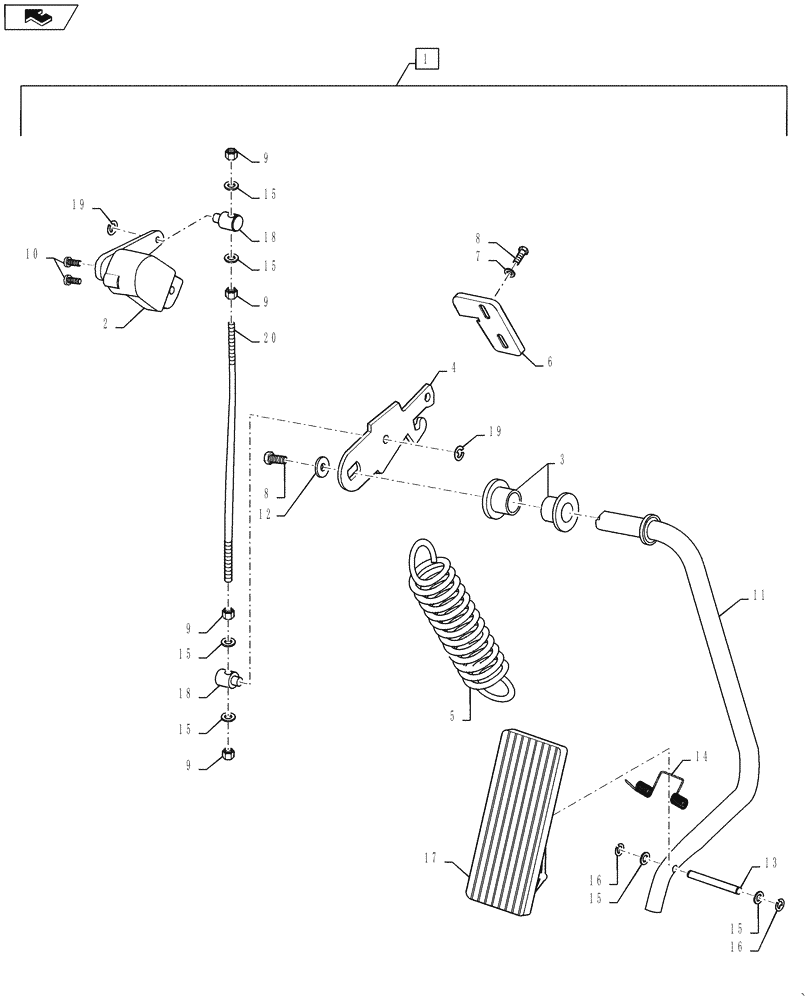

Схема запчастей Case IH STEIGER 500 - (88.090.07) - DIA KIT - DECELERATOR PEDAL (88) - ACCESSORIES
15
19
1
20
4
15
9
19
9
9
18
15
17
10
7
15
home
5
15
16
9
11
14
8
16
6
8
2
15
12
13
18
3

Артикул

Название

Примечание

Количество

1

84302098

KIT

Decelerator Pedal, Incl 2 - 20, Refer To 90.112.02

1шт.

2

84129020

SENSOR

Foot Throttle

1шт.

3

300891A1

FLANGED BEARING

Flanged

2шт.

4

84225233

BRACKET, SUPPORTING

Decel

1шт.

5

278211A1

SPRING

Extension

1шт.

6

281115A1

BRACKET

Decelerator Stop

1шт.

7

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

8

627-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 10.9, Full Thd

3шт.

9

832-10405

NUT,M5 x .8, Cl 8

4шт.

10

840-1510

SCREW,Pan, M5 x 10mm, Cl 4.8

2шт.

11

328353A2

ROD

Decelerator

1шт.

12

396-41028

WASHER,.281" x 7/8" x .098", HDN

1шт.

13

255291A1

PIN,5mm OD x 56mm L

Throttle Pad

1шт.

14

256776A1

SPRING

Foot Throttle Pad

1шт.

15

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

6шт.

16

800-435

CIRCLIP,M5

2шт.

17

297853A2

PEDAL

Foot Throttle

1шт.

18

307475A1

PIVOT

Control Cable Attachment

2шт.

19

800-316

CIRCLIP,M6

2шт.

20

84216199

THREADED ROD

1шт.

Выбрано товаров: 20
