Запчасти Case IH STEIGER 500 (88.090.04) - DIA KIT - RH WINDOW MONITOR MOUNT (88) - ACCESSORIES

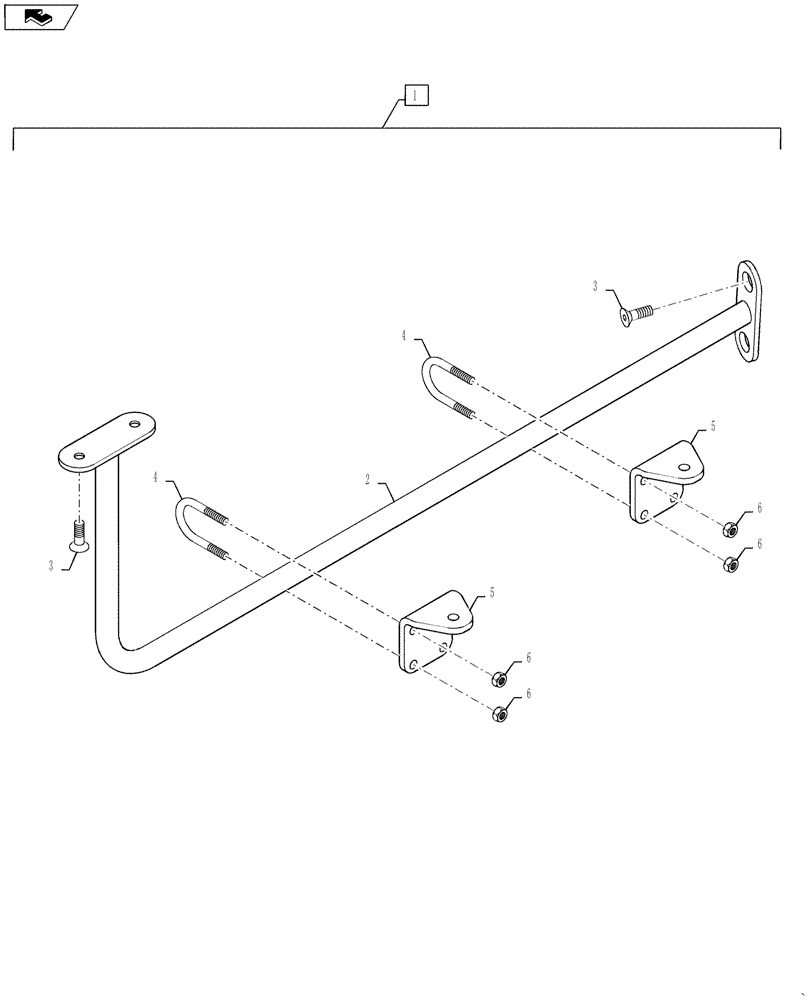

Схема запчастей Case IH STEIGER 500 - (88.090.04) - DIA KIT - RH WINDOW MONITOR MOUNT (88) - ACCESSORIES
1
5
4
3
5
6
6
4
6
3
home
6
2

Артикул

Название

Примечание

Количество

1

84151011

KIT

RH Window Monitor Mount, Incl 2 - 6, Refer To 90.115.06

1шт.

2

84143874

BAR

Monitor Mount

1шт.

3

906035R1

HEX SOC SCREW,Flat Hd, CSK, M8 x 25mm, Cl 10.9

4шт.

4

87526197

U-BOLT,1/4" - 20 x 1", Round, 1-1/8" W, 2" L

4шт.

5

87530660

BRACKET

Monitor Mount

2шт.

6

425-104

NUT,1/4"-20, Cl 5

8шт.

Выбрано товаров: 6
