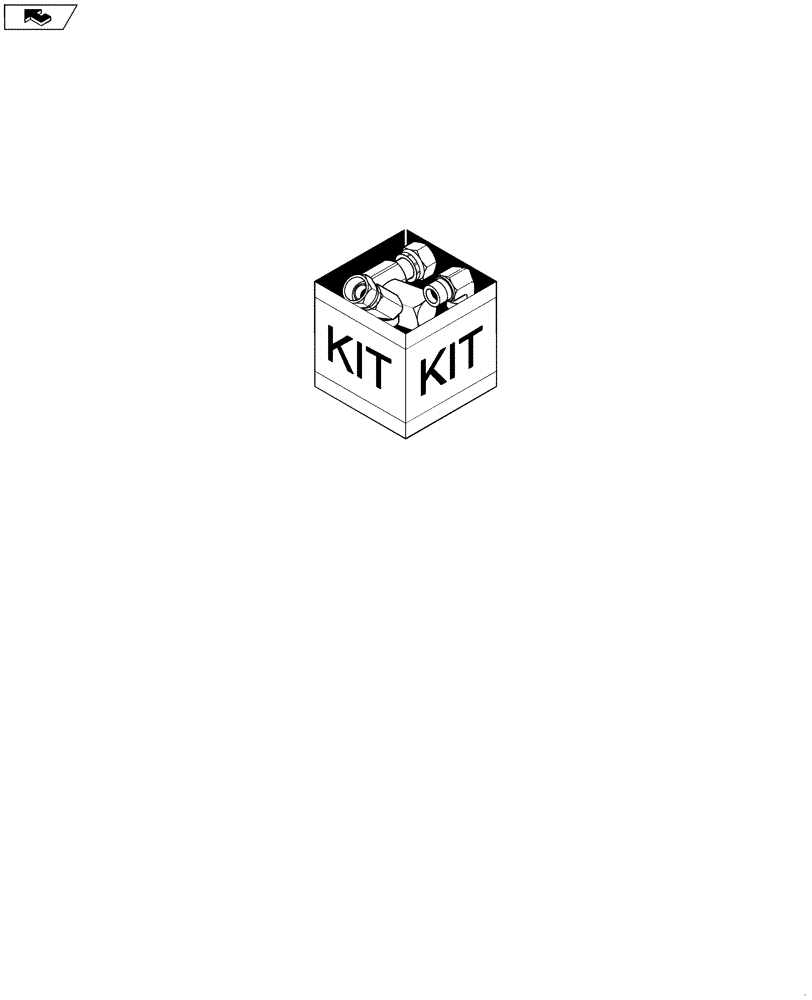

Запчасти Case IH STEIGER 500 (88.090.03) - DIA KIT - "A" POST MONITOR MOUNT (88) - ACCESSORIES

1

84313734

KIT

A Post Monitor Mount, Incl 2 - 8, Refer To 90.115.06

1шт.

2

369275A1

TUBE

Monitor Mount

1шт.

3

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

4

827-8040

BOLT,Hex, M8 x 1.25 x 40mm, Cl 10.9

2шт.

5

371838A1

SPACER,9.5mm ID x 19.1mm OD x 10mm Thk

Round

2шт.

6

87530660

BRACKET

Monitor Mount

1шт.

7

87526197

U-BOLT,1/4" - 20 x 1", Round, 1-1/8" W, 2" L

2шт.

8

425-104

NUT,1/4"-20, Cl 5

4шт.
