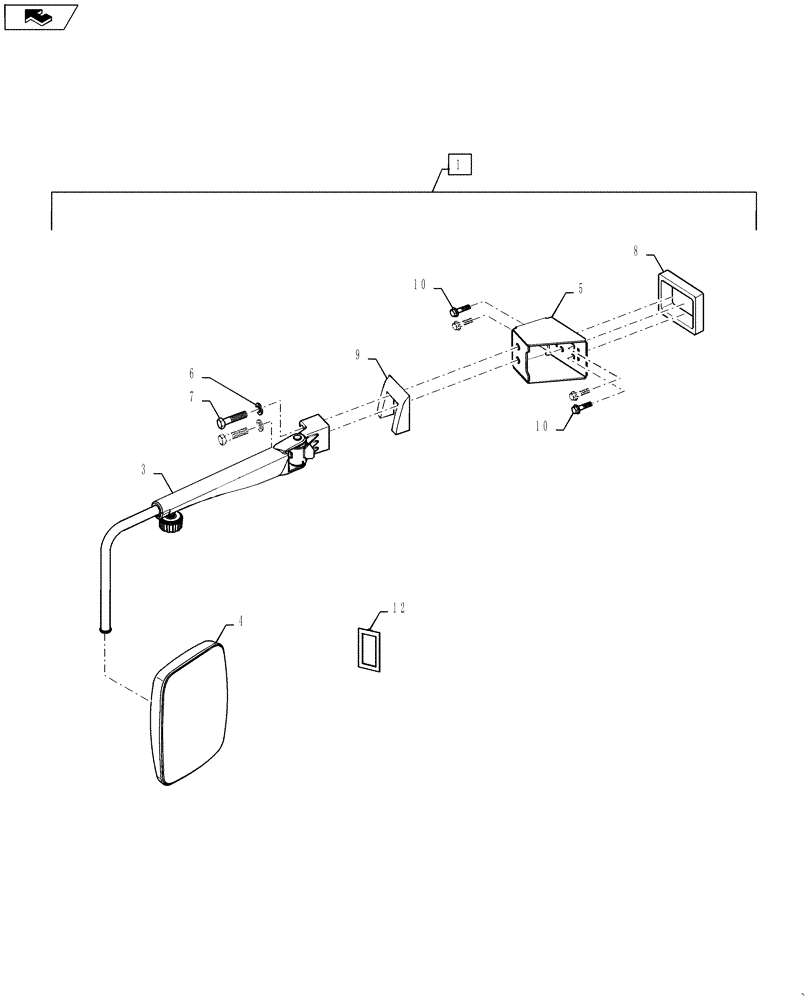

Запчасти Case IH STEIGER 500 (88.090.01) - DIA KIT - MANUAL MIRRORS (88) - ACCESSORIES

1

84313053

KIT

Manual Mirrors, Incl 2 - 12, Refer To 90.118.04

1шт.

2

84545483

INSTRUCTION

Installation Instructions

1шт.

3

87363070

ARM

LH Manual

1шт.

4

87350494

MIRROR ASSY.,240mm x 329mm

Manual

2шт.

5

84307672

BRACKET

Mirror

2шт.

6

896-19012

WASHER,M12 x 24.5 x 3, HT

4шт.

7

514-865

BOLT,Hex, M12 x 1.75 x 80mm, Cl 10.9

4шт.

8

84416211

FOAM INSULATION

Seal, Mirror

2шт.

9

84401325

FOAM INSULATION

Seal, Mirror Roof Opening

2шт.

10

854-10050

BOLT,Hvy Hex, M10 x 50mm, Cl 10.9

8шт.

11

87363073

ARM

RH Manual, Not Illustrated

1шт.

12

47465374

BEZEL

Blanking

1шт.
