Запчасти Case IH STEIGER 500 (88.055.14) - DIA KIT - REAR HID WORK LIGHTS (88) - ACCESSORIES

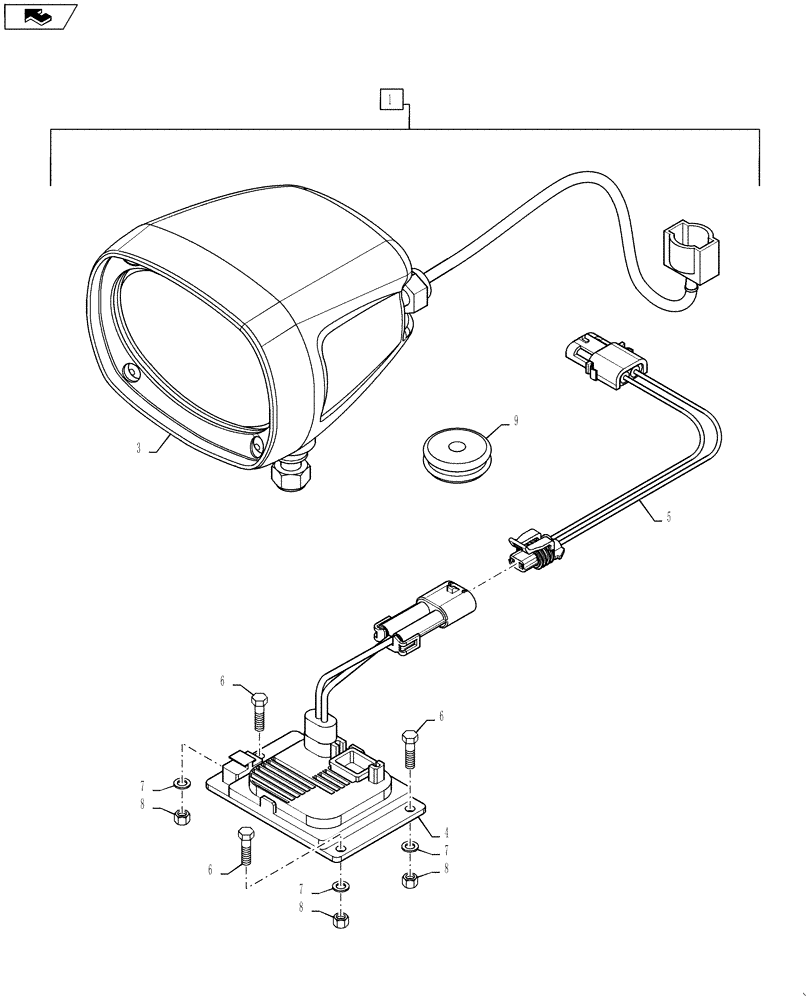

Схема запчастей Case IH STEIGER 500 - (88.055.14) - DIA KIT - REAR HID WORK LIGHTS (88) - ACCESSORIES
5
8
8
7
6
3
1
8
6
7
4
7
9
6
home

Артикул

Название

Примечание

Количество

1

84156115

KIT

Rear HID Flood Lights, Incl 2 - 9, Refer To 55.404.05

1шт.

1

84156118

KIT

Rear HID Trap Lights, Incl 2 - 9, Refer To 55.404.05

1шт.

2

84156120

INSTRUCTION

HID Rear Mounted, Not Illustrated

1шт.

3

87475205

LAMP,HID, 12V, 35W, Clear

Rear HID Flood

2шт.

3

87475202

LAMP

Rear HID Trap

2шт.

4

87475204

BALLAST

Rear HID Light

2шт.

4

87475204R

REMAN ELECT CONTROL

QUADTRAC® 450, QUADTRAC® 500, QUADTRAC® 550, QUADTRAC® 600, STEIGER 500, STEIGER 550, STEIGER 600, All 4WD TRACTOR, Rear HID Light (4/11-)

2шт.

4

87475204C

CORE-ELECTRONIC CONT

Return Number

2шт.

5

87475203

CABLE TERMINAL

To Rear Harness

2шт.

6

614-5020

BOLT,Hex, M5 x 0.8 x 20mm, Cl 8.8, Full Thd

6шт.

7

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

6шт.

8

832-10405

NUT,M5 x .8, Cl 8

6шт.

9

87030421

GROMMET,3/8" ID x 1 1/4" Groove Dia, Str Cut

2шт.

Выбрано товаров: 13
