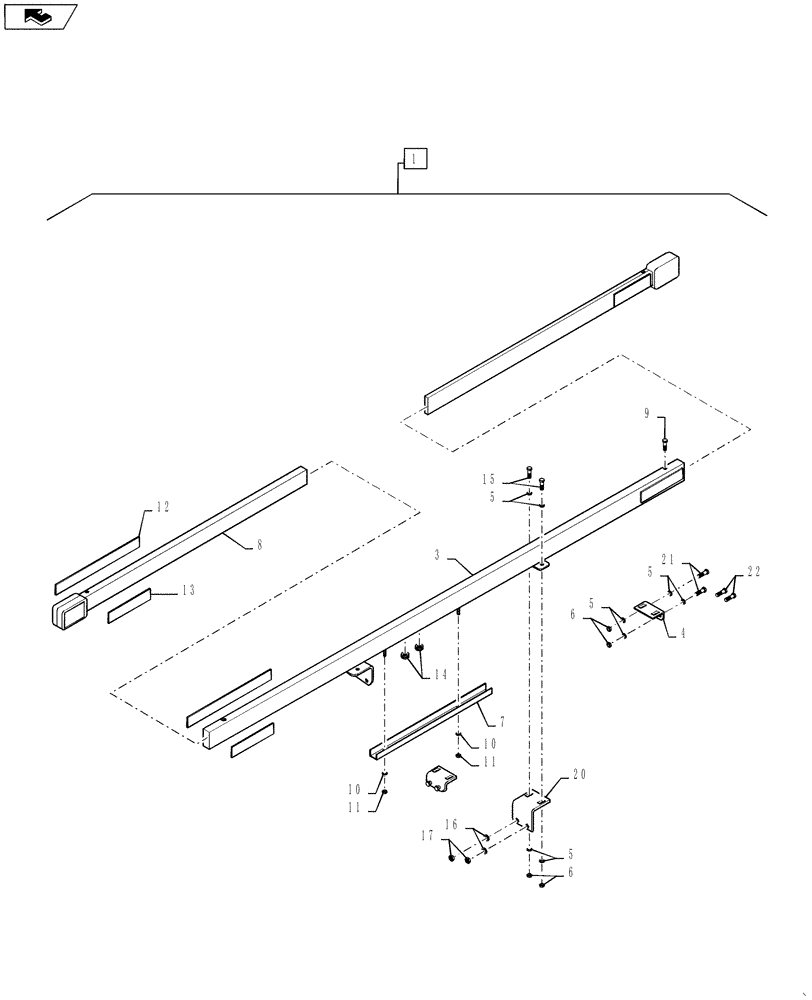

Запчасти Case IH STEIGER 500 (88.055.13) - DIA KIT - MARKER LIGHTS (NORTH AMERICA) (88) - ACCESSORIES

1

84303666

KIT

Marker Light, Incl 2 - 20, Refer To 55.404.07, (North America)

1шт.

2

87348484

TUBE

Marker Light Weldment

1шт.

3

84350097

BRACKET, SUPPORTING

2шт.

4

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

16шт.

5

829-1410

NUT,M10 x 1.5, Cl 10.9

8шт.

6

402168A1

CHANNEL

Wire Guard

1шт.

7

NSS

NOT SOLD SEPARAT

Marker Light Assembly, Refer To 55.404.07

2шт.

8

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

2шт.

9

86625003

BOLT,Hex, M8 x 50mm, Cl 10.9

2шт.

10

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

6шт.

11

832-10408

NUT,M8 x 1.25, Cl 8.8

4шт.

12

297221A1

DECAL

Red - Retroreflective

4шт.

13

297223A1

DECAL

Yellow - Retroreflective

4шт.

14

248-2399

GROMMET,3/8" ID x 1" Groove Dia, Str Cut

2шт.

15

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

4шт.

16

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

4шт.

17

832-10412

NUT,M12 x 1.75, Cl 8

4шт.

18

87520424

HARNESS

Marker Light

1шт.

19

402164A2

BRACKET

Support

2шт.

20

627-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

4шт.
