Запчасти Case IH STEIGER 500 (88.055.11) - DIA KIT - GROUND SPEED RADAR (88) - ACCESSORIES

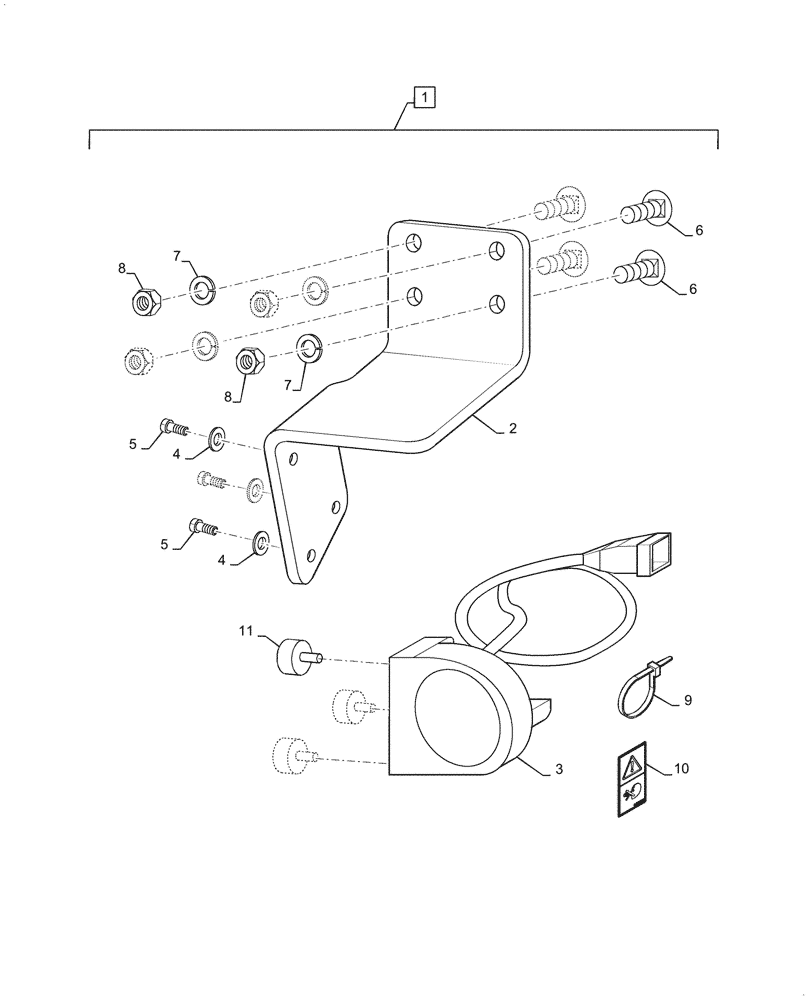

Схема запчастей Case IH STEIGER 500 - (88.055.11) - DIA KIT - GROUND SPEED RADAR (88) - ACCESSORIES
8
4
10
7
5
6
8
3
5
2
7
9
1
4
11
6

Артикул

Название

Примечание

Количество

1

84148675

KIT

Ground Speed Radar, Incl 2 - 10, Refer To 55.424.01

1шт.

1

84148676

KIT

Ground Speed Radar, UK Only, Incl 2 - 10, Refer To 55.424.01

1шт.

2

84243107

BRACKET, SUPPORTING

Bracket, Ground Speed Radar Support

1шт.

3

87733890

SENSOR

Ground Speed Radar

1шт.

3

87733890R

REMAN-SENSOR

STEIGER 500, STEIGER 550, STEIGER 600, QUADTRAC® 450, QUADTRAC® 500, QUADTRAC® 550, QUADTRAC® 600, All 4WD TRACTOR, Ground Speed Radar (4/11-)

1шт.

3

87733890C

CORE-SENSOR

Return Number

1шт.

3

84225080

SENSOR

Ground Speed Radar, UK Only

1шт.

4

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

3шт.

5

627-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 10.9, Full Thd

3шт.

6

811-12040

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 40mm, Cl 8.8

4шт.

7

892-11012

LOCK WASHER,M12

4шт.

8

829-1412

NUT,M12, Cl 10.9

4шт.

9

435437A1

CABLE TIE,3/16" x 7 1/4"

3шт.

10

84270897

DECAL

Radar Warning

1шт.

11

48046040

RUBBER MOUNTING

Bushing

3шт.

Выбрано товаров: 15
