Запчасти Case IH STEIGER 500 (88.055.07) - DIA KIT - AUTO GUIDANCE READY (88) - ACCESSORIES

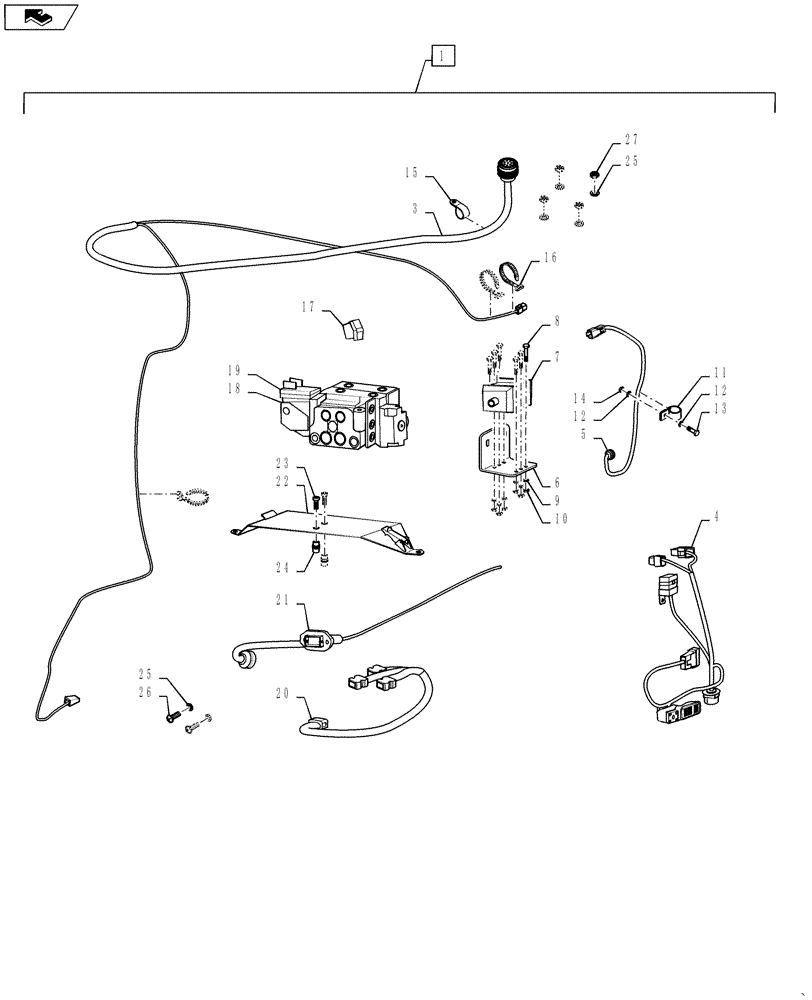

Схема запчастей Case IH STEIGER 500 - (88.055.07) - DIA KIT - AUTO GUIDANCE READY (88) - ACCESSORIES
25
12
6
5
8
26
3
11
27
21
25
16
1
4
23
10
home
18
17
13
24
19
9
7
14
15
22
20
12

Артикул

Название

Примечание

Количество

1

84303550

KIT

Auto Guidance Ready, Incl 2 - 26, Refer To 41.930.01, 55.911.03, & 55.912.01

1шт.

2

84303551

INSTRUCTION

Installation, Not Illustrated

1шт.

3

84198788

HARNESS

Auto Guide, Row Crop

1шт.

4

84256846

HARNESS

Ag Cab

1шт.

5

87743200

HARNESS

Jumper, 24 inch AutoSense

1шт.

6

84209365

BRACKET

Autoguidance Sensor

1шт.

7

87743199

MODULE

AutoSence

1шт.

8

864-4016

HEX SOC SCREW,M4 x 16mm, Cl 8.8

6шт.

9

895-11004

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

6шт.

10

832-46404

NUT,M4 x .7, Cl 8

6шт.

11

515-2348

CLAMP,4.8mm ID, 10.3mm Bolt Hole, P Type

1шт.

12

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

13

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

14

832-10408

NUT,M8 x 1.25, Cl 8.8

1шт.

15

515-22127

CLAMP,1/2", Insul, 5/16" Bolt

Clamp

1шт.

16

435437A1

CABLE TIE,3/16" x 7 1/4"

7шт.

17

87711789

AUTO GUIDANCE DISENG

1шт.

18

87540543

MODULE

PVES Priority Valve

1шт.

19

87540544

VALVE

Shuttle Priority, (qty. 2)

1шт.

20

84258905

HARNESS

Harness, Antenna Roof

1шт.

21

84258907

HARNESS

Harness

1шт.

22

NSS

NOT SOLD SEPARAT

Bracket, Antenna Mounting, Refer To 55.911.03

1шт.

23

843-1516

SCREW,Flat , M5 x 16mm, Cl 4.8

1шт.

24

451165A1

THREADED INSERT

1шт.

25

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

26

840-1616

SCREW,Pan, M6 x 16mm, Cl 4.8

2шт.

27

832-10406

NUT,M6 x 1, Cl 8

4шт.

Выбрано товаров: 27
