Запчасти Case IH STEIGER 500 (88.055.05) - DIA KIT - ISO 11783 READY (88) - ACCESSORIES

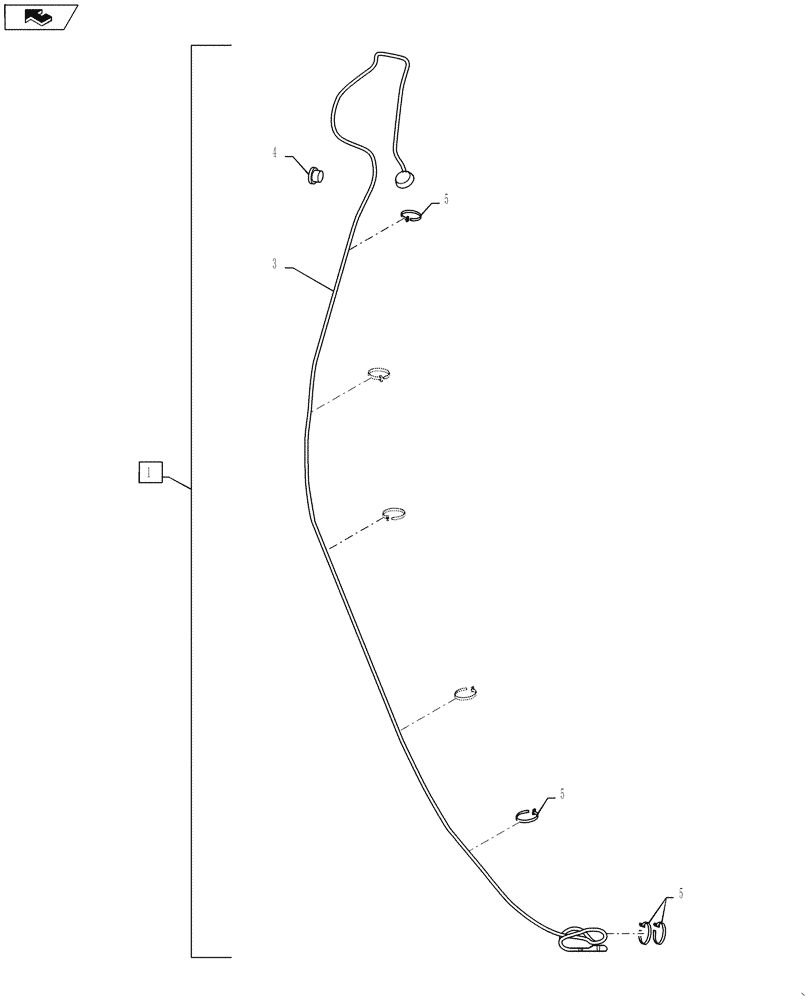

Схема запчастей Case IH STEIGER 500 - (88.055.05) - DIA KIT - ISO 11783 READY (88) - ACCESSORIES
3
5
4
home
5
1
5

Артикул

Название

Примечание

Количество

1

84302152

KIT

DIA Kit - ISO 11783 Ready, Incl 2 - 22, Refer To 55.440.13 & 55.911.03

1шт.

2

84198786

HARNESS

ISO 11783 Chassis

1шт.

3

84198808

HARNESS

ISO 11783 Cab

1шт.

4

87522416

ELEC CONNECTOR,Female, 5 Cavities

ISO BUS Breakaway

1шт.

5

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

10шт.

6

864-6025

HEX SOC SCREW,M6 x 25mm, Cl 8.8

4шт.

7

832-10406

NUT,M6 x 1, Cl 8

4шт.

8

86989612

ECU

Gateway Controller Assembly

1шт.

8

86989612R

REMAN-MODULE

Reman for New PN 86989612

1шт.

8

86989612C

CORE-MODULE

Return Number

1шт.

8

84473221R

REMAN-MODULE

QUADTRAC® 600,QUADTRAC® 500,QUADTRAC® 450,STEIGER 500,STEIGER 600,STEIGER 550 ALL (4/11-), Reman For New P/N 86989612

1шт.

8

84473221C

CORE-MODULE

Return Number

1шт.

9

406450A1

FASTENER

2шт.

10

515-22190

CLAMP,3/4", Insul, 5/16" Bolt

1шт.

11

L18331

CABLE TIE,375.9mm L, Nylon, Black

8шт.

12

84258905

HARNESS

Harness, Antenna, Roof

1шт.

13

84258907

HARNESS

Harness, Antenna, Sub Roof

1шт.

14

NSS

NOT SOLD SEPARAT

Bracket, Antenna Mounting, Refer To 55.911.03

1шт.

15

843-1516

SCREW,Flat , M5 x 16mm, Cl 4.8

1шт.

16

451165A1

THREADED INSERT

1шт.

17

840-1616

SCREW,Pan, M6 x 16mm, Cl 4.8

2шт.

18

515-24190

CLAMP,3/4", Insul, 7/16" Bolt

1шт.

19

614-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

1шт.

20

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

21

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

22

440567A1

CABLE TIE

Tie, 20

3шт.

Выбрано товаров: 26
