Запчасти Case IH STEIGER 500 (88.055.04) - DIA KIT - ELECTRIC MIRRORS - EXTERIOR (88) - ACCESSORIES

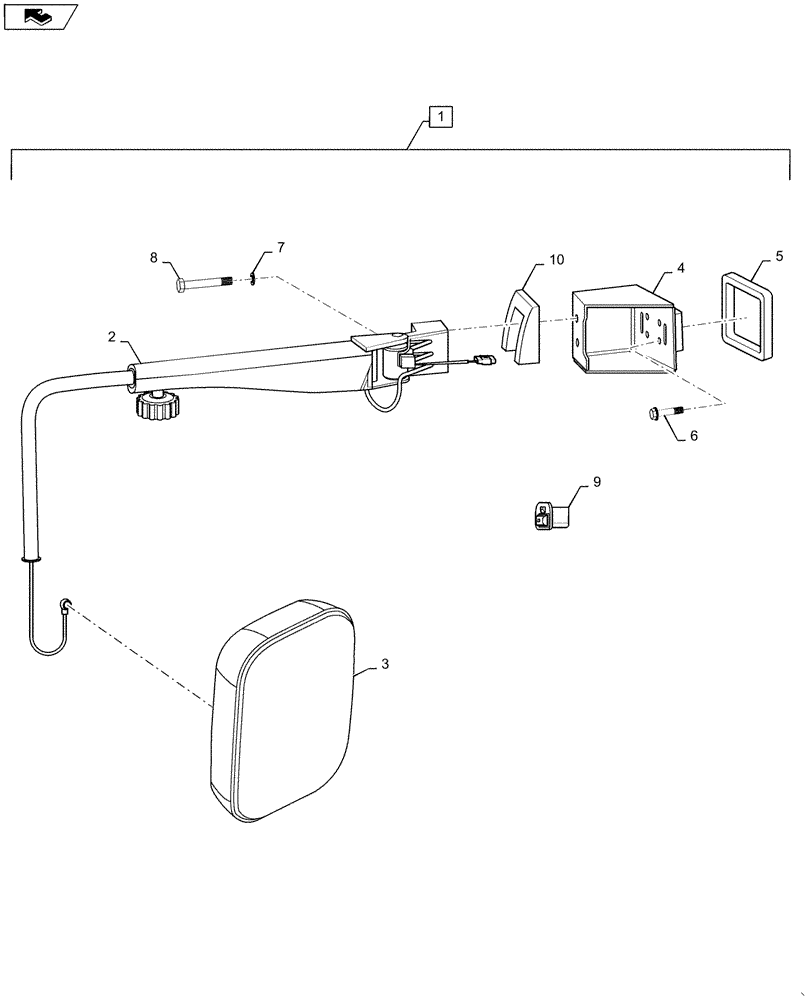

Схема запчастей Case IH STEIGER 500 - (88.055.04) - DIA KIT - ELECTRIC MIRRORS - EXTERIOR (88) - ACCESSORIES
1
home
2
5
10
8
6
4
7
3
9

Артикул

Название

Примечание

Количество

1

84312991

KIT

Electric Mirror Kit, Exterior, Incl 2 - 13, Refer To 55.510.06

1шт.

2

87363082

ARM

Mirror, Electric, RH, Not Illustrated

1шт.

2

87363077

ARM

Mirror, Electric, LH

1шт.

3

87363066

MIRROR,238mm x 328mm

Electric

2шт.

4

84307672

BRACKET

Mirror

2шт.

5

84401325

FOAM INSULATION

Seal, Mirror

2шт.

6

854-10050

BOLT,Hvy Hex, M10 x 50mm, Cl 10.9

8шт.

7

896-19012

WASHER,M12 x 24.5 x 3, HT

4шт.

8

514-865

BOLT,Hex, M12 x 1.75 x 80mm, Cl 10.9

4шт.

9

82037339

SWITCH ASSY

1шт.

10

84416211

FOAM INSULATION

Mirror

2шт.

Выбрано товаров: 11
