Запчасти Case IH STEIGER 500 (88.055.02) - DIA KIT - BACKUP ALARM (88) - ACCESSORIES

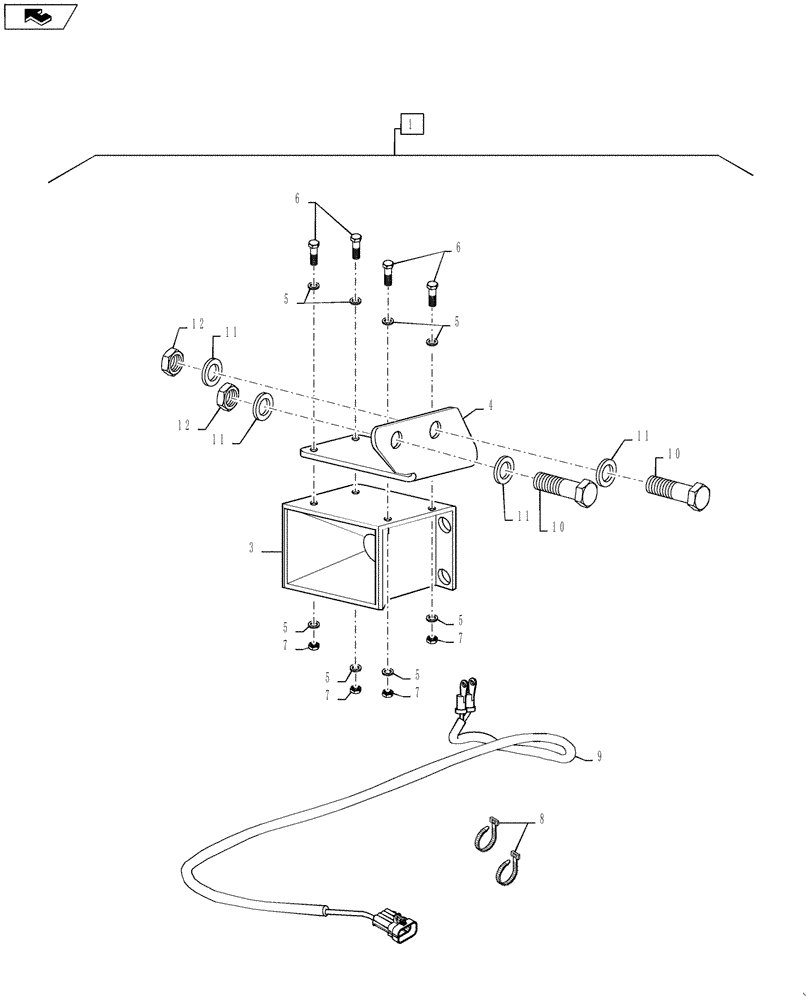

Схема запчастей Case IH STEIGER 500 - (88.055.02) - DIA KIT - BACKUP ALARM (88) - ACCESSORIES
6
9
1
12
11
8
12
5
4
11
7
10
11
5
7
5
10
5
5
home
3
7
7
11
5
6

Артикул

Название

Примечание

Количество

1

84299370

KIT

Backup Alarm, Incl 2 - 15, Refer To 55.408.01

1шт.

2

47751618

INSTRUCTION

Backup Alarm

1шт.

3

D121972

ALARM

Backup

1шт.

4

84195225

BRACKET

Backup Alarm

1шт.

5

896-11006

WASHER,6.6mm ID x 12.5mm OD x 2mm Thk

8шт.

6

627-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd

4шт.

7

829-1406

NUT,Hex, M6 x 1, Cl 10.9

4шт.

8

22-824

CABLE TIE,3/16" x 7 1/4"

2шт.

9

391364A1

HARNESS

Backup Alarm

1шт.

10

87022684

BOLT,Hex, M12 x 45mm, Cl 10.9

2шт.

11

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

4шт.

12

832-10412

NUT,M12 x 1.75, Cl 8

2шт.

13

43248

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9

Not Illustrated

2шт.

14

829-1410

NUT,M10 x 1.5, Cl 10.9

Not Illustrated

2шт.

15

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

Not Illustrated

4шт.

Выбрано товаров: 15
