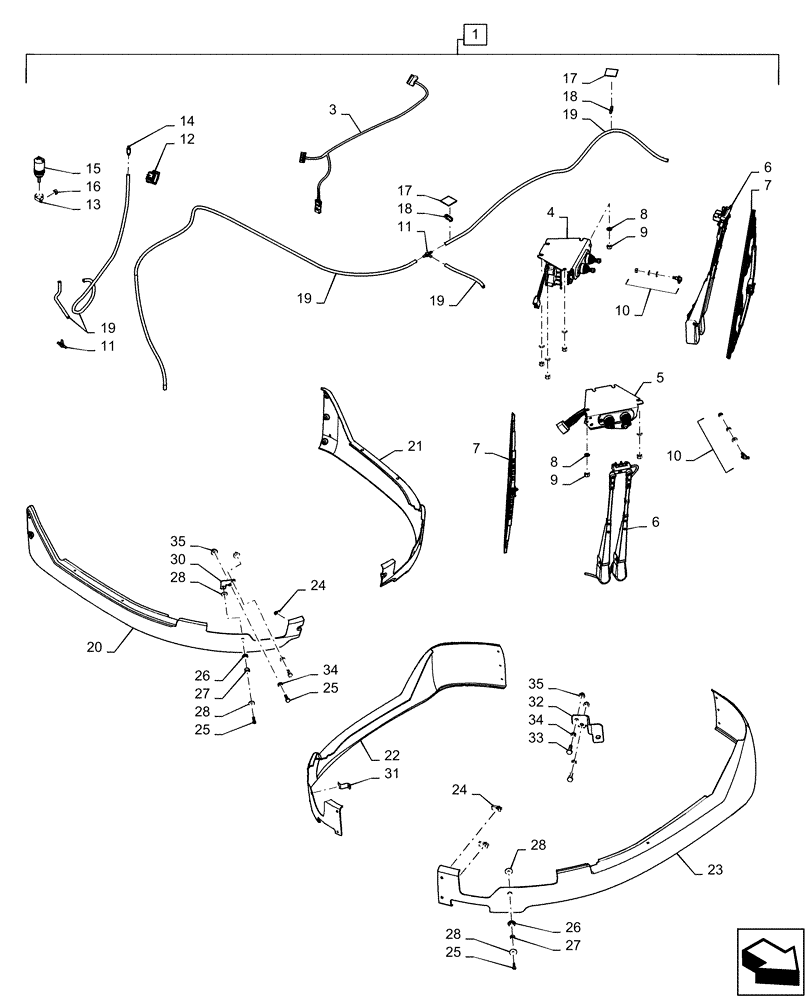

Запчасти Case IH STEIGER 500 (88.055.01) - DIA KIT - LOWER FRONT WIPERS (88) - ACCESSORIES

1

84420722

SERVICE KIT

DIA, Lower Front Wipers, Incl 2 - 35

1шт.

2

84545544

INSTRUCTION

Installation Instructions, Not Illustrated

1шт.

3

84386884

WIRE HARNESS

Lower Front Wipers, Refer To 55.100.18

1шт.

4

84386864

WIPER MOTOR,12V

RH, Front Lower

1шт.

5

84386863

WIPER MOTOR,12V

LH, Front Lower

1шт.

6

84211824

WIPER ARM,Dual, 500mm L

20 Inch Dual

2шт.

7

84394223

WIPER

Front, 26 Inch (650 mm)

2шт.

8

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

8шт.

9

832-10408

NUT,M8 x 1.25, Cl 8.8

8шт.

10

322650A1

HYD CONNECTOR

Washer Bulkhead

2шт.

11

31-2363

TEE

Fitting

1шт.

12

86989939

WINDSHIELD WIPER SWI

1шт.

13

515-24349

CLAMP,1 3/8", Insul, 7/16" Bolt

1шт.

14

84037530

VALVE

1шт.

15

1964696C2

PUMP

Washer

2шт.

16

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

17

22-823

MOUNT

Mount

2шт.

18

22-824

CABLE TIE,3/16" x 7 1/4"

9шт.

19

398714A1

HOSE,4.78 mm ID x 5181.60 mm

Wiper System

1шт.

20

84384348

SKIRT COVER

RH, Luxury

1шт.

21

84384347

SKIRT COVER

LH, Luxury

1шт.

22

84384338

SKIRT COVER

RH, Luxury, Suspended Cab

1шт.

23

84384339

SKIRT COVER

LH, Luxury, Suspended Cab

1шт.

24

404882A1

SPRING NUT,M6

Nut, M6 Spring

4шт.

25

840-1625

SCREW,Pan, M6 x 25mm, Cl 4.8

2шт.

26

60-6840T1

GROMMET,1/2" ID x 3/4" OD

Rubber, 0.5 ID Split

2шт.

27

60-5021T1

SPACER,0.282" ID x 0.500" OD x 0.312" Thk

2шт.

28

895-15006

WASHER,6.6mm ID x 25mm OD x 1.6mm Thk

4шт.

29

84386876

BRACKET

LH Front Skirt Mounting, Not Illustrated

1шт.

30

84386877

BRACKET

RH Front Skirt Mounting

1шт.

31

84386880

BRACKET

RH Front Skirt Mounting, Suspended Cab

1шт.

32

84386878

BRACKET

LH Front Skirt Mounting, Suspended Cab

1шт.

33

627-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd

4шт.

34

892-11006

LOCK WASHER,M6

4шт.

35

825-2406

FLANGE NUT,M6 x 1, Cl 8.8

4шт.
