Запчасти Case IH STEIGER 500 (88.037.04) - DIA KIT - FRONT BUMPER BALLAST W/ SUITCASE MOUNTS (88) - ACCESSORIES

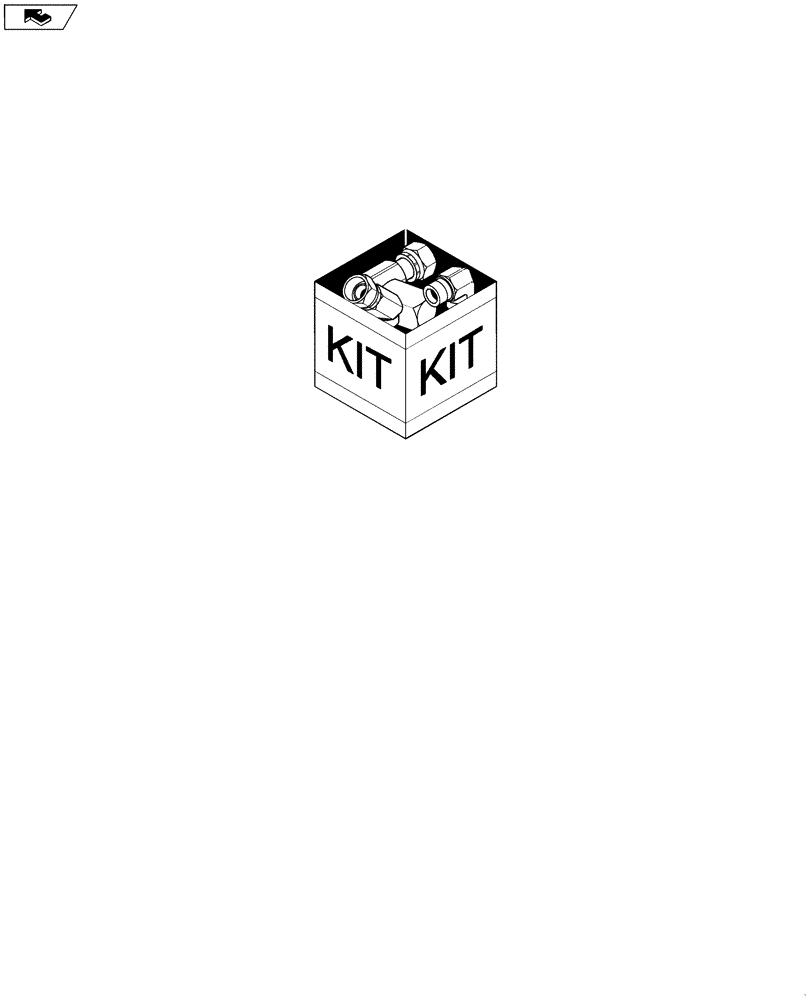

Схема запчастей Case IH STEIGER 500 - (88.037.04) - DIA KIT - FRONT BUMPER BALLAST W/ SUITCASE MOUNTS (88) - ACCESSORIES
home

Артикул

Название

Примечание

Количество

1

84147106

KIT

Front Bumper Ballast W/ Suitcase Weight Mounts, Incl 2 - 12, Refer To 37.140.04

1шт.

2

84185286

BALLAST

Front Bumper W/ Suitcase Weight Mounts

1шт.

3

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

22шт.

4

827-20160

BOLT,Hex, M20 x 2.5 x 160mm, Cl 10.9

8шт.

5

829-1420

NUT,M20, Cl 10

8шт.

6

84206433

MOUNT

Ballast Side Plate

2шт.

7

627-20060

BOLT,Hex, M20 x 2.5 x 60mm, Cl 10.9, Full Thd

6шт.

8

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

8шт.

9

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

8шт.

10

896-15016

WASHER,17.5mm ID x 34mm OD x 5mm Thk

4шт.

11

84129696

BOLT,Hex, M16 x 380mm, Cl 10.9, Full Thd

M16 X 380 FULL CL 10.9

4шт.

12

229483A2

RETAINER

Clamp Assembly, Front Weight

4шт.

Выбрано товаров: 12
