Запчасти Case IH STEIGER 500 (88.037.03) - DIA KIT - FRONT BUMPER BALLAST W/OUT SUITCASE WEIGHT MOUNTS (88) - ACCESSORIES

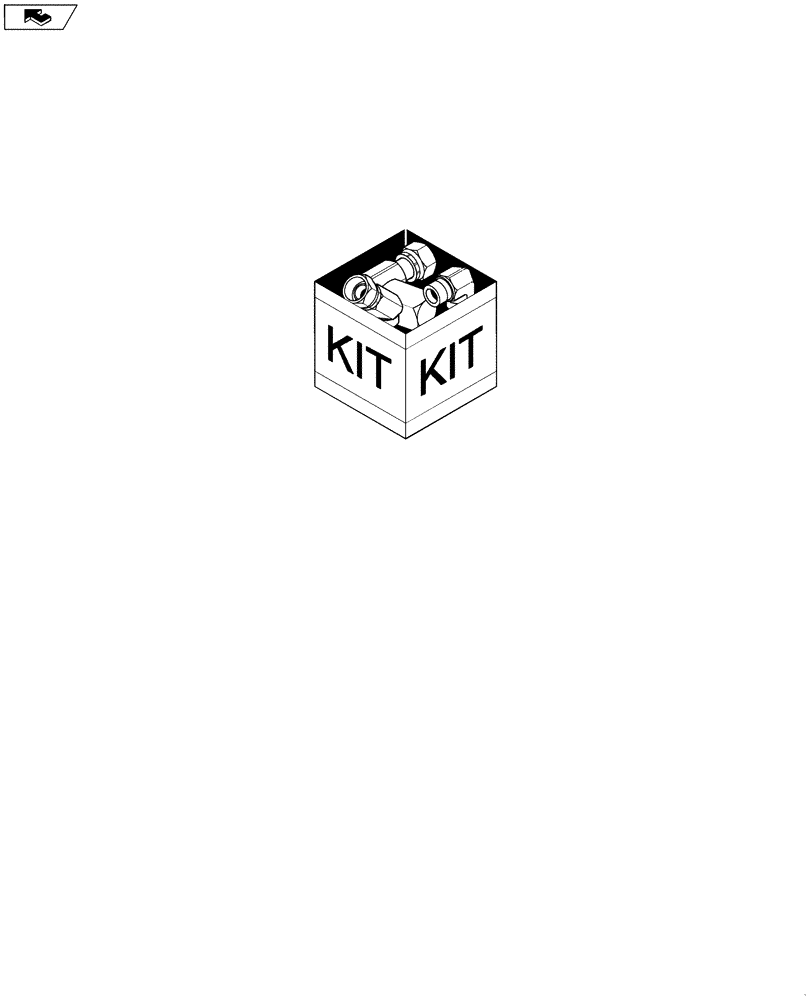

Схема запчастей Case IH STEIGER 500 - (88.037.03) - DIA KIT - FRONT BUMPER BALLAST W/OUT SUITCASE WEIGHT MOUNTS (88) - ACCESSORIES
home

Артикул

Название

Примечание

Количество

1

84147353

KIT

Front Bumper Ballast, No Weights Accepted, Incl 2 - 14, Refer To 37.140.03

1шт.

2

84185284

BALLAST

Front Bumper

1шт.

3

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

16шт.

4

827-20160

BOLT,Hex, M20 x 2.5 x 160mm, Cl 10.9

8шт.

5

829-1420

NUT,M20, Cl 10

8шт.

6

84187145

BRACKET

Tool Box Mounting

2шт.

7

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

8шт.

8

827-12070

BOLT,Hex, M12 x 1.75 x 70mm, Cl 10.9

4шт.

9

832-10412

NUT,M12 x 1.75, Cl 8

4шт.

10

84187148

BRACKET

Tool Box Mounting

2шт.

11

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

28шт.

12

827-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 10.9

6шт.

13

832-10410

NUT,M10 x 1.5, Cl 8

14шт.

14

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

8шт.

Выбрано товаров: 14
