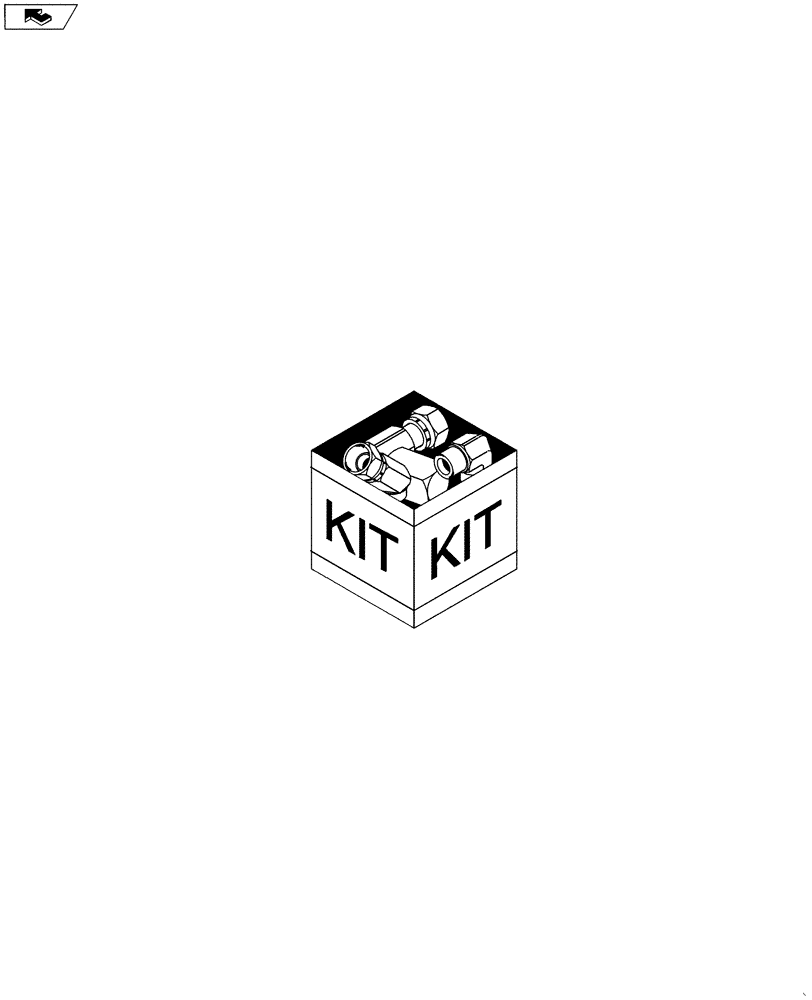

Запчасти Case IH STEIGER 500 (88.035.16) - DIA KIT - IMPLEMENT DEPTH CONTROL KIT (88) - ACCESSORIES

84518921

SERVICE KIT

1шт.

1

84523333

INSTRUCTION

Instructions, Installation

1шт.

2

84511635

WIRE HARNESS

Implement Depth Control - See Figure 55.100.34

1шт.

3

NSS

NOT SOLD SEPARAT

Nylon Tie, 15 IN

15шт.

4

84524485

BRACKET

Implement Connector

1шт.

5

824-1403

NUT,M3, Cl 5

4шт.

6

895-11003

WASHER,3.2mm ID x 7mm OD x 0.5mm Thk

4шт.

7

843-1316

SCREW,Flat , M3 x 16mm, Cl 4.8

4шт.

8

832-10406

NUT,M6 x 1, Cl 8

2шт.

9

864-6030

HEX SOC SCREW,M6 x 30mm, Cl 8.8

2шт.

10

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.
