Запчасти Case IH STEIGER 500 (88.035.12) - DIA KIT - THREE POINT HITCH, W/ ELECTRONIC REMOTES (88) - ACCESSORIES

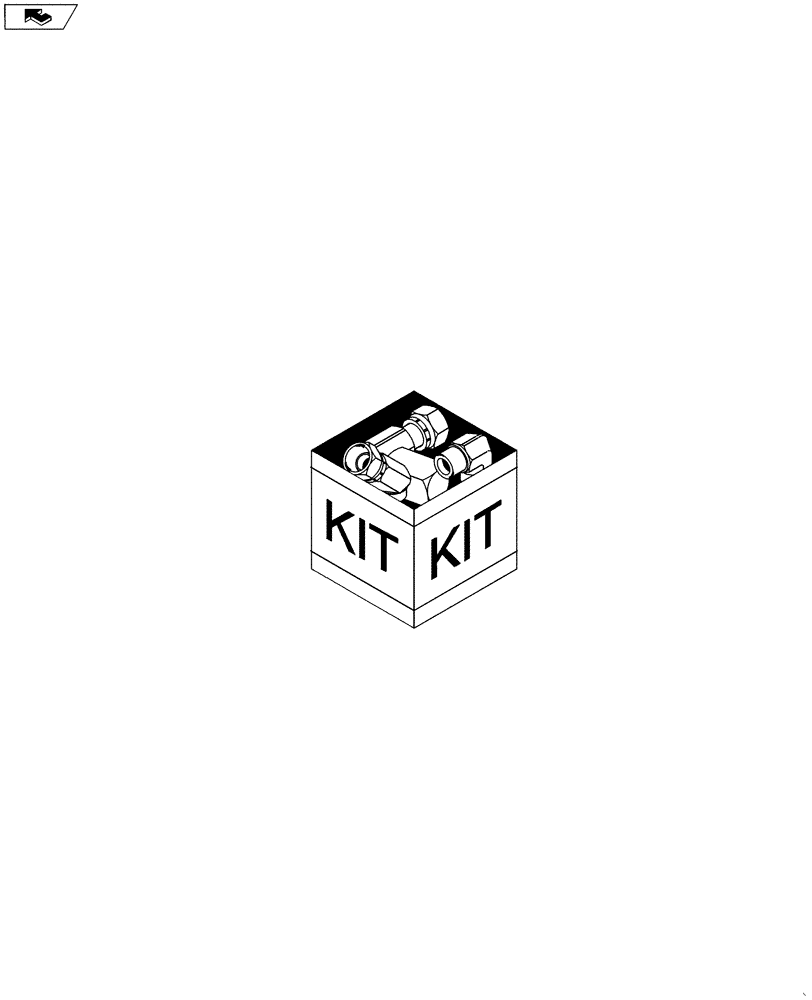

Схема запчастей Case IH STEIGER 500 - (88.035.12) - DIA KIT - THREE POINT HITCH, W/ ELECTRONIC REMOTES (88) - ACCESSORIES
home

Артикул

Название

Примечание

Количество

1

84377441

DIA KIT, TRACTOR

Three Point Hitch, Incl 2 - 34

1шт.

2

NSS

NOT SOLD SEPARAT

TPH Linkage (W/PTO), Refer To 35.120.01

1шт.

3

NSS

NOT SOLD SEPARAT

TPH Plumbing, 4 Spool, Refer To 35.120.08

1шт.

4

84276879

RIGID TUBE

Drain, TPH, 6 Spool

1шт.

5

84276876

RIGID TUBE

Raise, TPH, 6 Spool

1шт.

6

NSS

NOT SOLD SEPARAT

TPH Wiring, Refer To 55.440.11

1шт.

7

NSS

NOT SOLD SEPARAT

Deluxe ICP, Refer To 55.440.03

1шт.

8

402737A2

CONVERSION KIT

Quick Hitch, Refer To 35.120.07

1шт.

9

84493110

MOUNT

Mount, Upper Link W/O PTO

1шт.

10

84276288

BRACKET

Support

1шт.

11

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

12

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

13

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

2шт.

14

84203467

HYD VALVE SECTION

TPH, Refer To 35.204.15

1шт.

15

87635376

O-RING,2.62mm Thk x 3.63mm ID, -105, 80 Duro

3шт.

16

87687049

STUD

Tie, M12 x 1.75 Length 195

1шт.

17

87026184

BOLT,Hex, M12 x 170mm, Cl 10.9

2шт.

18

87604617

STUD,M12 x 1.75 x 235mm L

Tie, M12 x 1.75 Length 235

1шт.

19

84203873

STUD

Tie, M12 x 1.75 Length 245

2шт.

20

84203478

COVER

Hitch Inlet

1шт.

21

87635379

O-RING,2.62mm Thk x 9.19mm ID, -110, 80 Duro

4шт.

22

827-20130

BOLT,Hex, M20 x 2.5 x 130mm, Cl 10.9

4шт.

23

827-20090

BOLT,Hex, M20 x 2.5 x 90mm, Cl 10.9

4шт.

24

832-10424

NUT,M24 x 3, Cl 8

2шт.

25

827-24140

BOLT,Hex, M24 x 3 x 140mm, Cl 10.9

2шт.

26

87725363

PLATE

Drawbar Stop

2шт.

27

829-1420

NUT,M20, Cl 10

4шт.

28

827-20220

BOLT,Hex, M20 x 2.5 x 220mm, Cl 10.9

4шт.

29

896-15020

WASHER,22mm ID x 44mm OD x 5mm Thk

8шт.

30

87564454

SPACER

Drawbar

2шт.

31

87746694

WEAR PAD

1шт.

32

87564455

PLATE

Drawbar Wear

1шт.

33

87567060

PLATE

Drawbar Bottom

1шт.

34

87496186

HYD VALVE SECTION

Auxiliary Valve, Main, Refer To 35.204.13

1шт.

34

47434186R

REMAN-HYD VALVE

Reman For New PN 87496186

1шт.

34

47434186C

CORE-VALVE HYD

Return Number

1шт.

35

87635382

O-RING,2.62mm Thk x 20.29mm ID, -117, 80 Duro

1шт.

Выбрано товаров: 37
