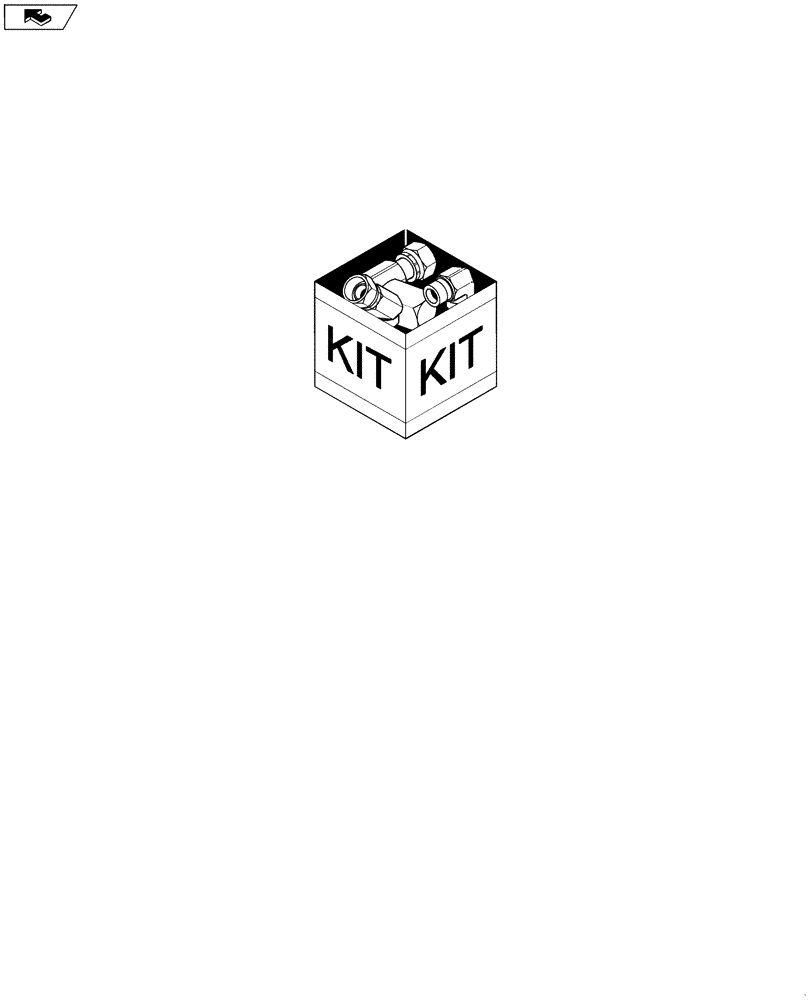

Запчасти Case IH STEIGER 500 (88.035.11) - DIA KIT - 2ND CASE DRAIN (88) - ACCESSORIES

1

84386915

DIA KIT, TRACTOR

2nd Case Drain

1шт.

2

84244562

HOSE ASSY.,12.7mm ID x 1721mm L, SAE 100R1

Auxiliary Drain, QuadTrac

1шт.

3

84281577

HOSE ASSY.,12.7mm ID x 2032mm L, SAE 100R1

Auxiliary Drain

1шт.

4

R54363

CLAMP

Double

2шт.

5

515-23206

CLAMP,13/16", Insul, 3/8" Bolt

1шт.

6

700-420

TEE,1" - 14 Male ORFS x 1" - 14 Male ORFS x M22 x 1.5 Male ORB

1шт.

7

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

3шт.

8

86539389

DUST CAP,29.2mm ID

Plug, Rubber

1шт.

9

385357A1

COUPLING

Female Disconnect

1шт.

10

701-903

NUT,13/16" - 16

1шт.

11

436249A1

FITTING

Bulkhead, 3/4 - 16 ORB x 13/16 - 14 ORFS

1шт.

12

84386919

BRACKET

2nd Case Drain Support

1шт.

13

385358A1

QUICK MALE COUPLING,3/8"

3/8"

1шт.
