Запчасти Case IH STEIGER 500 (88.035.10) - DIA KIT - AUXILIARY PUMP DRIVE (88) - ACCESSORIES

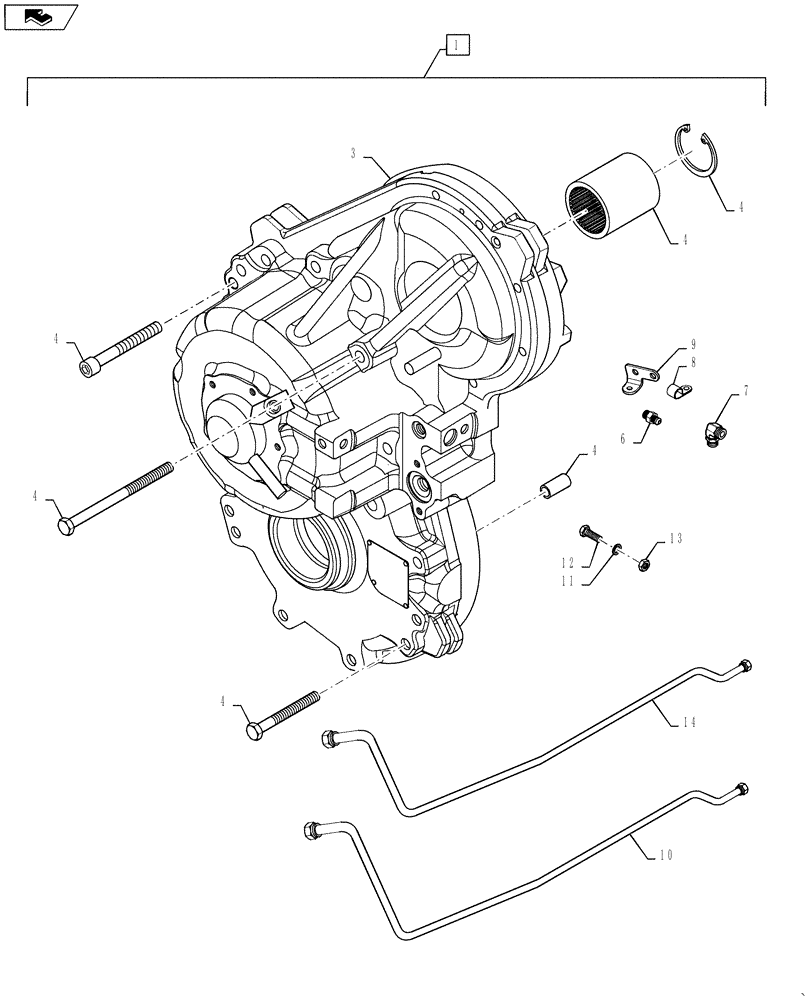

Схема запчастей Case IH STEIGER 500 - (88.035.10) - DIA KIT - AUXILIARY PUMP DRIVE (88) - ACCESSORIES
10
7
9
4
13
3
home
4
14
4
4
4
4
8
6
11
1
12

Артикул

Название

Примечание

Количество

1

84366432

KIT

Auxiliary Pump Drive

1шт.

2

84317512

TRANSMISSION

PTO. Clutch Aux Drive Only, Refer To 14.102.02(01)

1шт.

3

84211194

KIT

PTO Mounting, Refer To 14.102.01

1шт.

4

700-102

HYD CONNECTOR,13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

1шт.

5

700-305

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

1шт.

6

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

1шт.

7

84283861

BRACKET

PTO Clutch Tube Support

1шт.

8

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

9

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

1шт.

10

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

11

84283540

HYD TUBE

PTO Clutch Lube, PS4 Transmission

1шт.

12

84283544

HYD TUBE

PTO Clutch Lube, PS6 Transmission

1шт.

Выбрано товаров: 12
