Запчасти Case IH STEIGER 500 (88.035.09) - DIA KIT - HYDRAULIC REMOTE OIL DRAIN BOTTLE (88) - ACCESSORIES

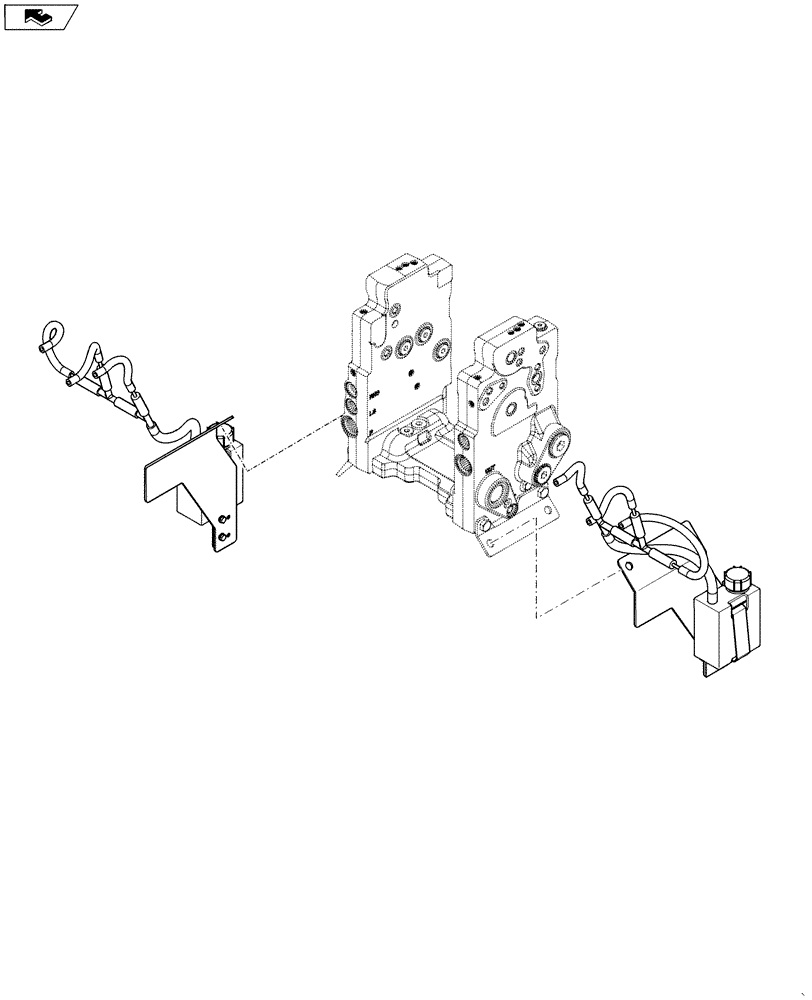

Схема запчастей Case IH STEIGER 500 - (88.035.09) - DIA KIT - HYDRAULIC REMOTE OIL DRAIN BOTTLE (88) - ACCESSORIES
home

Артикул

Название

Примечание

Количество

1

84147634

KIT

Hydraulic Remote Oil Drain Bottles, Incl 2 - 17

1шт.

2

87757805

BRACKET

Right Drain Bottle

1шт.

3

87757804

BRACKET

Left Drain Bottle

1шт.

4

280909A1

SUPPORT

Bottle

2шт.

5

242278A1

BOTTLE,0.6L

Spillage Bottle

2шт.

6

248632A1

TEE,3/8" Hose Barb x 3/8" Hose Barb x 3/8" Hose Barb

3/8 ID Hose, Barbed

6шт.

7

400192A1

REDUCER FITTING

8шт.

8

390427A1

HOSE,9.5mm ID x 50mm L

-06, L=50, Cut To Length From A21562X Bulk Hose

12шт.

9

400238A1

HOSE

-04, L=135

6шт.

10

400238A1

HOSE

-04, L=275

2шт.

11

31-1208

HOSE,0.38" ID x 12.00"

-06, L=304.8

2шт.

12

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

8шт.

13

627-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd

4шт.

14

829-1406

NUT,Hex, M6 x 1, Cl 10.9

4шт.

15

417833A2

BRACKET

Mount

1шт.

16

417835A2

BRACKET

Mount

1шт.

17

446941A1

HOSE,9.5mm ID x 127mm L

ID=9.5, L=127

2шт.

Выбрано товаров: 17
